6 1/2´´ autowoofer - SP-167C MONACOR
search
  • 6 1/2´´ autowoofer - SP-167C MONACOR
  • 6 1/2´´ autowoofer - SP-167C MONACOR

MONACOR 6 1/2´´ autowoofer - SP-167C

219,00 kr.
Inkl. moms

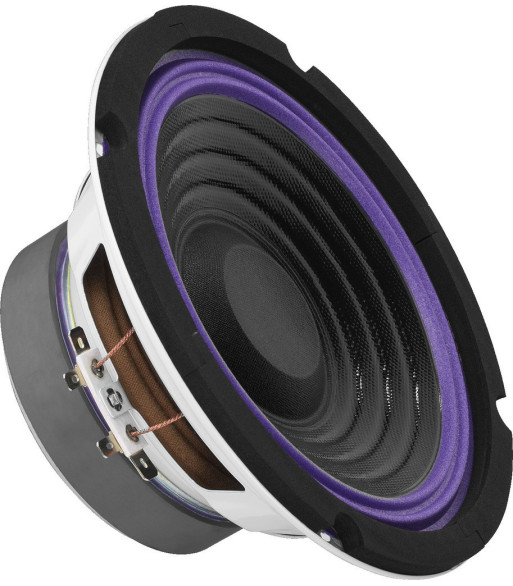

Car hi-fi bass-midrange speaker, 50 W, 4 _
  • 16 cm (6½") bass-midrange speaker
  • Coated cone
  • Also suitable as a bass addition for free air applications
  • Protruding lower pole plate for a long excursion
Antal
På fjernlager

Ref: SP-167C

Impedance (Z) 4 _
Line technique -

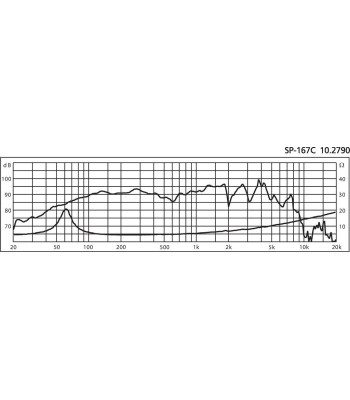

Frequency range f3-5,500 Hz
Resonant frequency (fs) 49 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,000 Hz
Power rating 50 W
Peak music power output 100 W
Sensitivity 91 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 0.84 mm/N
Moving mass (Mms) 12g
Mech. Q factor (Qms) 2.89
Electr. Q factor (Qes) 0.45
Total Q factor (Qts) 0.39
Equivalent volume (Vas) 22 l
DC resistance (Re) 3.7 _
Force factor (BxL) 5.6 Tm
Voice coil induct. (Le) 0.2 mH
Voice coil diameter 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4 mm
Eff. cone area (Sd) 137 cm2
Magnet weight 570 g
Magnet diameter 100 mm
Mounting cutout Ø 148 mm
Mounting depth 80 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 170 mm
Outside diameter -
Width -
Height -
Depth -
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 1.15 kg
Sales unit 1
Type of speaker 6.5"
SP-167C
