. CC Pro Shop 5 1/4´´ højttaler - SPH-135KEP NUMBER ONE .
5 1/4´´ højttaler - SPH-135KEP NUMBER ONE
search
  • 5 1/4´´ højttaler - SPH-135KEP NUMBER ONE
  • 5 1/4´´ højttaler - SPH-135KEP NUMBER ONE

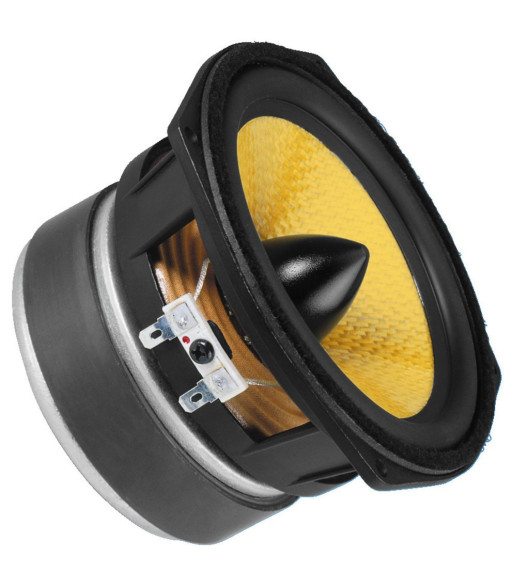

MONACOR 5 1/4´´ højttaler - SPH-135KEP

719,00 kr.
Inkl. moms
Hi-fi bass-midrange speaker, 50 W, 8 _
  • Kevlar cone
  • Phase plug
  • Also to be used as a bass-midrange speaker in small bookshelf speaker systems providing a deep bass reproduction
  • Optimum sound source for the entire vocal range above 200 Hz
Antal
På fjernlager

Ref: SPH-135KEP

Impedance (Z) 8 _
Line technique -

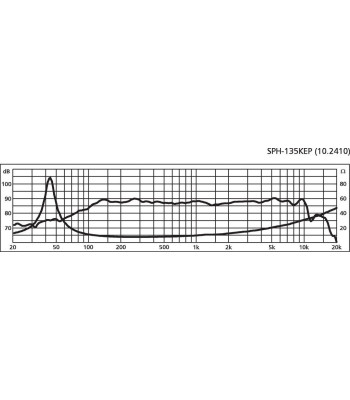

Frequency range f3-10,000 Hz
Resonant frequency (fs) 45 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 50 W
Peak music power output 80 W
Sensitivity 89 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 1.23 mm/N
Moving mass (Mms) 10 g
Mech. Q factor (Qms) 5.54
Electr. Q factor (Qes) 0.32
Total Q factor (Qts) 0.30
Equivalent volume (Vas) 15.5 l
DC resistance (Re) 6 _
Force factor (BxL) 7.5 Tm
Voice coil induct. (Le) 0.75 mH
Voice coil diameter Ø 35.5 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 3.25 mm
Eff. cone area (Sd) 95 cm2
Magnet weight 550 g + 17 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 122 mm
Mounting depth 71 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 133 x 133 x 75 mm
Outside diameter -
Width 133 mm
Height 133 mm
Depth 75 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 1.62 kg
Sales unit 1
Type of speaker
NUMBER ONE
SPH-135KEP
