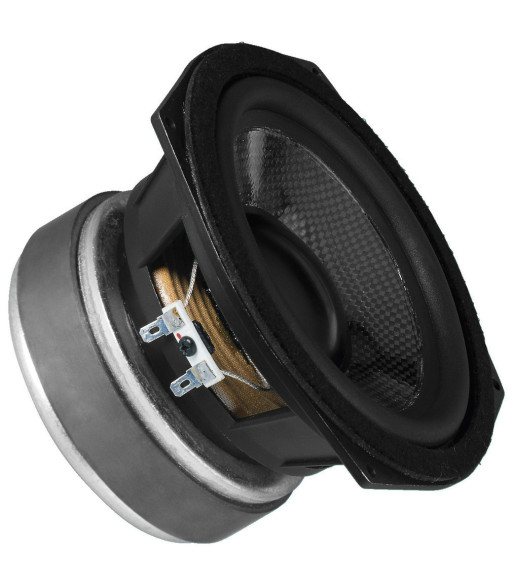

MONACOR 6 1/2´´ højttaler - SPH-165CP

1.069,00 kr.
Inkl. moms
High-performance hi-fi bass-midrange speaker, 80 W, 8 _
  • Extra large voice coil (Ø 50 mm)
  • Parameters for a deep bass reproduction
  • Extra long excursion
  • Bass speaker for interesting dual arrangements in very slim 3-way high-power speaker systems and for 2-way bookshelf speakers of high power capability
HOBBY HiFi 04/2017
"Requires 13 to 18 litres only. However, still provides an incredibly deep bass reproduction down to almost 30 Hz."
Antal
På fjernlager

Ref: SPH-165CP

Impedance (Z) 8 _
Line technique -
Frequency range f3-6,000 Hz
Resonant frequency (fs) 30 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 80 W
Peak music power output 120 W
Sensitivity 89 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 1.71 mm/N
Moving mass (Mms) 17 g
Mech. Q factor (Qms) 4.85
Electr. Q factor (Qes) 0.33
Total Q factor (Qts) 0.31
Equivalent volume (Vas) 38 l
DC resistance (Re) 6 _
Force factor (BxL) 7.6 Tm
Voice coil induct. (Le) 0.7 mH
Voice coil diameter Ø 50 mm
Voice coil former glass fibre
Linear excursion (XMAX) ± 4.75 mm
Eff. cone area (Sd) 127 cm2
Magnet weight 840 g + 50 g
Magnet diameter Ø 120 mm
Mounting cutout Ø 142 mm
Mounting depth 86 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 165 x 165 x 90 mm
Outside diameter -
Width 165 mm
Height -
Depth 90 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 2.57 kg
Sales unit 1
Type of speaker
NUMBER ONE
SPH-165CP
