Bånddiskant - RBT-1000 Monacor
search
  • Bånddiskant - RBT-1000 Monacor
  • Bånddiskant - RBT-1000 Monacor

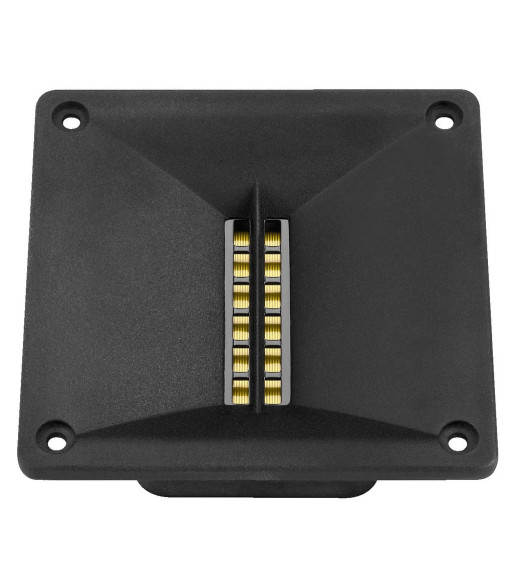

MONACOR Bånddiskant - RBT-1000

909,00 kr.
Inkl. moms
Ribbon tweeter for PA and hi-fi, 40 W, 6 _
  • Magnetostatic speaker with waveguide
  • Tweeter system from the L-RAY/1000
  • Fine and brilliant reproduction of the high range
  • For use from 3,000 Hz (hi-fi) or 4,000 Hz (PA) on via 18 dB filter
  • Diecast aluminium horn front attachment, neodymium magnet
  • Vertical or horizontal mounting possible due to square front panel
Antal
På fjernlager

Ref: RBT-1000

Impedance (Z) 6 _
Line technique -
Frequency range fx-22,000 Hz
Resonant frequency (fs) 1.6 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) > 2,500 Hz
Power rating 40 W
Peak music power output 80 W
Sensitivity 96 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter magnetostatic speaker
Mounting cutout 94 x 94 mm
Mounting depth 34 mm
Mounting hole diameter -
Hole spacing X-axis 87 mm
Hole spacing Y-axis 87 mm
Dimensions 104 x 104 x 24 mm
Outside diameter -
Width 104 mm
Height 104 mm
Depth 24 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 237 g
Sales unit 1
Type of speaker
RBT-1000
