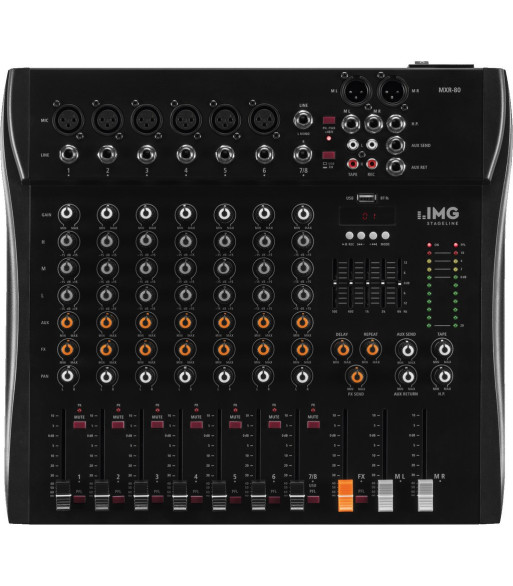

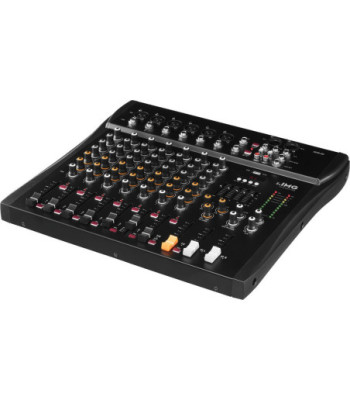

IMG STAGELINE Mixer 8 kanal - MXR-80

1.869,00 kr.
Inkl. moms

8-channel audio mixer,
with DSP effect unit, integrated MP3 player and Bluetooth receiver.

  • Integrated USB audio interface (will be identified and addressed as an external sound card)
  • Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
  • 6 mono input channels with gain control, 3-way equalizer and pan pot
  • 1 stereo input channel with 3-way equalizer and balance control
  • MP3 player
  • USB interface
  • Bluetooth receiver
  • DSP delay, adjustable
  • Adjustable aux return input and FX send output
  • Tape record/play connections
  • 5-band stereo graphic equalizer
  • +48 V phantom power, can be activated as required
  • Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
  • Stereo LED level display


Available as of June 2020

Antal
På fjernlager

Ref: MXR-80

Input channels 8
Number of mix/mono 6
No. of channels -
No. of inputs -
Mic input 2.2 mV, bal. 8 x XLR
Line input 50 mV (stereo), 1 x 6.3 mm jack L/R

30 mV (mono), 8 x 6.3 mm jack
CD input -
Phono input -
Tape (play) 290 mV, 1 x RCA L/R
Aux input 420 mV, 1 x 6.3 mm jack L/R
Insert input -
Effect return -
Master output 880 mV, bal. 1 x XLR L/R

880 mV, 1 x 6.3 mm jack L/R
Record output -
Monitor output -
Booth output -
Aux output -
Insert output -
Effect send 9 V, 1 x 6.3 mm jack
Control room -
Tape (rec) 400 mV, 1 x RCA L/R
Headphones ? 8 _, 1 x 6.3 mm jack
Gooseneck lamp -
WiFi -
USB yes
Bluetooth yes
Frequency range 20-20,000 Hz
THD < 0.03%
S/N ratio > 82 dBA
Crosstalk -
Equalizer bass ±15 dB/80 Hz
Equalizer midrange ±15 dB/2.5 kHz
Equalizer treble ±15 dB/12 kHz
equalizer 5-band equalizer
Talkover -
Phantom power +48 V
Crossfader -
Media player -
Amplifier -
Power supply _ 230 V/50 Hz/25 VA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 25 VA
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Width 382 mm
Height 53 mm
Depth 340 mm
Rack spaces, RS -
Weight 3.4 kg
IMG STAGELINE
MXR-80
