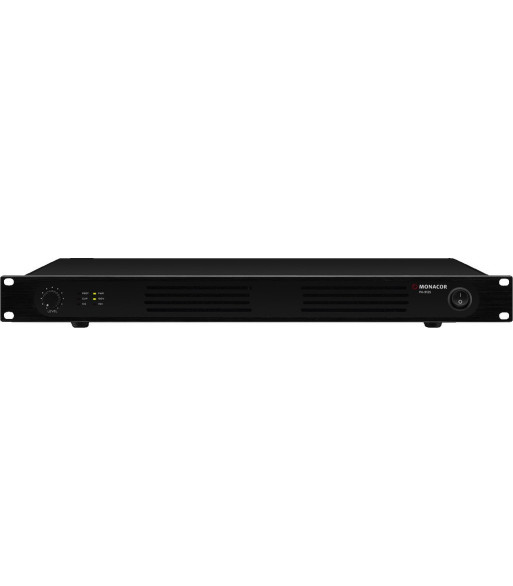

MONACOR 100V effektforstærker 120W - PA-912S

2.579,00 kr.
Inkl. moms

Mono PA power amplifier

  • 1 x 120 W
  • Temperature-controlled fan, continuously adjustable
  • Protected against overheating, overload and short circuit
  • LED indication for clip, protect, overtemperature, output level and 100 V/70 V
  • Feed-through output (link)
  • Speaker outputs via screw terminals

Antal
På fjernlager

Ref: PA-912S

Peak output power -
Power rating 120 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 16 _ -
Power rating at 100 V 1 x 120 W
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Output impedance 70 V/40 _, 100 V/80 _
Channels 1
Zones -
Inputs 670 mV/10 k_, balanced
Attenuation factor -
Frequency range 80-16,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass -
Equalizer midrange -
Equalizer treble -
S/N ratio > 98 dBA
Crosstalk attenuation -
THD < 1%
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 225 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 44 mm
Depth 255 mm
Rack spaces, RS 1
Weight 3.5 kg

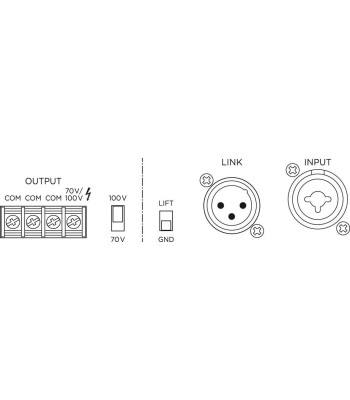

Connections 1 x 6.3 mm/XLR combo (input),

1 x XLR (link),

screw terminals (speakers)
PA-912S
