NEUTRIK CAT6 bøsning IP65 - NE-8FDYC6

339,00 kr.
Inkl. moms

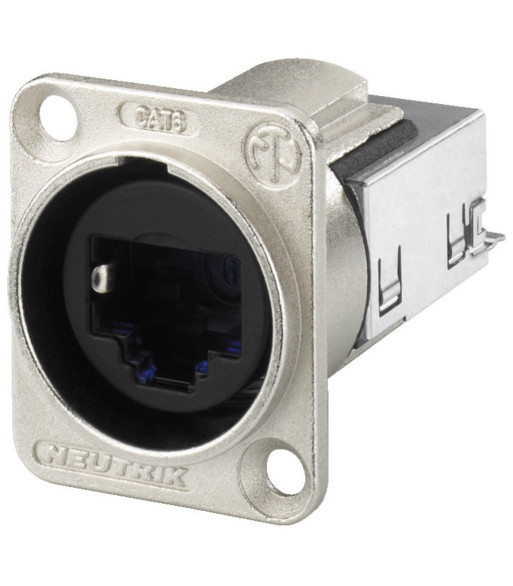

EtherCon panel jacks, for industrial applications and Ethernet cabling on stage.
  • Complies with Cat. 6 requirements according to TIA/EIA and ISO/IEC, data rate up to 10 Gbps
  • Weatherproof
  • RJ45 jack with tool-free and gas-tight insulation displacement connectors (IDC)
  • Shielded system
  • Earthing jumper with selectable grounding option
  • D series standard

NE-8FDYC6 = nickel-plated
NE-8FDYC6B = black
Antal
På fjernlager

Ref: NE-8FDYC6

Type panel jack
Type
Quantity 1
Features insulation displacement connectors (IDC), selectable grounding option, Cat. 6
Colour/colour coding nickel-plated
Power rating
Insulating resistance
Dielectric strength
Certification
Pole number
Cable inlet -
Suitable cable cross section
Connection
Strain relief -
Cable bending protection -
Stereo -
Mono -
Switches -
Material -
Central fixing -
Contact type
No. of contacts
Contact width
Contact distance
Admiss. ambient temp.

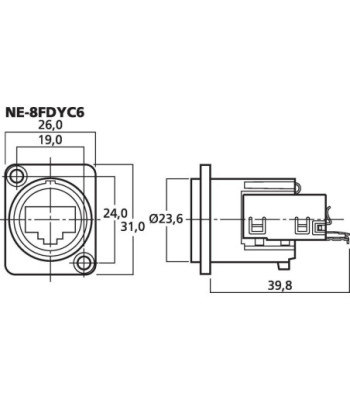

Dimensions 26 x 31 x 39.8 mm
Diameter
Length
Weight 32 g
Other features D series
