IMG STAGELINE Digital forstærker 2x500Wrms - STA-1000D

5.529,00 kr.
Inkl. moms

Den nye generation af class D PA-forstærkere fra IMG STAGELINE imponerer med høj effekt og høj energieffektivitet. Andre fordele som lydløs drift og lav vægt gør denne forstærkerserie velegnet til både faste installationer og mobilt brug.

Digital stereo PA-forstærker

  • Class D teknologi med PASCAL-forstærkermoduler
  • Fremragende akustisk ydeevne
  • Stort dynamikområde med meget lav forvrængning
  • Fremragende impulsgengivelse - også i basområdet
  • 482 mm (19") rack installation, 2 U
  • Lydløs i brug: den temperaturstyrede ventilator aktiveres kun, hvis temperaturen overstiger 85 °C
  • Letvægtsdesign og med kompakt strømforsyning
  • Energibesparende takket være høj effektivitet
  • 2 x volumenkontrol
  • Beskyttet mod kortslutning, overophedning, overspænding ved udgange og overbelastning
  • LED-indikator for power, signal, bridge, overbelastning (clip), overophedning og beskyttelse
  • Mulighed for brokobling
  • 85-265 V_
  • NEUTRIK POWERCON og SPEAKON højttalertilslutning

SOUNDCHECK 03/2015
"The STA-1000D and STA-2000D provide an unobtrusive sound reproduction of a high quality. No matter whether classical music, rock music or voice reproductions, the power amplifier perfectly meets any requirement."
tools4music 02/2015
"The power amplifiers STA-200D and STA-1000D from IMG Stage Line impress by an elaborated selection and configuration of the inner components. Due to the low weight and the mounting depth of 335 mm only, this series is suitable for both rack mounting and installation into shelves. With these test results, they are also suitable for hi-fi applications. I consider these 'lightweights' to be very well-suited for small to medium-sized entertainment applications, PA applications at conferences and for speech transmissions well as a multi-channel power amplifier for stage monitoring."
+ Operating reliability
+ Weight
+ Test results: low THD, perfect frequency response and S/N ratio
+ Low-maintenance design
+ Protective circuits
+ Very wide operating voltage range
+ Workmanship
+ Efficiency
- No XLR feedthrough connector



Antal
På fjernlager

Ref: STA-1000D

Channels 2
Zones -
Power rating 1,000 W
Power rating at 2 _ -
Power rating at 4 _ 2 x 500 W
Power rating at 8 _ 2 x 280 W
Power rating at 100 V -
Power rating with 4 _ bridged operation 1 x 1,000 W
Power rating with 8 _ bridged operation 1 x 1,000 W
Peak music power output (PMAX) 1,200 W
Output impedance -
Inputs 1 V/10 k_ (XLR, bal.),
1 V/5 k_ (RCA)
Attenuation factor -
Frequency range 20-20,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass -
Equalizer midrange -
Equalizer treble -
S/N ratio > 119 dBA
Crosstalk attenuation -
THD < 0.05%
Power supply _ 230 V/50 Hz/1,160 VA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,160 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 335 x 89 mm, 2 RS
Width 482 mm
Height 89 mm
Depth 335 mm
Rack spaces, RS 2
Weight 5.85 kg

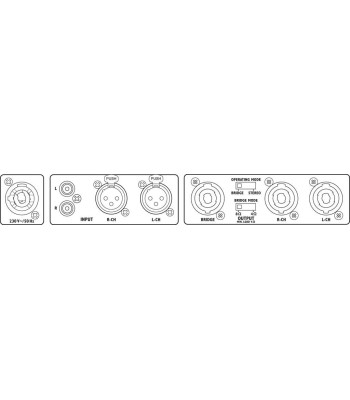

Connections 1 x NEUTRIK POWERCON
1 x 3-pole XLR L/R
1 x RCA L/R
1 x NEUTRIK SPEAKON L/R
1 x NEUTRIK SPEAKON bridge
IMG STAGELINE
STA-1000D

Specifikke referencer

16 andre varer i den samme kategori:

Bananstik rød - BP-30G/RT MONACOR
search

MONACOR Bananstik rød -...

Banana plugs for speakers, 4 mm
  • With cross hole
  • Spliced, gold-plated contact
  • Screw connection
  • PVC sleeve
Pris 100,00 kr.

På fjernlager

Vindhætte - WS-100/SW MONACOR
search

MONACOR Vindhætte - WS-100/SW

Vindhætte til mikrofon, sort (SW) skumgummi.

  • Til mikrofoner med Ø 6-8 mm
  • Mål: Ø 18 mm x 32 mm
  • Passer til fx HSE-100 serien



Pris 60,00 kr.

På fjernlager

Metalrack 12U - RACK-12F MONACOR
search

MONACOR Metalrack 12U -...

Studio rack for 482 mm (19") devices, 12 RS
  • Sheet steel version
  • Black powder coating
  • Max. mounting depth behind the front plate: 365 mm
  • 4 castors (two of which are provided with a brake)
  • Supplied with mounting kit
Pris 2.999,00 kr.

På lager

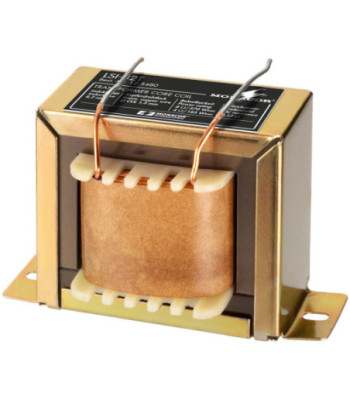

Trafospole 8.2mH - LSI-82T MONACOR
