. CC Pro Shop Trådløs modtager - TXS-646 IMG STAGELINE .

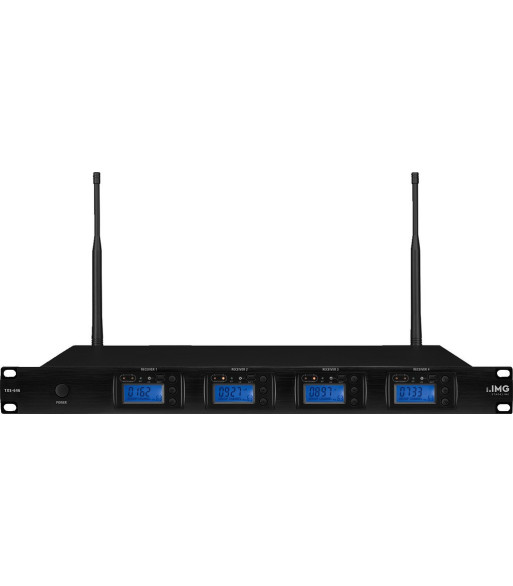

Trådløs modtager - TXS-646 IMG STAGELINE
search
  • Trådløs modtager - TXS-646 IMG STAGELINE

IMG STAGELINE Trådløs modtager - TXS-646

4.029,00 kr.
Inkl. moms

4-kanals trådløs mikrofonmodtager, med UHF PLL teknologi.

  • 1.000 UHF-frekvenser (672,000-696,975 MHz) til hver kanal (10 grupper med hver 100 kanaler)
  • ACT funktion for transmission af den valgte frekvens til den trådløse sender via infrarødt signal
  • Automatisk søgning
  • Ægte diversity system med aftagelige antenner (BNC stik)
  • Volumen- og squelchkontrol for hver kanal
  • Hver kanal har LCD-indikator for gruppe/kanal, antenne A/B, RF signalstyrke, AF lydstyrke samt LED-indikator for lydstyrke
  • XLR udgang for hver kanal, balanceret.
  • 6,3 mm udgang (mixed signal)
  • Robust metalkabinet
  • Strømforsyning medfølger
  • 482 mm (19") rack installation, 1 U

SOUNDCHECK 04/2012
"The TXS-646 can receive four wireless channels at the same time - the hand-held transmitter provides a warm and powerful sound and stands its ground among the instruments ... the earband microphones allow for unobtrusive miking with both a low susceptibility to acoustic feedback and an excellent speech intelligibility ... the quad wireless system from IMG Stage Line provides a reliable operation at all times, is easy to use and impresses by a crisp sound."
+ Clear sound
+ Very good price-performance ratio
+ Future-proof frequency range
(Test setup consisted of TXA-646 with TXS-606HT, TXS-606LT and HSE-70A/SK)



Antal
På fjernlager

Ref: TXS-646

Type receiver unit
Carrier frequency range 672.000-696.975 MHz
Audio frequency range 30-18,000 Hz
Channels 4
THD < 0.5%
Dynamic range 100 dB
RF S/N ratio 105 dB
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Transmitting power -
Operating range -
Power supply transmitter -
Width transmitter -
Height transmitter -
Depth transmitter -
Weight transmitter -
Connections transmitter -
Audio signal receiver 350 mV/600 _ (jack)
25 mV/600 _ (XLR, bal.)
Power supply receiver via encl.
plug-in power supply
Width receiver 482 mm
Height receiver 45 mm
Depth receiver 310 mm
Weight receiver 2.9 kg
Connections receiver 4 x XLR, bal.,
1 x 6.3 mm jack, unbal.
IMG STAGELINE
TXS-646

Specifikke referencer

16 andre varer i den samme kategori:

XLR-adapter - NTA-114 MONACOR
search

MONACOR XLR-adapter - NTA-114

Adapter XLR/RCA jack
  • Nickel-plated metal body
  • Gold-plated contacts
  • Not suitable for speaker applications!

NTA-114 = XLR plug
NTA-115 = XLR inline jack
Pris 41,00 kr.

På lager

Gummifod - HF-10 MONACOR
search

MONACOR Gummifod - HF-10

Gummifødder
  • Til små apparater
  • Firkantede
  • Selvklæbende
  • 13 x 13 x 3,5 mm
  • Antal pr. pakning: 44 stk.



Pris 132,00 kr.

På fjernlager

IMG STAGELINE Trådløs bordmikrofon - TXS-606DT/2
search

IMG STAGELINE Trådløs...

Wireless desktop microphone with integrated multifrequency transmitter,
with UHF PLL technology.

  • Electret microphone cartridge, cardioid polar pattern
  • 350 mm gooseneck, removable
  • 800 selectable UHF frequencies (672.000-691.975 MHz), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
  • Adjustable sensitivity
  • Switchable transmitting power (high: 25 mW/low: 2.5 mW)
  • LCD for indicating group/channel, audio level and battery status
  • Power supply via 2 x 1.5 V battery AA size (not supplied)


There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section _IMPORTANT INFORMATION_!

Pris 1.359,00 kr.

På fjernlager

ELA-volumekontrol - ATT-212/WS MONACOR
search

MONACOR ELA-volumekontrol -...

Wall-Mounted PA Volume Controls
  • Attenuation in 10 steps, position 0 is OFF
  • Audio transformer for 100 V line technique
  • White plastic front panel and knob
  • Flush mounting, surface mounting with matching housing ATT-200, available at option
Pris 299,00 kr.

På fjernlager

MONACOR PA-højttaler 500Wmax - MOVE-08PMK2
search

MONACOR PA-højttaler...

Professional PA speaker system, 250 W, 8 _

  • Compact professional full range bass-reflex system
  • Cabinet made of birch plywood
  • 20 cm (8", FaitalPro 8PR200) bass speaker
  • 25 mm (1", 44 mm voice coil, Celestion CDX1-1747) horn tweeter, can be turned by 90°
  • Switchable between passive operation and bi-amp active operation
  • Neutral sound tuning
  • 'Catch & Carry' carrying handle
  • M8 threaded inserts for suspended installation
  • 2 x NEUTRIK SPEAKON terminal, in/out
  • Stand sleeve, robust front grille

Pris 8.439,00 kr.

På lager

Potmt log 10KOhm - VRA-141M10 MONACOR
search

MONACOR Potmt log 10KOhm -...

Potentiometers, mono
With slotted 6 mm shaft, for 18-tooth push-on buttons, with nut fixing and PCB solder connections.
Pris 31,00 kr.

På fjernlager

HDMI(TM)/DVI adapter - HDMDVI-100P ORG.MAKERS BRAND
search

HDMI(TM)/DVI adapter -...

HDMI_/DVI adapter
  • Gold-plated contacts
  • 19-pole HDMI_ Type-A plug to DVI-D inline jack 24+1
Pris 44,95 kr.

På lager

Gummifod - HF-155 MONACOR
search

MONACOR Gummifod - HF-155

Gummifod
  • Til tunge enheder og højttalerkabinetter
  • Med rillet profil
  • Ø 38 mm x 15 mm
  • 5,2 mm hul



Pris 9,00 kr.

På fjernlager

6 1/2´´ højttaler - SPH-170C NUMBER ONE
search

MONACOR 6 1/2´´ højttaler -...

High-end bass-midrange speaker, 60 W, 8 _
  • Cone with excellent damping
  • Extra long excursion
  • Low distortion
  • Particularly natural reproduction
  • Very low limit frequency
  • Ideally suited as a bass-midrange speaker in 2-way combinations but only requires small volumes
HOBBY HiFi 02/2012
"Ideally suited for smaller bookshelf speaker systems. With the SPH-170C, MONACOR offers a bass-midrange speaker of very neat workmanship which impresses by a particularly high-quality design."
Pris 1.029,00 kr.

På fjernlager

IMG STAGELINE Trådløs knaphulsmikrofon - TXS-606LT/2
search

IMG STAGELINE Trådløs...

Multifrequency tie clip microphone transmitter,
with UHF PLL technology.

  • 800 selectable UHF frequencies (672.000-691.975 MHz), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
  • Continuously adjustable sensitivity
  • LCD for indicating group/channel, audio level and battery status
  • Tie clip microphone with latchable 3.5 mm plug
  • Belt clip
  • Power supply via 2 x 1.5 V battery AA size (not supplied)



There are restrictions or requirements within the EU!
Please read the information regarding wireless systems in the section _IMPORTANT INFORMATION_!
SOUNDCHECK 04/2012
_The TXS-646 can receive four wireless channels at the same time - the hand-held transmitter provides a warm and powerful sound and stands its ground among the instruments ... the earband microphones allow for unobtrusive miking with both a low susceptibility to acoustic feedback and an excellent speech intelligibility ... the quad wireless system from IMG Stage Line provides a reliable operation at all times, is easy to use and impresses by a crisp sound._
+ Clear sound
+ Very good price-performance ratio
+ Future-proof frequency range
(Test setup consisted of TXA-646 with TXS-606HT, TXS-606LT and HSE-70A/SK)

Pris 1.029,00 kr.

På fjernlager

MONACOR 100V højttaler 6Wmax - EDL-15
search

MONACOR 100V højttaler...

PA ceiling speaker

  • 100 V line technique
  • 13 cm (5") full range speaker
  • Metal housing with protective speaker grille
  • Power taps: 6/3/1.5 W
  • Quick-mounting facility with spring clips
  • Connection via spring-loaded terminal
  • For a ceiling thickness from 10 to 40 mm

Pris 309,00 kr.

På fjernlager

Bordmikrofon - ECM-450 MONACOR
search

MONACOR Bordmikrofon - ECM-450

Bordmikrofon, med svanehals.

  • Elektret, cardioid karakteristik
  • Volumenkontrol for tale og signaltone
  • Flere forskellige signaltoner
  • Automatisk signaltoneaktivering (kan deaktiveres)
  • Strømkilder: medfølgende strømforsyning eller batterier (medfølger ikke)
  • 1,5 m tilslutningskabel med 6,3 mm jack (i begge ender)



Pris 889,00 kr.

På fjernlager

Modstand 10 Ohm/20W - LSR-100/20 MONACOR
search

MONACOR Modstand 10 Ohm/20W...

High-Performance Cement Resistors, 20 W
Resistors for use in crossover networks, especially for PA and top hi-fi applications, also to be connected as load resistors.
Pris 25,00 kr.

På fjernlager

Strømforsyning DIN - HDR-60/24
search

Strømforsyning DIN - HDR-60/24

Switch-mode power supply, 60 W
  • For mounting onto DIN rails TS35, e.g. in distributions boards, meter panels, fuse boxes or control cabinets
  • Universal input voltage: &acd; 85-265 V/47-63 Hz
  • Output voltage: DC 24 V/2.5 A
  • Low no-load power consumption: < 0.3 W
  • Fine adjustment of output voltage
  • Output power limitation (LPS)
  • LED for indicating operating status
  • Protected against short circuit, overload, overvoltage and overheating
  • EMC standard EN 61000-6-2

Supplied w/o DIN rails.
Range of applications:
  • Home technology, smart home
  • Building automation
  • Industrial control systems
  • Production automation
  • Electro-mechanical devices

Pris 399,00 kr.

På fjernlager

Exciter højttaler - EX-40/8 MONACOR
search

MONACOR Exciter højttaler -...

Audio exciters/resonators, 20 W, 4 _ (/4) or 8 _ (/8)
Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces create an impressive sound in the entire surrounding area.
  • Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
  • Excellent sound quality
  • High power capability
  • Suitable for unobtrusive PA applications, e.g. at doors, cupboards, shelves, glass panels
  • Supplied with 3M adhesive pad
Pris 399,00 kr.

På fjernlager
