100V matrixforstærker 4x120Wrms - PA-12040 MONACOR
search
  • 100V matrixforstærker 4x120Wrms - PA-12040 MONACOR
  • 100V matrixforstærker 4x120Wrms - PA-12040 MONACOR

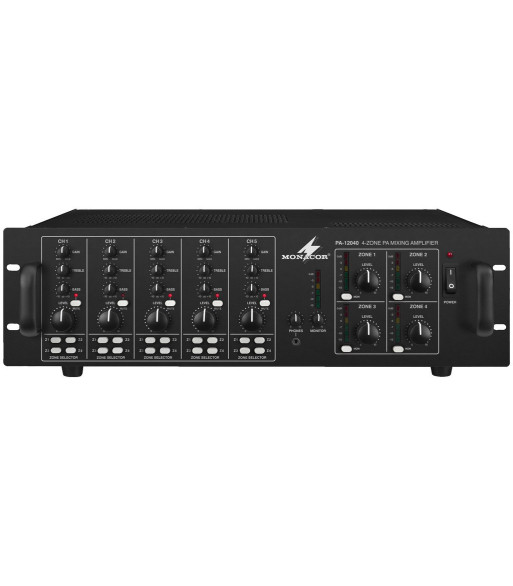

MONACOR 100V matrixforstærker 4x120Wrms - PA-12040

7.779,00 kr.
Inkl. moms

4-kanals mixerforstærker, mono, med professionelle funktioner til generel "multi-room" anvendelse.

  • 4 x 120 W (PA-12040)
  • 4 x 40 W (PA-4040)
  • 100 V og 4/8 _
  • Perfekt udnyttelse af kapaciteten og god beskyttelse af de tilsluttede højttalere via integreret limiter
  • 3 kombinerede mikrofon-/line-indgange
  • 2 line stereoindgange, phono
  • Alle indgange har gain, 2-vejs tonekontrol, mute-tast og zonevælger
  • Mikrofonindgange med +46 V phantom strømforsyning
  • Priority-funktion for kanal 1
  • Separat paging indgang, som kan routes til alle zoner
  • 4 zoneudgange, som kan justeres individuelt
  • Zone og monitor line-udgange til ekstra forstærkere eller optagere
  • Tilslutning for monitorhøjttalere
  • VU-meter for zone og monitor
  • Justerbar hovedtelefonudgang
  • Blæserkøling
  • 230 V



Antal
På fjernlager

Ref: PA-12040

Channels 5
Zones 4
Power rating 4 x 120 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) 4 x 170 W
Output impedance
Inputs 5 mV/4 k_, 100 mV/10 k_ (mic/line)
100 mV/30 k_ (line)
40 mV/5 k_ (tel. paging)
Attenuation factor
Frequency range 50-17,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer midrange -
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB, mic
> 75 dB, line
Crosstalk attenuation -
THD < 1%
Power supply _ 230 V/50 Hz/1,200 VA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,200 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 133 x 410 mm, 3 RS
Width 482 mm
Height 133 mm
Depth 410 mm
Rack spaces, RS -
Weight 20.5 kg

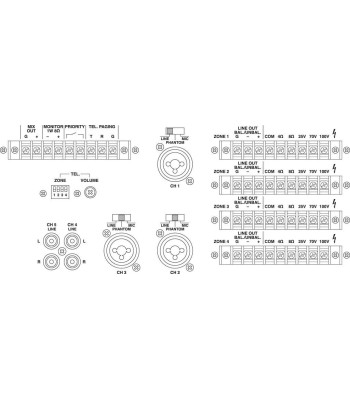

Connections 3 x combo jack/XLR, bal. (mic/line inputs)

2 x RCA L/R (line inputs)

3.5 mm jack (headphones)

screw terminal (paging, priority, zone outputs,
speakers, line outputs)
PA-12040
