Exciter højttaler - EX-1W MONACOR
search
  • Exciter højttaler - EX-1W MONACOR
  • Exciter højttaler - EX-1W MONACOR

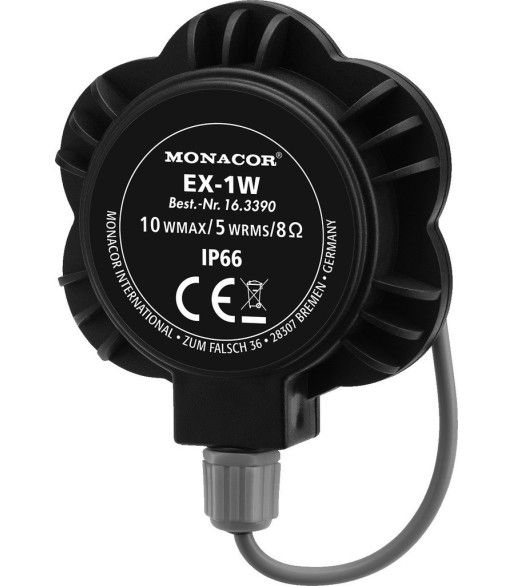

MONACOR Exciter højttaler - EX-1W

439,00 kr.
Inkl. moms
Audio exciter/resonator, 5 W, 8 _
Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces create an impressive sound in the entire surrounding area.
  • Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
  • Excellent sound quality
  • Dustproof and hose-proof according to IP66
  • Suitable for unobtrusive PA applications, e.g. at doors, cupboards, shelves, glass panels, desktops, shower screens
  • Supplied with 3M adhesive pad
Antal
På fjernlager

Ref: EX-1W

Impedance (Z) 8 _
Line technique -
Frequency range dep. on the installation, goes beyond 20 kHz
Resonant frequency (fs) 1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 5 W
Peak music power output 10 W
Sensitivity -
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 25 mm
Voice coil former KSV
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -
Mounting cutout -
Mounting depth -
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -

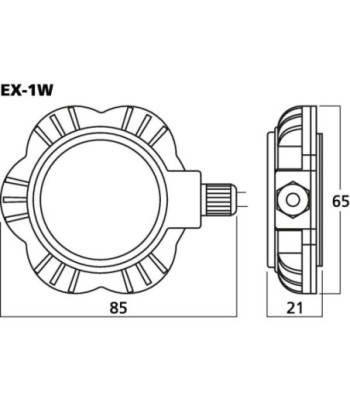

Dimensions 85 x 65 x 21 mm
Outside diameter -
Width 85 mm
Height 65 mm
Depth 21
Protective class IP66
Admiss. ambient temp. -10 °C to +40 °C
Weight 0.115 kg
Sales unit 1
Type of speaker -
EX-1W
