. CC Pro Shop 100V højttaler - EDL-156 MONACOR .
100V højttaler - EDL-156 MONACOR
search
  • 100V højttaler - EDL-156 MONACOR
  • 100V højttaler - EDL-156 MONACOR

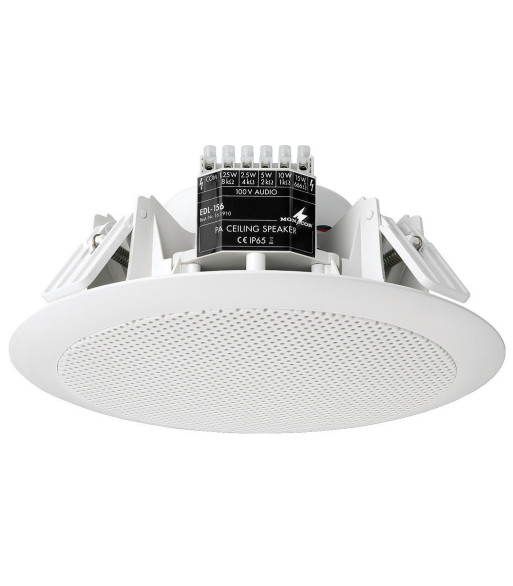

MONACOR 100V højttaler 15Wmax - EDL-156

849,00 kr.
Inkl. moms
Vejrbestandige PA loftshøjttalere, varmebestandige op til 100°C. Til anvendelse i sauna og poolområder.
  • 100 V line-teknologi
  • 2-vejs system med dome tweeter
  • Fremragende lyd
  • Hvidt plastikkabinet
  • Vejrbestandig højttalermembran
  • Testet i overensstemmelse med ASTM B117 (400 timers saltsprøjtetest)
  • Til lofter med en tykkelse fra 2 til 25 mm



Antal
På fjernlager

Ref: EDL-156

Impedance (Z) -
Line technique 100 V
Frequency range 60-20,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 15/10/5/2.5/1.25 W
Peak music power output -
Sensitivity 88 dB
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -

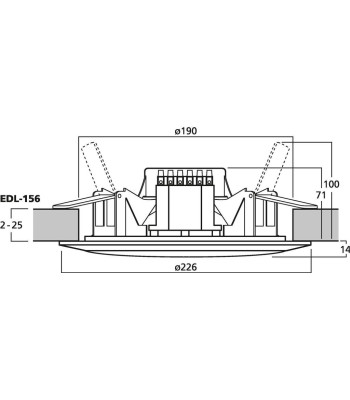

Mounting cutout Ø 190 mm
Mounting depth 75 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 226 mm x 100 mm
Outside diameter Ø 226 mm
Width Ø 226 mm
Height -
Depth 100 mm
Protective class IP65
Admiss. ambient temp. 0-40 °C
Weight 1.1 kg
Sales unit -
Type of speaker 180
EDL-156

Specifikke referencer

16 andre varer i den samme kategori:

Mikrofonforforstærker - MPR-6 IMG STAGELINE
search

IMG STAGELINE...

Mikrofonforforstærker, til tilslutning af op til 2 mikrofoner til en line-indgang i et Hi-Fi system, en forstærker eller en mixer.

  • Stereo eller 2 x mono
  • Stor frekvensrækkevidde
  • Sort metalkabinet
  • Strømforsyning medfølger



Pris 399,00 kr.

På fjernlager

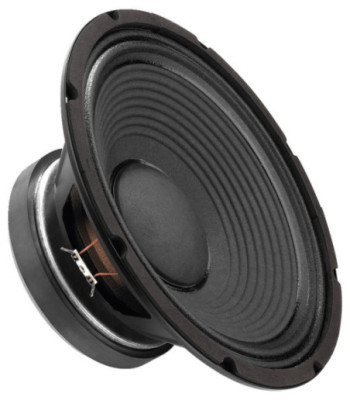

12´´ højttaler - SP-12/200PA MONACOR
search

MONACOR 12´´ højttaler -...

PA bass-midrange speaker, 200 W, 8 _
  • Very high efficiency and perfect specifications for use in compact full range speaker systems
  • Can ideally be combined with mid-high range horns
Pris 1.059,00 kr.

På fjernlager

Audio overvågningsmodul - PA-6FD MONACOR
search

MONACOR Audio...

Fault detection module
  • For PA amplifiers PA-6240, PA-6480, PA-6600 and PA-1960
  • Module transmits a 20 kHz pilot tone in order to monitor functions of the PA amplifier
  • In case of a fault, a floating relay contact will be opened
  • Adjustable sensitivity
Pris 559,00 kr.

På fjernlager

Mikrofonkabel 80/500cm - CCX-5M MONACOR
search

MONACOR Mikrofonkabel...

Helix microphone cable, Ø 5 mm
  • 2 cores
  • Balanced in one shield
  • Length: 80-500 cm.
Pris 117,00 kr.

På fjernlager

MONACOR PA subwoofer - SUB-10
search

MONACOR PA subwoofer - SUB-10

This 25 cm (10") passive subwoofer
has been developed to deliver a powerful bass reproduction from compact cabinets and features a power rating of 500 W max. The band-pass cabinet with its 10" bass speaker of long excursion generates a dry and deep bass. It can be used as subwoofer support for PA systems in restaurants and bars or shops to ensure a rich and powerful sound. Nevertheless, it can also be used as an additional subwoofer for smaller PA speakers and simply be connected in parallel due to the integrated crossover network (low-pass filter at approx. 200 Hz).
Passive subwoofer, 500 W/8 _

  • Band-pass subwoofer with double ventilation
  • 1 x 25 cm (10") top-class woofer
  • Slimline and compact design for upright and horizontal setup
  • High-quality lacquered cabinet made of plywood, front grille with inner lining
  • Integrated crossover network (low-pass) with crossover frequency at 200 Hz
  • 4 x M8 lateral threaded insert as installation aid
  • Speakers connected to the subwoofer in parallel must have a nominal impedance of 8 _ min.
  • Stand sleeve at the top

Pris 3.189,00 kr.

På fjernlager

Mikrofonkabel 10m - MEC-1000/SW Monacor
search

MONACOR Mikrofonkabel 10m -...

XLR kabler
Line- og mikrofonforlængerkabler.
  • 1 x XLR hunstik og 1 x XLR hanstik, balancerede
  • Skærmet støjsvagt OFC kabelmateriale, Ø 6,5 mm



Pris 239,00 kr.

På fjernlager

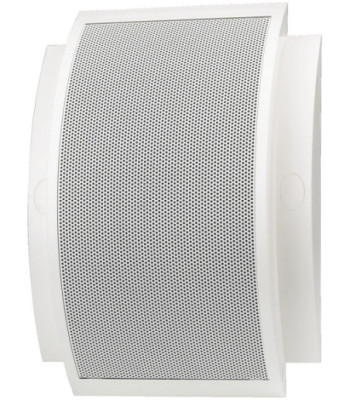

100V højttaler - ESP-157/WS MONACOR
search

MONACOR 100V højttaler...

PA wall speaker
  • 100 V line technique via audio transformer with 2 power taps
  • Good sound characteristics due to 2-way system
  • Plastic cabinet of a special design with protective metal grille
  • Closed rear panel, srewed
  • Horizontal and vertical mounting possible
Pris 409,00 kr.

På fjernlager

Dante(R) Bluetooth adapter - ADP-BT-AU-2X1
search

Dante(R) Bluetooth adapter...

Dante® AVIO Bluetooth adapter

  • For connecting a Bluetooth device to a Dante® audio network
  • 2-channel recording/playback
  • Sampling rate: 48 kHz, 24 bits
  • Bluetooth version 5.0 A2DP (AptX, AAC) and HFP
  • Compatible with Windows, Mac OS, iOS and Android devices, no driver required
  • Connections: 1 x RJ45


The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.

Pris 3.499,00 kr.

På fjernlager

HDMI(TM) kabel 15m - HDMC-1500M/SW MONACOR
search

MONACOR HDMI(TM) kabel 15m...

High-quality HDMI_ High-speed Connection Cables (High Definition Multimedia Interface) for the high-resolution transmission of digital video and audio data.
  • Ethernet
  • Support audio return channel
  • Conform to HDCP
  • HDTV up to 1080p (Full HD), suitable for 3D
  • High-quality cables with 2 ferrite cores for an interference-free transmission, even with greater cable lengths
  • 2 x 19-pole HDMI_ Type-A plug with shielded metal bodies and gold-plated contacts
Pris 589,00 kr.

På lager

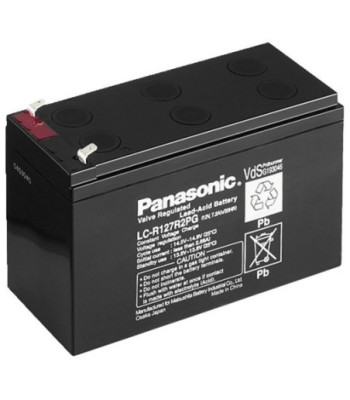

Akkumulator - NPA-12/7 PANASONIC
search

Akkumulator - NPA-12/7

Serie af genopladelige blybatterier, 12 V
Fra PANASONIC, vedligeholdelsesfri, særligt høj kapacitet, til generel brug.
  • Kan aflades og lagres i vilkårlig position
  • Til standby parallel drift (SBPO) og cyklusdrift (CO)
  • 6-12 års holdbarhed i standby parallel drift, afhængig af modellen (se liste) og ved 20 °C



Pris 399,00 kr.

På fjernlager

HDMI(TM) via CAT sæt - INS-100Z MONACOR
search

MONACOR HDMI(TM) via CAT...

Transmissionssæt, til transmission af HDMI_ signaler via netværkskabel op til 100 m.

  • Opløsning: 1080p med et 100 m Cat. 5 kabel (individuel tilslutning af sender/modtager)
  • Mulighed for op til 5 modtagere INS-100R i et netværk ved brug af Cat. 6 kabler i et gigabit-netværk
  • IR-sensorer som understøtter brug af fjernbetjening til eksterne enheder medfølger
  • Leverancen omfatter: 1 sender, 1 modtager, 2 strømforsyninger

Sender:

  • HDMI_ jack, RJ45, stik til strømforsyning
  • LED statusindikator
  • Strømforsyning medfølger
  • Mål: 97 x 24 x 94 mm
  • Vægt: 145 g

Modtager:

  • HDMI_ jack, RJ45, stik til strømforsyning
  • LED statusindikator
  • Strømforsyning medfølger
  • Mål: 97 x 24 x 94 mm
  • Vægt: 142 g
Pris 1.309,00 kr.

På fjernlager

Monitor-enhed - PA-1200M MONACOR
search

MONACOR Monitor-enhed -...

Monitor unit, 10 + 1 channels
  • Audio sources can be selected via rotary switch
  • 10 monitor inputs 1-100 V/10 k_
  • 1 aux input 0 dB (0.775 V)/600 _
  • Level control, LED VU meter and clip LED for each monitor input
  • Built-in 2 W speaker, volume control
  • Headphone output
  • Mains operation and 24 V emergency power operation
Pris 3.079,00 kr.

På fjernlager

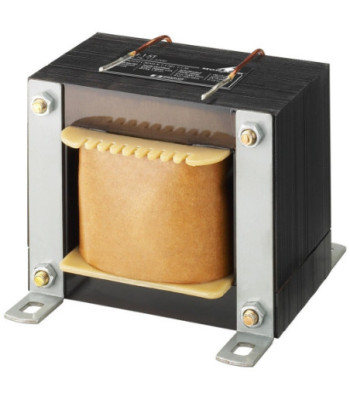

Trafospole 15mH - LSI-15T MONACOR
