. CC Pro Shop 6´´ højttaler - SPM-165/8 MONACOR .

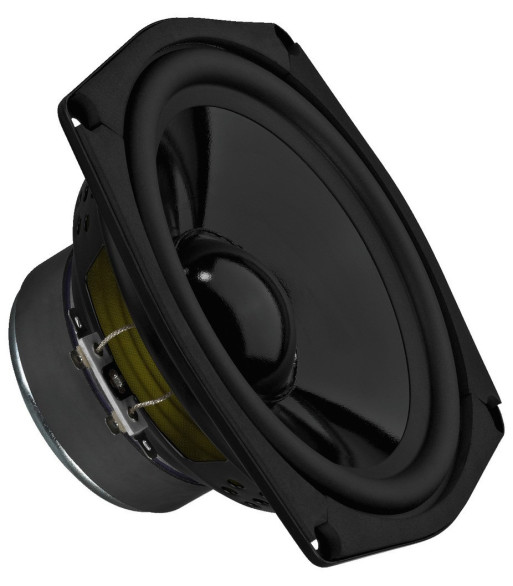

6´´ højttaler - SPM-165/8 MONACOR
search
  • 6´´ højttaler - SPM-165/8 MONACOR
  • 6´´ højttaler - SPM-165/8 MONACOR

MONACOR 6´´ højttaler - SPM-165/8

289,00 kr.
Inkl. moms
Hi-fi bass-midrange speaker, 60 W, 8 _
  • Excellent replacement speaker of the same quality as from the original equipment manufacturer
  • Coated low-resonance paper cone
  • Long-term stable rubber surround
  • To be used preferably in closed or transmission line cabinets
Klang+Ton 01/2013
"What a great idea. The Cheap Trick 264 (with SPM-165/8 & DTM-104/8) wants to show that it is possible to actually provide great music at an attractive price ... and with any kind of music programme. It provides a reproduction of a comprehensive musical spectrum which is always a pleasure to listen to. With reliable material and a little care during assembly, you already get an all-round speaker which is absolutely suitable for practical operation."
Antal
På fjernlager

Ref: SPM-165/8

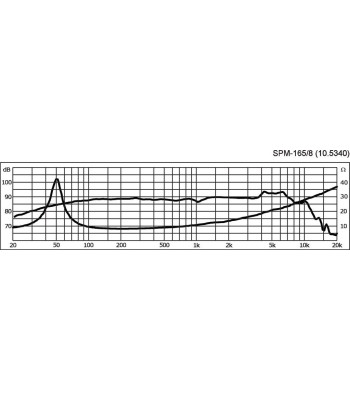

Impedance (Z) 8 _
Line technique -
Frequency range f3-5,000 Hz
Resonant frequency (fs) 49 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 60 W
Peak music power output 150 W
Sensitivity 88 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) 1.0 mm/N
Moving mass (Mms) 10.3 g
Mech. Q factor (Qms) 2.7
Electr. Q factor (Qes) 0.67
Total Q factor (Qts) 0.55
Equivalent volume (Vas) 33 l
DC resistance (Re) 7.2 _
Force factor (BxL) 5.8 Tm
Voice coil induct. (Le) 0.6 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3 mm
Eff. cone area (Sd) 140 cm2
Magnet weight 380 g
Magnet diameter Ø 80 mm
Mounting cutout Ø 145 mm
Mounting depth 73 mm
Mounting hole diameter Ø 172 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 159 mm x 78 mm
Outside diameter Ø 159 mm
Width Ø 159 mm
Height -
Depth 78 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.97 kg
Sales unit 1
Type of speaker 6.5"
SPM-165/8
