. CC Pro Shop 6 1/2´´ højttaler - SP-167E MONACOR .

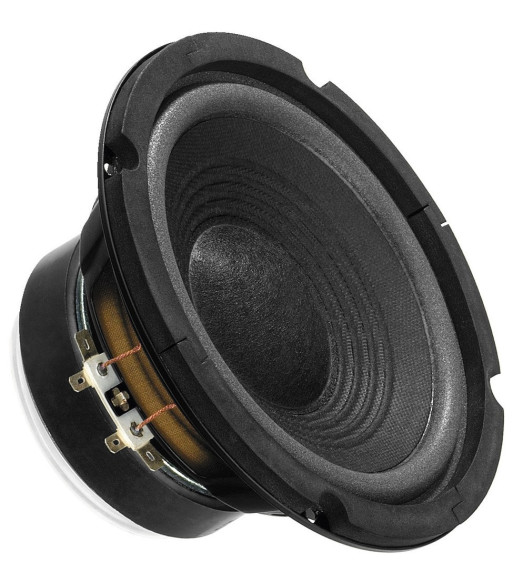

6 1/2´´ højttaler - SP-167E MONACOR
search
  • 6 1/2´´ højttaler - SP-167E MONACOR
  • 6 1/2´´ højttaler - SP-167E MONACOR

MONACOR 6 1/2´´ højttaler - SP-167E

239,00 kr.
Inkl. moms
Hi-fi bass-midrange speaker, 35 W, 4 _
  • Great all-round speaker
  • Foam surround
  • Replacement speaker for closed speaker systems and bass-reflex speaker systems
Antal
På fjernlager

Ref: SP-167E

Impedance (Z) 4 _
Line technique -

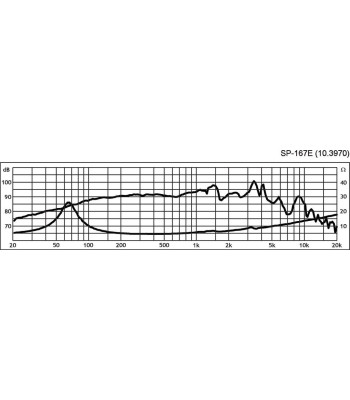

Frequency range f3-6,000 Hz
Resonant frequency (fs) 62 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 35 W
Peak music power output 70 W
Sensitivity 92 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.7 mm/N
Moving mass (Mms) 9.3 g
Mech. Q factor (Qms) 2.78
Electr. Q factor (Qes) 0.48
Total Q factor (Qts) 0.41
Equivalent volume (Vas) 17.88 l
DC resistance (Re) 3.9 _
Force factor (BxL) 5.43 Tm
Voice coil induct. (Le) 0.6 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2.5 mm
Eff. cone area (Sd) 135 cm2
Magnet weight 570 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 149mm
Mounting depth 67 mm
Mounting hole diameter Ø 160 mm
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 169 mm x 70 mm
Outside diameter Ø 169 mm
Width Ø 169 mm
Height -
Depth 70 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 1.23 kg
Sales unit 1
Type of speaker
SP-167E
