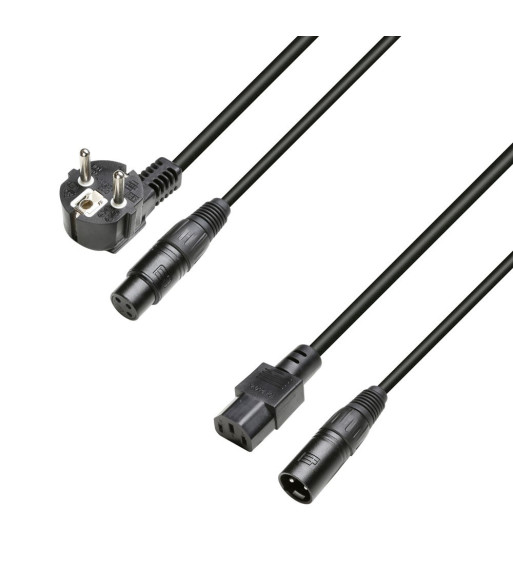

. Hybrid Cable power- & audio mains connector & 3-pole XLR - 20m .
Hybrid Cable power- & audio mains connector & 3-pole XLR | 20m
search
  • Hybrid Cable power- & audio mains connector & 3-pole XLR | 20m

Hybrid Cable power- & audio mains connector & 3-pole XLR - 20m

1.069,00 kr.
Inkl. moms
3 STAR H C13 A 2000
  • No more cable mess with just one cable to your equipment
  • For parallel power and balanced audio signal transmission
  • Equipped with high reliable AH audio connectors
  • 3x1,5mm² cross section for power
  • 2x 0,22mm² cross section for audio
Antal
På fjernlager

Ref: 8101PSAX2000

General

Cable length20 m
Split end length40 cm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter15 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 3-pole female
Model name plug 1Adam Hall K3CXF3BLK
Contact material plug 1Silver plated
Connector type plug 2XLR 3-pole male
Model name plug 2Adam Hall K3CXM3BLK
Contact material plug 2Silver plated

Line

Conductor materialOxygen-free copper (OFC)
Conductor diameter2 x 0,22 mm²
AWG24
Capacity/m125 pF
ShieldSpiral copper shielding
Shielding structure28 x 0.10 mm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter5 mm

Mains plug

Plug type connector 1IEC C13 plug female
Plug type connector 2Schuko plug male angled

Mains line

Conductor materialOxygen-free copper (OFC)
Conductor diameter3 x 1,5 mm²
AWG16
Cable jacketPVC (Polyvinyl chloride)
Cable diameter10 mm

Environmental

Temperature range-20 - 70 °C

Dimensions & weight

Weight5.3 kg
Adam Hall Cables
8101PSAX2000
