Palmer 19" DI/Line Isolation box 4 channels active

4.369,00 kr.
Inkl. moms
PAN 08

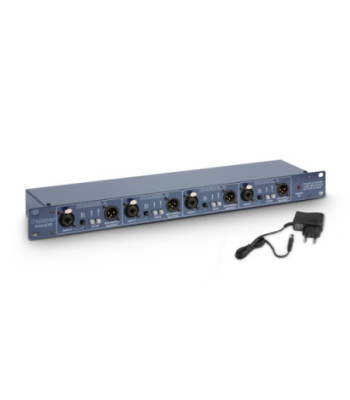

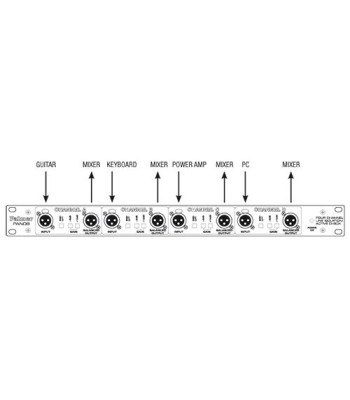

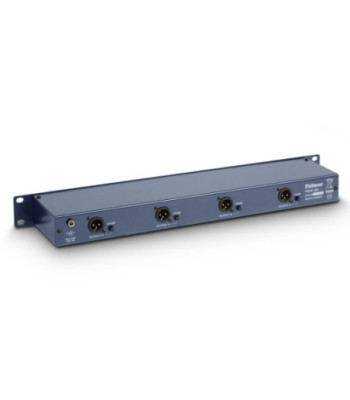

The PAN08 is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear).

The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.

Antal
På fjernlager

Ref: PAN08

Product typeDI boxes
Typeactive
Channels4
Inputs4
Input connectors6.3 mm jack
Input connectorsXLR
Max. input level+12 dBu
Input impedanceBalanced: 20k Ohm(s)
Number of outputs8
THRU outputs/channel0
Output connectorsXLR
Max. output level+12 dBu
Output impedance600 Ohm(s)
Frequency response20 - 20000
Transformer balancedYes
RatioVariabel
IndicatorsPower
Controls2 x gain
Controlsattenuator
Controlsground lift
Power supply9 V DC power supply
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width480 mm
Width19 "
Depth90 mm
Height45 mm
Height1 U
Weight1,59 kg
Palmer
PAN08

Specifikke referencer

7 andre varer i den samme kategori:

Palmer Passive 2-channel media DI box
search

Palmer Passive 2-channel...

RIVER naab

If you connect a laptop to a sound system, in many cases the sound quality leaves a lot to be desired. It hums and crackles, sometimes there is also a loss of sound in the low and high frequencies. The Palmer naab, a two-channel media DI box, provides a reliable solution for this situation.

Its best in class isolating transformers and the switchable hard or soft ground lifts prevent any humming. The transformers also ensure a perfect level and impedance adjustment. The result is clean sound without any noise.

If necessary, the Palmer naab can be switched from stereo to mono, which is often very useful in practice. The mono sum signal is then available at both XLR outputs at the same time; this way, the naab can also be used as a split box.

On the input side, there is a wide range of connections: 2 x 6.3 mm jack sockets, which can be balanced or unbalanced, as well as 2x RCA and 1x 3.5mm mini jack (stereo). This eliminates the need for adapter cables - which you always forget to take with you anyway! The outputs are professional XLR sockets; their balanced wiring allows even longer cable runs without any noise.

Due to its passive mode of operation, the Palmer naab does not need a power supply; this makes it extremely failure-proof, especially as the robust metal housing can withstand a lot. The Palmer naab is the ace up the sleeve for every lecture traveller, DJ and sound engineer.

Pris 2.119,00 kr.

På fjernlager

Palmer Passive Line Isolation Box with Combo Input
search

Palmer Passive Line...

RIVER iller

The more complex the setup, the higher the chance of ground loops. With the Palmer iller Line Isolation Box, everything is quiet again so you can enjoy your audio without humming and buzzing.

The Palmer iller is an isolation transformer in a robust aluminium and steel housing. It separates the ground potentials of two devices so that equalising currents are prevented and only your sound is transmitted - clean and without interference. The only difference to its sister model wupper is that the Palmer iller is equipped with a combo socket on the input side that can accept both jack and XLR connectors. This eliminates the need for adapter cables.

The Palmer iller was developed for guitar and bass applications; however, due to its high-quality sound characteristics, it is just as suitable for keyboards and hi-fi equipment. The input (XLR/jack) can be balanced or unbalanced and the output (XLR) is balanced. This means that the Palmer iller can also be used to balance unbalanced signals, which allows longer cable runs without affecting the sound. Because of its passive design, the iller requires neither batteries nor phantom power. This makes it extremely failure-proof.

The Palmer iller is a simple, efficient hum killer: you connect it between two devices and the noise is gone. Sometimes it can be that simple!

Pris 989,00 kr.

På fjernlager

Palmer Passive 2-channel Line Isolation box
search

Palmer Passive 2-channel...

RIVER kyll

Consumer devices, as well as many professional keyboards such as synthesisers and digital pianos as well as some small mixers have unbalanced outputs. In order to connect them to a professional sound system and to avoid interfering noise over long cable runs, balanced signal routing is needed. For this purpose, the Palmer kyll handles the necessary signal balancing.

Due to the galvanic isolation via a transformer, the kyll also eliminates ground loops. To do this, simply engage the ground lift switch. Devices that already have balanced outputs also benefit from this, since noise can occur even here. The Palmer kyll reliably eliminates hum and buzz.

The Palmer kyll is capable of very high levels. Compared to conventional line isolators for media applications, it can process much "hotter" input signals without unwanted distortion being audible: up to + 20 dBu! But the kyll can also process quieter signals without causing any sound alteration or noise, because it works purely passively with large isolating transformers. This makes the Palmer kyll extremely easy to use and fail-safe, as it requires neither batteries nor phantom power. Conveniently, the inputs are designed as combo sockets that accept jack or XLR connectors. Adapters are unnecessary! The balanced outputs are designed as professional XLR sockets.

The kyll line isolation box is a universal problem solver for eliminating humming ground loops. When connecting unbalanced equipment, the signal is simultaneously balanced. Whether at home, at lectures, in the rehearsal room, on stage, in clubs or at large events, the Palmer kyll ensures a clean sound without noise.

Pris 2.199,00 kr.

På fjernlager

Palmer Passive Line Isolation Box
search

Palmer Passive Line...

RIVER wupper

The more complex the setup, the higher the chance of ground loops. With the Palmer wupper Line Isolation Box, everything is quiet again so you can enjoy your audio without humming and buzzing.

The Palmer wupper is an isolation transformer in a robust aluminium and steel housing. It separates the ground potentials of two devices so that equalising currents are prevented and only your sound is transmitted - clean and without interference.

The Palmer wupper was developed for guitar and bass applications, but its brilliant, unaltered sound is just as suitable for keyboards and hi-fi equipment. The inputs and outputs with jack connections can be balanced or unbalanced. This means that the Palmer wupper can also be used to balance unbalanced signals, which allows longer cable runs without affecting the sound. Due to its passive design, the wupper requires neither batteries nor phantom power. This makes it extremely failure-proof.

The Palmer wupper is a simple, efficient humming killer: Connect it between two devices and the interference is gone. Sometimes it can be that simple!

Pris 949,00 kr.

På fjernlager

Palmer Line Isolation Box 2 Channel
search

Palmer Line Isolation Box 2...

LI 05

Balanced or unbalanced? That_s not a problem with the BALUN/PLI05. BALUN stands for balanced-unbalanced. This means that because the PLI05 uses TRS (stereo) jack sockets, both the input and output can be operated balanced or unbalanced. The PLI05 is the PLI02_s little sister. Both speakers can be used to convert from balanced to unbalanced. Both speakers include line isolation transformers for galvanic isolation. They are connected between mains-operated audio devices to prevent ground loop hum. The PLI02 is designed for using XLR connectors and built for low impedances (600 ohm). In contrast, the use of jack sockets means that the PLI05 is better suited to higher impedances. It can be operated in the broad range of 600 ohm to over 10 kilo ohm. However, in order to minimise level loss, the input impedance should not be lower than the output impedance.

Pris 1.299,00 kr.

På fjernlager

Palmer Channel Merge Line Isolation Box
search

Palmer Channel Merge Line...

RIVER vils

We've all had the same experience before:

At home the sound was crisp and clean but during the presentation it hums and buzzes and there is no time to figure out the cause.

Here is where the Palmer vils comes in handy as it safely isolates the ground potentials of the laptop, media devices and PA systems from each other. (Calm returns and the audience and you can concentrate fully on your presentation again.)

The Palmer vils has two unbalanced RCA inputs. You can use a standard Y cable with 3.5 mm jack to connect to the headphones output on the laptop. The vils sums both stereo channels to mono so that you only require one free microphone input for the connection to the PA.

The Palmer vils is extremely easy to use and its passive operation means it does not need a power supply. A resistor network and a transformer, which simultaneously balances the signal, ensure an optimal adjustment of level and impedance. This means that there is no interference even with longer cable runs.

With the Palmer vils, you can be sure that your presentations are as crisp and clear as they sound at home.

Pris 1.049,00 kr.

På fjernlager

Palmer Two Channel Unbalanced Line Isolation Box
search

Palmer Two Channel...

RIVER enz

When connecting a media player or a laptop to a HiFi- or PA system, you often experience noise such as hum and buzz caused by ground loops. With the Palmer enz,

With the Palmer enz, you can be sure that such annoying interference signals do not occur anymore!

The cause of this interference lies mostly in ground potential differences, which result in stray DC currents via the audio lines. The solution is to place a transformer between the two devices to isolate the ground line. Palmer enz has two of these transformers for its two channels. Its inputs and outputs are RCA sockets, which are common for HiFi and consumer equipment. However, the sound quality will also satisfy professionals, since the sound remains unaltered.

This makes the enz Line Isolation Box a useful problem solver for home or car HiFi systems and PA systems from conference rooms to nightclubs. A Line Isolation box simply belongs in every DJ's kit. Whenever there is buzzing and humming, the Palmer enz brings silence with a touch of a button.

Pris 1.199,00 kr.
