. Jack TS - angled plug .

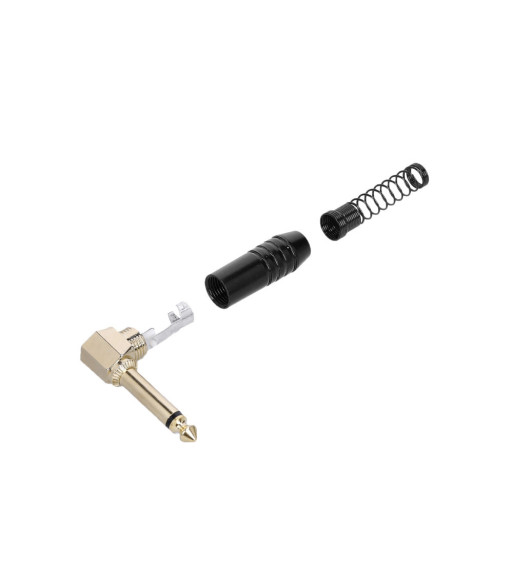

Jack TS | angled plug
search
  • Jack TS | angled plug

Jack TS - angled plug

29,00 kr.
Inkl. moms
4 STAR C JM2 A BLK

Our large selection of different plugs includes this 6.3 mm jack plug from our 4 Star series. The cable is connected to the plug by soldering and the metal strain relief gives the whole structure the necessary stability at the end.

Antal
På fjernlager

Ref: K4CJM2ABLK

  • TS Jack connector from our 4 STAR SERIES
  • Unbalanced angled jack plug
  • Strain relief made from metal
  • With spring bending protection
  • Suitable for cables with a diameter of min 5 mm

General

Plug type6.3 mm Jack TS angled
Plug contactGold plated

Line

Connection typeSoldering contacts

Housing

Chassis materialZinc cast
Suitable cable diameter5 - 7.5 mm

Dimensions & weight

Length46.3 mm
Diameter12.5 mm
Depth46.5 mm
Weight23 g
Adam Hall Connectors
K4CJM2ABLK

Specifikke referencer

10 andre varer i den samme kategori:

Neutrik Jack TS Neutrik silentPLUG® | angled plug with gold-plated contacts
search

Neutrik Jack TS Neutrik...

NP2RX-AU-SILENT

2 pole right angle 1/4" professional phone plug, gold plated contacts, red coating, silent switch

The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 10 '000 mating cycles. The new PX silentPLUG features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection.

Features & Benefits
  • Avoid pops and squeals
  • Hermetically sealed switching contacts
  • Lifetime beyond 10'000 mating cycles
  • Slim plug with industry proven and reliable chuck type cable strain relief
  • Sleek attractive design for convenient handling and connections
  • Rubber overlay on straight housing for best shock-protection and reliability
  • L-D versions available which accommodates cable O.D. up to 8 mm

ATTENTION: For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output.

Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks thtat tap to activate the guitar power supply.

Pris 149,00 kr.

På fjernlager

Neutrik Jack TS Neutrik® | with gold-plated contacts
search

Neutrik Jack TS Neutrik® -...

NP2X-B

2 pole 1/4" professional phone plug, gold contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact
Pris 59,00 kr.

På fjernlager

Neutrik Jack TS Neutrik silentPLUG® | with gold-plated contacts
search

Neutrik Jack TS Neutrik...

NP2XX-SILENT

2 pole 1/4" (6.35 mm) professional phone plug, gold plated contacts, rubberized surfaces for best haptic experience, "silent switch"

The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 1'000 mating cycles.

Pris 159,00 kr.

På fjernlager

Jack TS female Neutrik® | Flat angled plug version
search

Jack TS female Neutrik® -...

4 STAR C JM2 FL

Our large selection of different plugs in the 4 Star Series includes this small, flat and angled 6.3 mm jack plug. Not only as an extremely flat solution for little strain on the instrument socket, but also as a visual eye-catcher and vintage-style solution. Cables with a diameter of 4 - 7 mm can be accommodated here. The solderable contacts are protected with a cover that is fastened with screws.

Pris 29,00 kr.

På fjernlager

Jack TRS | angled plug
search

Jack TRS - angled plug

3 STAR C JM2 A

Die Verbindung des Kabels am Stecker erfolgt durch Löten und die metallische Zugentlastung gibt dem ganzen Gebilde am Ende die nötige Stabilität. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end.

Pris 39,00 kr.

På fjernlager

Neutrik Jack TS Neutrik® | angled plug
search

Neutrik Jack TS Neutrik® -...

NP2RX

1/4" professional right-angle phone plug, 2 pole, nickel contacts, nickel shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
  • All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact
Pris 59,00 kr.

På lager

Jack TS
search

Jack TS

4 STAR CJM2

Our large selection of different plugs includes this 6.3 mm jack plug from our 4 Star series. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end, also thanks to the heat shrink tubing.

Pris 29,00 kr.

På fjernlager

Jack TS
search

Jack TS

3 STAR C JM2

Our large selection of different plugs includes this 6.3 mm jack plug with unbalanced contacts. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end.

Pris 29,00 kr.

På fjernlager

Neutrik Jack TS Neutrik® | angled plug
search

Neutrik Jack TS Neutrik® -...

NP2RX-BAG

2 pole right-angle 1/4" professional phone plug, nickel contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
  • All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact
Pris 59,00 kr.

På fjernlager

Jack TS | with gold-plated contacts
search

Jack TS - with gold-plated...

3 STAR C JM2 GOLD

Our large selection of different plugs includes this 6.3 mm jack plug with unbalanced contacts. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end.

Pris 29,00 kr.

På fjernlager
