  • Neutrik Jack TRS chassic connector female Neutrik®

Neutrik Jack TRS chassic connector female Neutrik®

89,00 kr.
Inkl. moms
NJ3FP6C

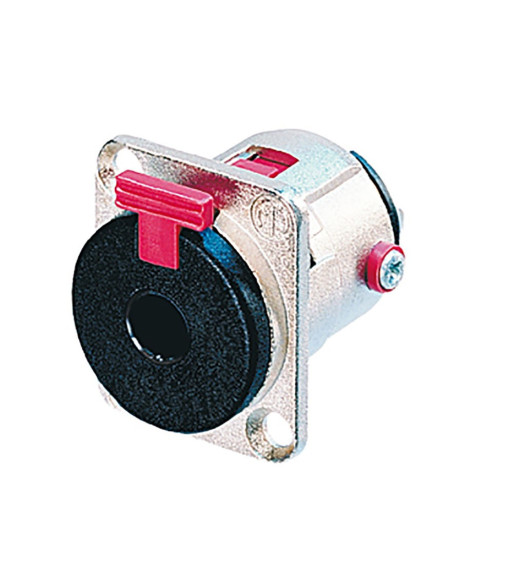

Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.

Antal
På fjernlager

Ref: NJ3FP6CSB

  • Securely locking chassis jack
  • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
  • Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
  • Dimensionally compatible with D Series (31 x 26 mm)
  • Solder terminals

Product typePlugs and Connectors
TypeJack Connectors
Poles3
Genderfemale
Contactssilver plated
Rated current per contact10 A
Connection typesolder contacts
Temperature range70 - -25 °C
Housingdie-cast zinc
Chassis shapeD
Width26 mm
Height31 mm
Depth37 mm
Standards complianceEIA RS 453
Standards complianceIEC 60603-11
Weight0,026 kg
Additional informationin D-type housing
NEUTRIK
NJ3FP6CSB
