LD Systems In-Ear Monitoring-System - 655 - 679 MHz

2.329,00 kr.
Inkl. moms
U306 IEM

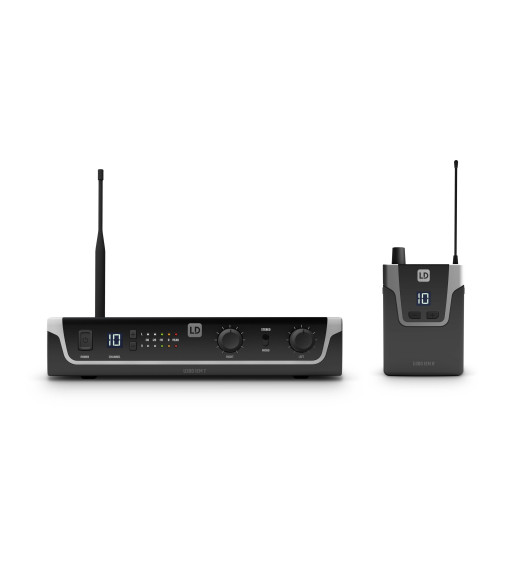

We have developed the wireless U300® in-ear monitoring systems for unlimited freedom of movement on the stage with perfect in-ear monitor sound at all times. Developed in Germany, their clear, modern design and straightforward operation make them the perfect choice _ not just for beginners. Their reliable range of up to 100 m and their low-reaching frequency band of 50 Hz to 16 kHz ensure professional performance. U300® in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz+ 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.

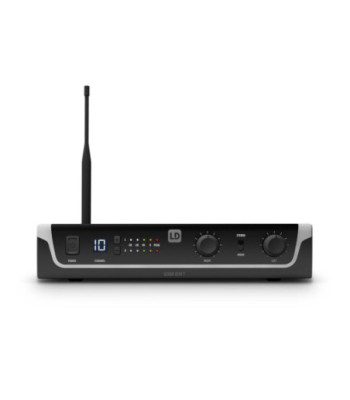

The U300® in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also be operated in mono or stereo mode. Combo sockets serve as symmetrical XLR and asymmetrical 6.35 mm jack inputs. Left and right input levels can be controlled separately, while two LED chains indicate audio signal strength.

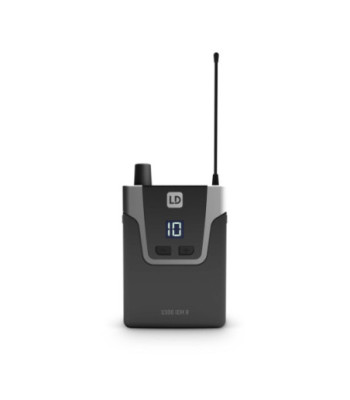

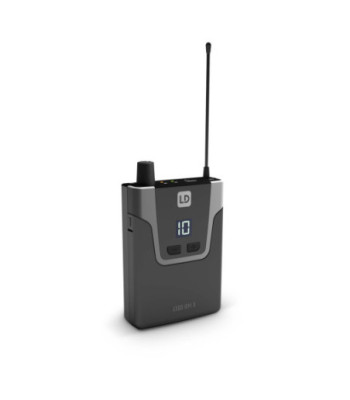

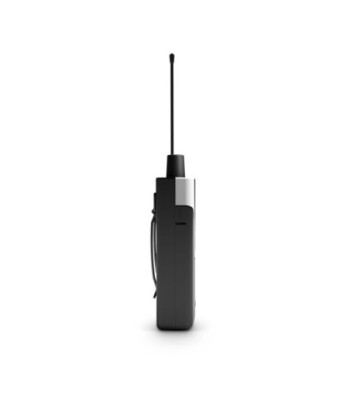

The U300® bodypack receiver has a mini jack socket to connect the earphones as well as displays for channel, stereo mode and low battery status. Running on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19" rack assembly kit included.

Antal
På fjernlager

Ref: LDU306IEM

  • Reliable wireless transmission with a range of up to 100 m
  • Low-reaching frequency response
  • 12 selectable channels
  • Choice of stereo or mono mode
  • Up to 6 systems can be used simultaneously
  • 10-hour bodypack operating time with two AA batteries
  • Unlimited number of bodypacks can be set to the same transmission frequency
  • Channel and RF reception displayed on bodypack
  • Transmitter in rugged metal casing with stereo level display
  • Removable antenna with BNC connection
  • 19" rack assembly kit included.

Product typeIn-ear Monitoring Accessories
Product typeIn-ear Monitoring Accessories
Product typeIn-ear Monitoring
TypeReceivers
TypeTransmitters
Transmission frequency range655 - 679 MHz
Transmission frequency range655 - 679 MHz
TypeSet
Transmission frequency range655 - 679 MHz
Channels12
Channels12
Modes of operationmono/stereo
Transmission methodFM, mono/stereo
Weight1,51 kg
Frequency response50 - 16.000
Transmission methodFM, mono/stereo
Rated HF output power10 mW
Frequency response50 - 16.000
Total Harmonic Distortion (THD)0.25 %
Signal-to-noise ratio90 dB
Total Harmonic Distortion (THD)<0,5%
Audio output3.5 mm TRS
Minimum connected impedance16 Ohm(s)
Max. audio output level100 (@ 16 Ohms load capacity) mW
Max. audio output level73 (@ 33 Ohms load capacity) mW
Dynamic range88 dB
Antenna connectorFixed to housing
ControlsChannel down
ControlsChannel up
ControlsOn/off switch
Controlsvolume control
Inputs2
Input connectors6.3 mm jack
Input connectorsXLR
Input impedance (kOhms)8.5 kOhm
IndicatorsLC display
IndicatorsRF (LED)
Input sensitivity-4.5 dbu
Power supply2 x 1.5 V AA
Operating time< 10 hours
Width64 mm
Antenna connectorBNC
Controlsinput level
ControlsMono/stereo switch
ControlsPower On/Off
Height103 mm
Depth24 mm
IndicatorsLC display
Power consumption1.7 W
Power supply12 - 18 V DC
Weight0,085 kg
Width212 mm
Featuresbattery status LED
Featuresincl. batteries
Height43 mm
Depth123 mm
Weight0,66 kg
Accessories (included)19" Rack mount kit
Accessories (included)BNC-Antenna
Accessories (included)Power supply
