. 15W0v3-4 15-tommer (380 mm) subwoofer-driver, 4 _ .

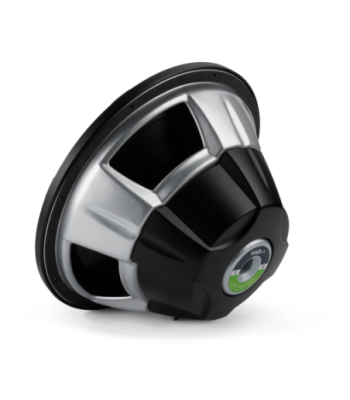

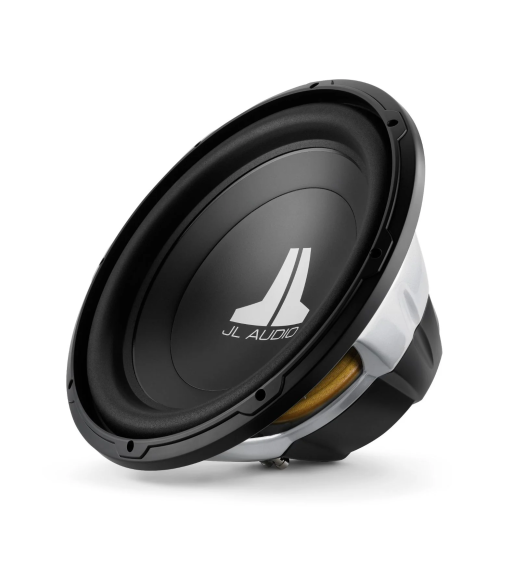

15W0v3-4 15-tommer (380 mm) subwoofer-driver
search
  • 15W0v3-4 15-tommer (380 mm) subwoofer-driver
  • 4 _

15W0v3-4 15-tommer (380 mm) subwoofer-driver, 4 _

2.699,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: JL15WOV34

Kontinuerlig strømhåndtering (RMS) 500 W
Anbefalet forstærkereffekt (RMS) 150 - 500 W
Nominel impedans (Znom) 4 _
Nominel diameter 15,0 tommer / 380 mm
Samlet diameter (A) 15,5 tommer / 394 mm
Monteringshulsdiameter (B) 13,75 tommer / 349 mm
Bolthulscirkeldiameter (C) 14,56 tommer / 370 mm
Motor ydre diameter (D) 6,3 tommer / 160 mm
Monteringsdybde (E) 7,15 tommer / 182 mm
Driver forskydning 0,109 cu ft / 3,09 L
Nettovægt 15,8 lb / 7,2 kg
Fri luftresonans (Fs) 24,43 Hz
Elektrisk "Q" (Qes) 0,508
Mekanisk "Q" (Qms) 9,474
Total højttaler "Q" (Qts) 0,482
Tilsvarende overholdelse (Vas) 5.106 cu ft / 144.60 L
Envejs lineær udflugt (Xmax)* 0,50 tommer / 12,7 mm
Referenceeffektivitet (nej) 0,18 %
Effektivitet (1 W / 1 m)** 88,20 dB SPL
Effektivt stempelområde (Sd) 122,317 sq in / 0,0789 sq m
DC modstand (Re) 3.555 _
Vægtykkelse 0,75 tommer / 19 mm
Forreste baffeltykkelse 0,75 tommer / 19 mm
Volumen (netto int.) 1.875 cu ft / 53.10 L
Udvendig bredde (W) 16 tommer / 406 mm
Ekstern højde (H) 15,75 tommer / 400 mm
Ekstern dybde (D) 18 tommer / 457 mm
F3 38 Hz
Fc 47,14 Hz
Qtc 0,9301
Vægtykkelse 0,75 tommer / 19 mm
Forreste baffeltykkelse 0,75 tommer / 19 mm
Volumen (netto int.) 2,75 cu ft / 77,88 L
Udvendig bredde (W) 20 tommer / 508 mm
Ekstern højde (H) 18 tommer / 457 mm
Ekstern dybde (D) 18,5 tommer / 470 mm
Intern portdiameter (ID) 4 tommer / 102 mm
Portlængde (L) 16,85 tommer / 428 mm
Tuning Frequency (Fb) 25 Hz
F3 30 Hz
JL15WOV34

Specifikke referencer
