LD Systems U506 R2 - Dual receiver + headset og beltpack TIL UDLEJNING

400,00 kr.
Inkl. moms

We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound, reliability and ease of operation.

With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500® Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.

Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.

U500® vocal and instrument sets are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time.

The U500® conference system can be extended to a maximum of 20 terminals and provides effective communication with excellent speech intelligibility.

Antal
Sidste elementer på lager

Ref: LDU506R2+

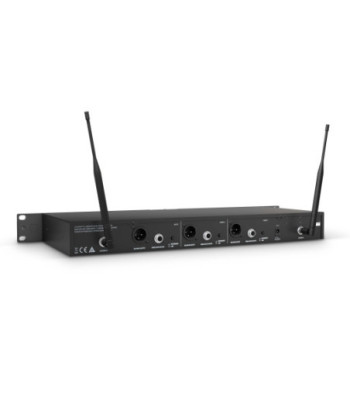

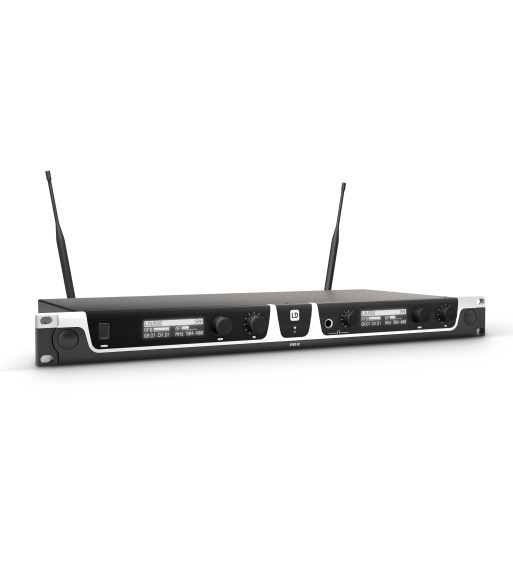

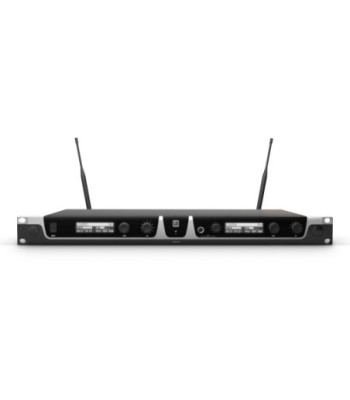

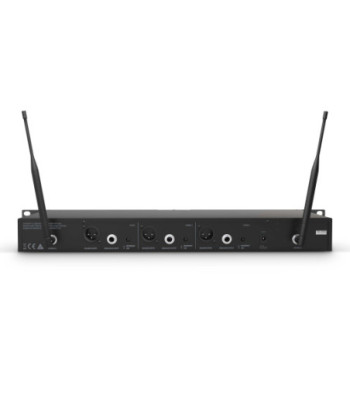

U506 SPECS
Product type: Wireless Microphone System Accessories
Type: true diversity
Modulation Type: FM
Transmission frequency range: 655 - 679 MHz
Channels: 2 x 96 (8 groups of 12 channels)
Groups: 8
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30 - 16000
Noise reduction: Squelch
Signal-to-noise ratio: > 105 dB
Audio output, balanced: 2 x XLR
Audio mix output, balanced: XLR
Audio mix output, unbalanced: 6.3 mm jack
Max. output level: symmetrical -8 dBu
Headphones ouput: 1
Headphones outputs: 6.3 mm TRS
Controls: volume headphones
Indicators: 2 x audio level, 2 x HF level A/B, 2 x multifunction LC display
Power supply: 1,000 mA, 13.5 V DC
Width: 483 mm
Height: 45 mm
Depth: 190 mm
Weight: 2,05 kg
Accessories (included): 2 x antenna, Batteries, Power supply
Other features: channel search function, IR frequency synchronisation

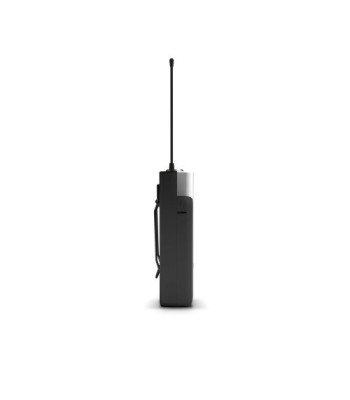

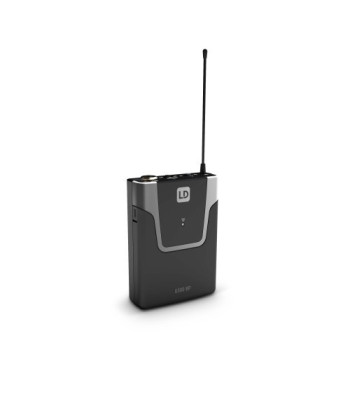

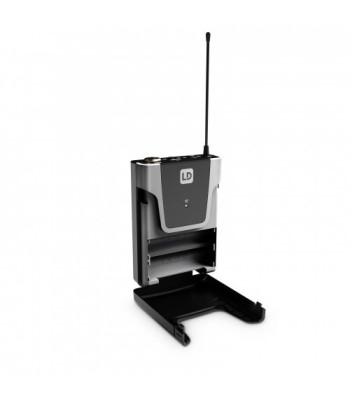

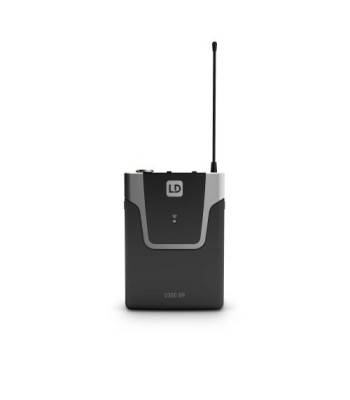

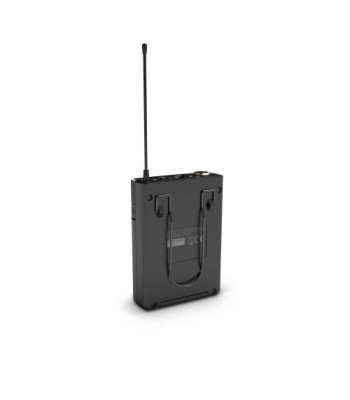

U306 SPECS
Product type: Wireless Microphone System Accessories
Type: Bodypack
Transmission frequency range: 655 - 679 MHz
Channels: 12
Groups: 1
Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response: 25 - 16,000
Signal-to-noise ratio: 104 dB
Rated HF output power: 10 mW
Controls: Gain (3-way switch), Power On/Off
Indicators: ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Power supply: 2 x AA battery
Operating time: > 10 h
Width: 65 mm
Height:91 mm
Depth: 25 mm
Weight: 0,085 kg
Other features: Belt clip, IR frequency synchronisation, Pilot tone
Headset LDWS100MH1
LD Systems
LDU506R2+
1 Enhed
