ATEN HDMI Cat5 Extender 60 m VE803-AT-G

1.799,00 kr.
Inkl. moms

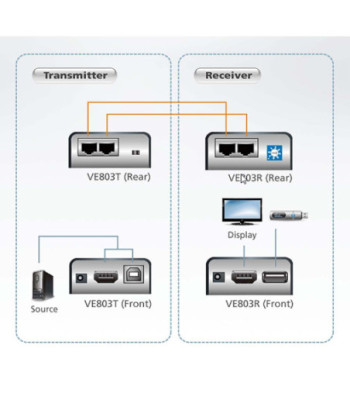

_ Uses two Cat 5e cables to connect the local and the remote units
_ Extends 1080p by 40m; extend 1080i by 60m
_ Superior video quality _ HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
_ Supports USB touch panel
_ 8 segment equalization adjustment switch optimizes display quality
_ Support Dolby True HD and DTS HD Master Audio
_ Built-in 8KV/15KV ESD protection
_ Transparent USB Support _ supports all USB 2.0 full speed device (up to 12 Mbps)
_ Supports wide screen formats
_ HDMI (3D, Deep Color); HDCP compatible _ signaling rates up to 2.25Gbits
_ Powered local unit via USB cable

Antal
På fjernlager

Ref: VE803-AT-G

Produktspecifikationer

Bredde 59 mm
Højde 160 mm
Dybde 239 mm
Vægt 495 g
Farve Sort
Materiale Metal
Strømkilde type Strømforsyning
Emballagetype Gaveæske
Aspect ratio 16:9
Stik Euro / Type-C (CEE 7/16)
Understøttet teknologi Full HD
HDCP
Deep Color 30/36 bit
Urfrekvens 225 MHz
Modtagerudgang 1x HDMI_ Output
1x USB A Female
Modtagerindgang 2 x RJ45 Hunstik
Transmitterudgang 2 x RJ45 Hunstik
Transmitterindgang 1x HDMI_ Input
1x USB B Female
Sendetype Over Cat6
Funktionsstyring Automatisk
Enhedstype Extender
Antal produkter i pakken 1 stk.
Maksimal opløsning 1920x1080
Type elektronisk enhed HDMI
Version Cat5
Datahastighed 6.75 Gbps
Afstand op til 60 m
Strømforbrug i driftstilstand 3.9 W
HDCP-version HDCP 1.3 Compatible
Lydunderstøttelse Ja
VE803-AT-G
