. Bakkamera Interface til Opel og Chevrolet .
Bakkamera Interface til Opel og Chevrolet
search
  • Bakkamera Interface til Opel og Chevrolet
  • Bakkamera Interface til Opel og Chevrolet

Bakkamera Interface til Opel og Chevrolet

3.599,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL4R40E

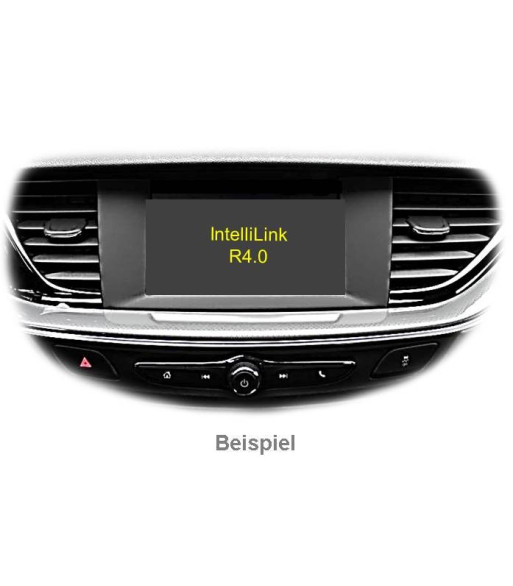

r.LiNK video inserter for rear-view-camera, front camera with auto switching and 2 further video-inputs. Compatible with Opel vehicles and Chevrolet Camaro with Radio R4.0 IntelliLink (only 7inch monitor with separate radio box).

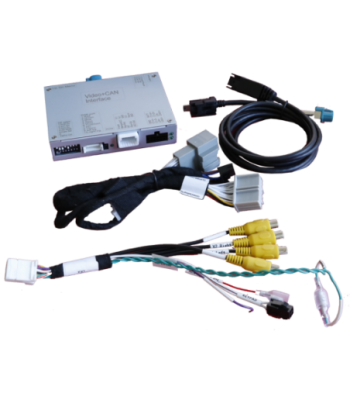

The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.

Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

BrandModelInfotainment
Chevrolet Camaro model years from 2016 MyLink - 7inch monitor with separate radio-box
Opel Astra K (Sports Tourer and 5-door) model years from 2016 til 2019,
Insignia B model years from 2017 til 06/2018,
Karl til 03/2018		 R4.0 IntelliLink - 7inch monitor with separate radio-box




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. In case that 2 AV sources shall be connected, a desired audio switching will require additional electronic.
Factory rear-view camera Automatic switch to factory rear-view camera only while reverse gear is engaged. To delay the switch reset, additional electronics is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Guide lines Due to the frequent changes by the vehicle manufacturers, the displaying of guide lines doesn_t succeed in several vehicles.




Connectors

  • Video-insertion: Mini USB
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 15mA
Current consumption 160mA@12V
Video input 0.7~1V
Video input formats PAL/NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 117 x 25 x 105mm (W x H x D)
NA-RL4R40E
