Bakkamera Interface til Mercedes - NTG5

3.499,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL4MBN51

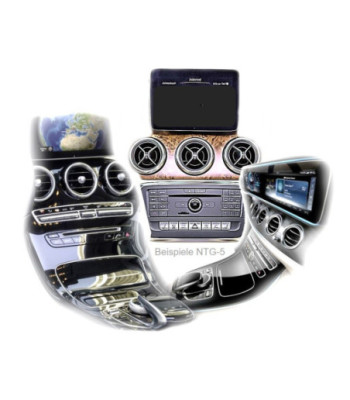

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Mercedes Benz vehicles generation NTG5-205 oder NTG5.1 with Comand Online or Audio20.



The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

BrandModelNavigation
Mercedes Benz A-class (W176) from 09/2015 til 04/2018,
B-class (W246) from 11/2014 til 11/2018,
C-class (W205) til about 06/2018,
C-class coupe (C205) from about 2015,
CLA-coupe (C117) from about 10/2014 til 02/2019,
CLA-shooting B (X117) from 03/2015 til 06/2019,
CLS-coupe (C218) from about 08/2014 til 01/2018,
CLS shooting B (X218) from about 08/2014 til 2019,
E-class (S/W212) from about 11/2014,
E-class coupe (A/C207) from about 06/2015 til 08/2017,
G-model (W463) from 10/2016 til 04/2018,
GL-class (X166) from about 09/2016,
GLA-class (X156) from 09/2015,
GLC-class (X253) model year til 2018,
GLE-coupe (C292) model year til 2018,
GLE SUV (W166) model year til 2018,
GLS-class (X166) from about 11/2015 model year til 2018,
GT AMG (C190),
ML-class (W166) from 08/2015,
SL-class (R231) from about 10/2015,
SLC-class (R172) from 2016,
V-class (W447) from 2014 til about 02/2020,
X-class (BR470) from 11/2017		 Comand Online NTG5-205
Audio20 CD NTG5-205
Audio20 USB NTG5-205
Comand Online NTG5.1
Audio20 NTG5.1




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For sound use an FM-modulator. Only for Comand Online NTG5-205, the optional OBD-coder for factory audio-AUX is available (OBD-N5-X- 01). If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatical switching to Rear Rear View Camera as long as the Rerverse Gear is enganged. To delay the Switch-Back additional Electronics is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Guide lines If the video interface does not receive the required information from the vehicle CAN-bus, the guide-lines will not be supported.

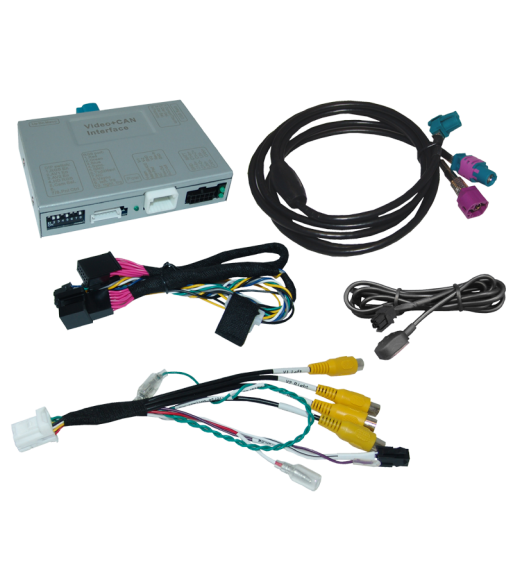

Connectors

  • Video-insertion: 4-pin HSD
  • Power: Open cable ends
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 10mA
Current consumption 280mA
Video input 0.7~1V
Video input formats PAL/NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 117 x 25 x 105mm (W x H x D)
NA-RL4MBN51
