Bakkamera Interface til Jaguar/Land Rover - 8" Skærm - Navi Version 4

4.999,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL4LR16-8

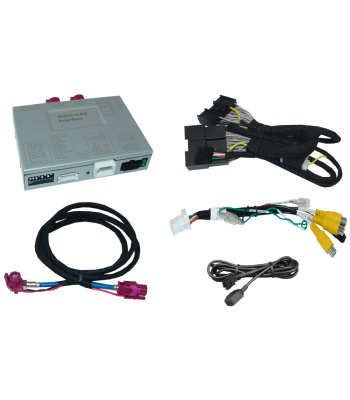

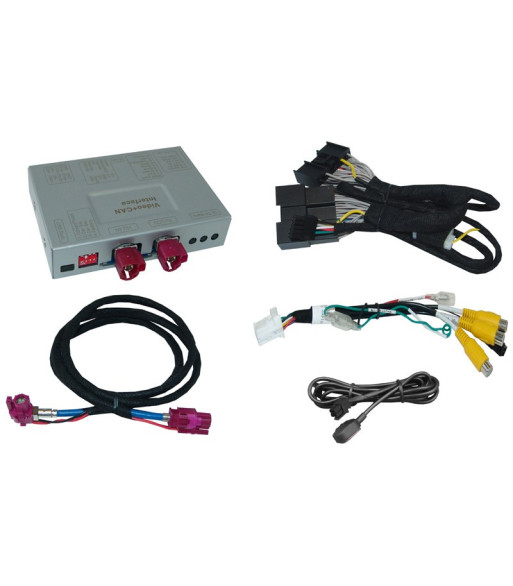

r.LiNK video inserter for rear-view camera and 2 video-sources. Compatible with Land Rover and Jaguar with 8 inch Incontrol Touch (model years 2016-). Pnp for APIX2.

The r.LiNK interface allows to insert a rear-view camera and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS Rear-view camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

BrandModelNavigation
Jaguar F-Pace,
F-Type,
XE,
XF,
XJ

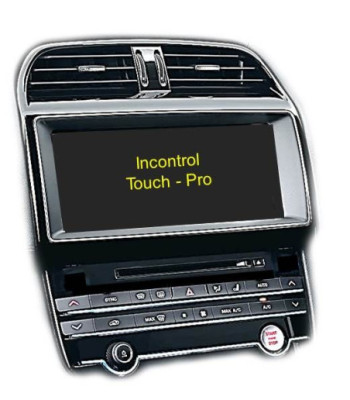

--- model year 2016 ---		 Incontrol Touch - 8 inch 16:9 monitor with touch-screen menu 4
NOT compatible with Dual-View monitor!
Land Rover Discovery4 model year from 2014,
Discovery Sport model year from 2015,
Range Rover Evoque model year from 2014,
Range Rover Sport model year from 2014 til 2016,
Range Rover model year from 2014 til 2016,
Freelander2 model year 2014		 Incontrol Touch - 8 inch 16:9 monitor with touch-screen menu 4
NOT compatible with Dual-View monitor!




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM- modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
PDC and guidelines If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported.
Video input signal Only NTSC video sources compatible




Connectors

  • Video-insertion: 4+2pin HSD+2
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current <11mA
Current consumption 230mA
Video input 0.7~1V
Video input formats NTSC
Operating temperature range -40°C to +85°C
Dimensions video-box 118 x 25 x 105mm (W x H x D)
NA-RL4LR16-8
