Bakkamera Interface til Ford Sync3

4.699,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL4SY3

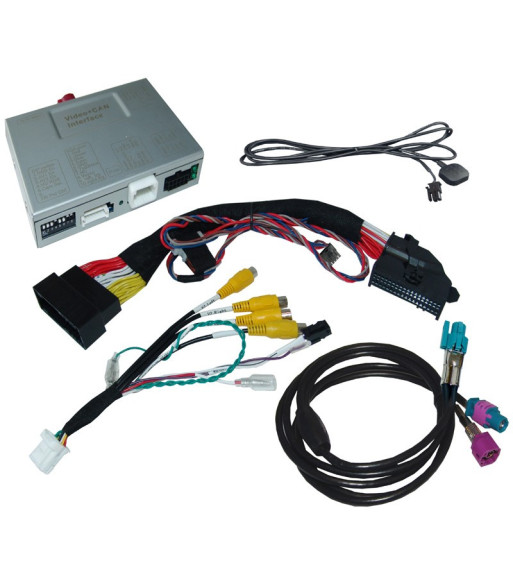

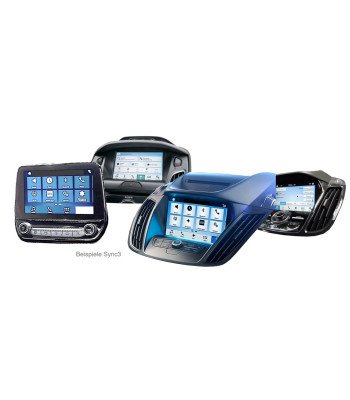

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Ford vehicles with Sony Sync3 full version with APIM and with 7inch or 8inch tablet or non-table monitor.



The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

BrandModelNavigation
Ford C-Max model year from 2018,
Ecosport model year from 2017,
Fiesta model year from 2018 since 07/2017,
Focus model year from 2017,
Galaxy model year from 2016,
Kuga model year from 2018,
Mondeo from about 2017,
Mustang model year from 2017,
Puma,
Ranger model year from 2017,
S-Max model year from 2016,
Tourneo Connect,
Tourneo Custom,
Transit Custom from facelift 2018,
and other vehicles with		 Sync3 full version with APIM and with 7inch or 8inch tablet or non-table monitor
Only up to Sync3 with firmware 3.3




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio- AUX-input or a FM-modulator can be used. In case that 2 AV sources shall be connected, a desired audio switching will require additional electronic.
Factory rear-view camera Automatically switching-back from inserted video to factory rear- view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Guide lines Displayed guidelines are not available in all vehicles.




Connectors

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector



Specifications

Operating voltage 7~25V DC
Standby current <10mA
Current consumption 200mA@12V
Video input 0.7~1V
Video input formats PAL/NTSC
Operating temperature range -40°C to +85°C
Dimensions video-box 118 x 25 x 104mm (W x H x D)
NA-RL4SY3
