Bakkamera interface til Fiat 500e og Ducato 3, med Uconnect5 R1

4.899,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL4UCON10

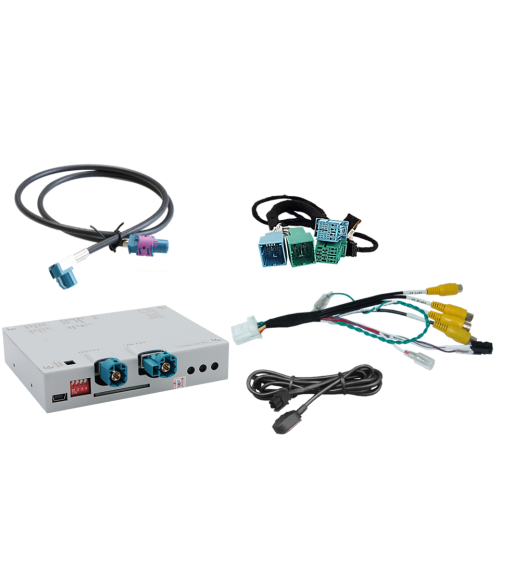

The video interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible

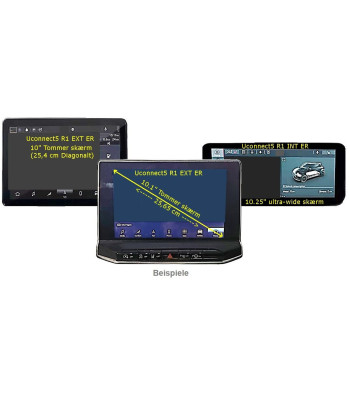

Compatibility

BrandModelNavigation
Alfa Romeo Tonale (965) since 05/2022 Connect 10.25inch or Connect NAV 10.25inch - (R1 INT ER) with ultra-wide tablet monitor with separate head-unit
Fiat Ducato3 (series 8) since model year 2021,
Tipo (356) since model year 2023		 Uconnect5 R1 EXT ER with 10inch tablet monitor with separate head-unit
500, 500e since model year 2019 Uconnect5 R1 INT ER with 10.25inch ultra-wide tablet monitor with separate head-unit
Jeep Compass since model year 2021 Uconnect5 R1 EXT ER with 10.1inch tablet monitor with separate head-unit



Attention: Not compatible with Jeep Compass since model year 2021 with Uconnect5 with 8.4inch tablet monitor and all-in-one head unit.




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Video input signal NTSC video sources compatible only.



Connectors

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 4mA
Current consumption 270mA
Video input 0.7~1V
Video input formats NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 117 x 26 x 103mm (W x H x D)
NA-RL4UCON10
