. Bakkamera Interface til Alfa, Citroen, Fiat, Peugeot .
Bakkamera Interface til Alfa
search
  • Bakkamera Interface til Alfa
  • Citroen

Bakkamera Interface til Alfa, Citroen, Fiat, Peugeot

3.499,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL4UCON5-F

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Alfa Romeo Mito, Citroen, Dodge, Fiat and Peugeot vehicles with Uconnect 5 VP2/RA2 with CD-drive, DIN-shell behind front-panel and 5 inch monitor.



The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two additional video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Bemærk, dette er en skaffe vare med forlænget leveringstid og der ydes ikke returret på bestillingsvarer/skaffevarer, dvs varer som ikke er lagervarer og som hjemtages specifikt til en ordre.

Derfor venligst sikre dig at det er den rigtige vare til din bil.

©au2Tek.dk2021

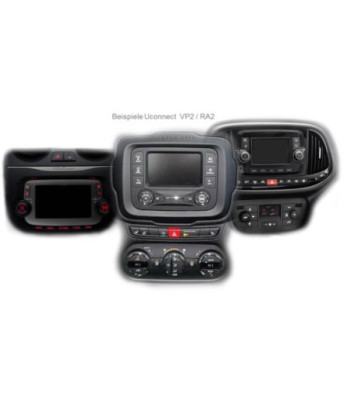

Compatibility

BrandModelNavigation
Alfa Romeo Giulietta,
MiTo from about 2014		 Uconnect 5 VP2/RA2 with CD-drive and DIN-shell behind front-panel
Citroen Jumper from 2014,
Relay from 2014		 Uconnect 5 VP2/RA2 with CD-drive and DIN-shell behind front-panel
Dodge RAM 1500/2500/3500 model year from 2013
and other vehicles with		 Uconnect 5 VP2/RA2 with CD-drive and DIN-shell behind front-panel
Fiat 500,
500L,
Doblo,
Ducato,
Tipo
and other vehicles with		 Uconnect VP2/RA2, 5inch monitor with CD-drive and DIN-shell behind front-panel
Peugeot Boxer model year from 2012 Uconnect VP2/RA2, 5inch monitor with CD-drive and DIN-shell behind front-panel




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.



NOTICE: The interface have to be installed in the monitor panel (the cover needs to be opened)!

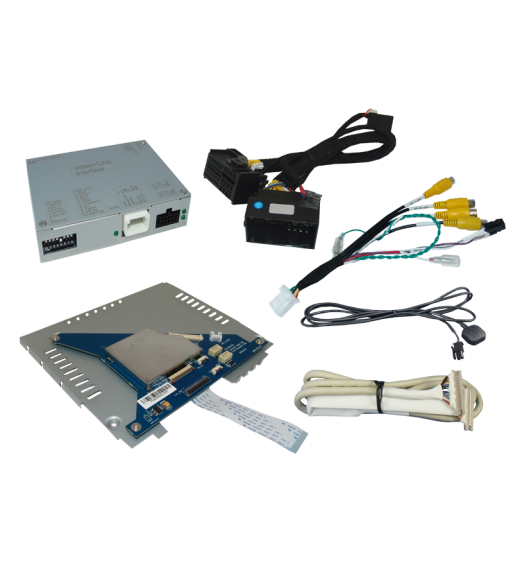

Connectors

  • Video-insertion: Ribbon cable
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 3.6mA
Current consumption 112mA
Video input 0.7~1V
Video input formats PAL/NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 115 x 25 x 89mm (W x H x D)
NA-RL4UCON5-F
