. YAMAHA 2-way powered loudspeaker with a 2_ HF and a 15" LF. Dante version. White version. - CDZR15DW .
Yamaha DZR 15-D dante aktiv højttaler
search
  • Yamaha DZR 15-D dante aktiv højttaler
  • Yamaha DZR 15-D dante aktiv højttaler

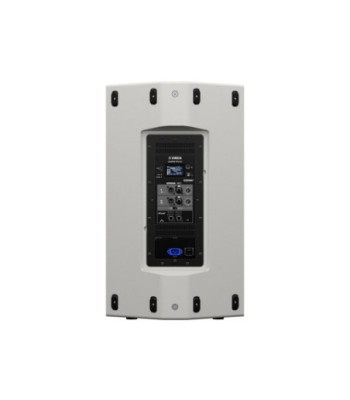

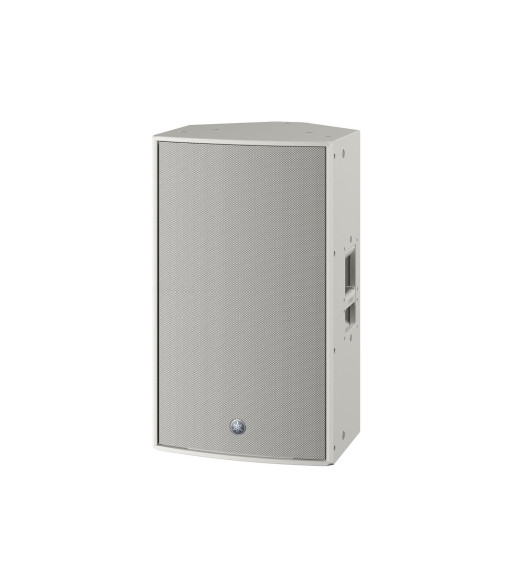

YAMAHA 2-way powered loudspeaker with a 2_ HF and a 15" LF. Dante version. White version. - CDZR15DW

22.149,00 kr.
Inkl. moms
  • 2-way powered loudspeaker with a 2_ HF and a 15_ LF
  • High power 2000W Class-D amplifier module
  • Intuitive LCD display
  • Floor monitoring setting
  • Lightweight yet very durable plywood cabinet
  • Rotatable horn
Antal
På fjernlager

Ref: CDZR15DW

General specifications
Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB) 34Hz _ 20kHz
Coverage area H90_ x V50_ (Rotatable)
Components LF 15_ Cone, 3_ Voice Coil, Neodymium magnet
MF _
HF 2_ Voice Coil, 1_ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 1.7kHz (FIR-X)
Sampling frequency rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 139dB SPL *1
SRC Yes
Power rating Dynamic 2000W (LF:1000W, MF/HF: 1000W) *2
Continuous 1300W (LF: 920W, MF/HF: 380W)
I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k_, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Digital I/O Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 45W (Idle), 150W (1/8)
Handle Aluminium die-cast, Side x2
Rigging M10 x12
Dimensions W 450 mm (17.7_)
H 761 mm (30.0_) (with rubber feet)
D 460 mm (18.1_)
Net weight 25.2kg (55.6lbs)
Options U-bracket: UB-DZR15H/V, Cover: SPCVR-DZR15
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle 50° Symmetrical
Pole socket _35 mm x2 (0° or -7°)
Yamaha
CDZR15DW
