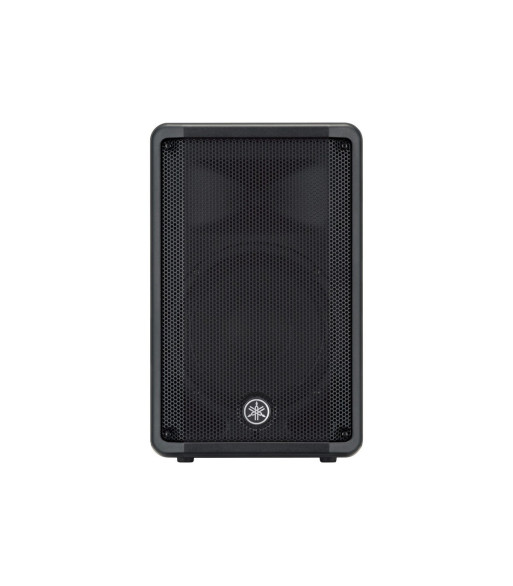

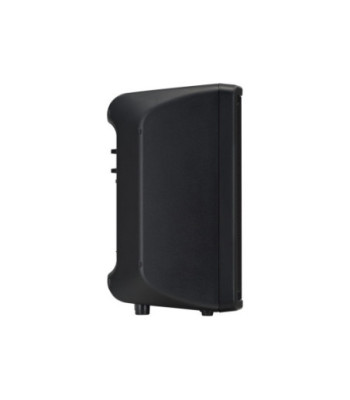

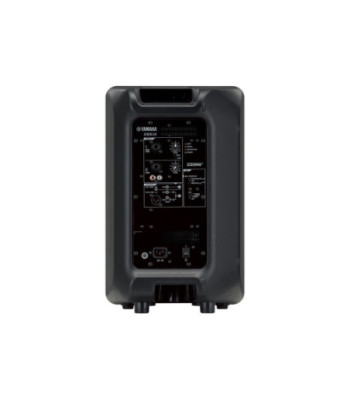

YAMAHA 10" 2-way Active Loudspeaker System. 48-bit digital sound processing. - DBR10

4.439,00 kr.
3.205,00 kr. Spar 1.234,00 kr.
Inkl. moms
  • 700 W Class-D effekt med SPL på 129dB
  • Specialdesignede transducere til krystalklar lyd med fremragende dynamik
  • Topmoderne DSP og teknologier fra Yamahas professionelle DSR- og DXS-serie
  • Intuitiv 2-kanals mikser med alsidig tilslutning til en lang række udstyr
  • Robust og pålidelig med et kompakt og let design til fremragende bærbarhed
Antal
På fjernlager

Ref: CDBR10

Specifikationer

  • Systemtype: 2-vejs, bi-amp-powered højttaler, basreflekstype
  • LF Driver: 10''-kegle, 2''-voice coil, ferrite-magnet
  • HF Driver: 1'' komprimeringsdriver, 1'' hals, ferrite-magnet
  • Dækningsvinkel: 90° x 60° konstant direktivitetshorn (H x V)
  • Frekvensområde: 55Hz - 20kHz (-10dB)
  • Maksimal SPL: 129dB SPL (1m, på akse)
  • Udgangseffekt:
    • Dynamisk: 700W (LF: 500W, HF: 200W)
    • Uafbrudt: 350W (LF: 260W, HF: 65W)
  • Delefiltertype: FIR-X Tuning_ (Lineær fase FIR filter)
  • Delefilter Frekvens: 2.1kHz
  • Behandling: D-CONTOUR
    • FOH/MAIN
    • MONITOR
    • OFF

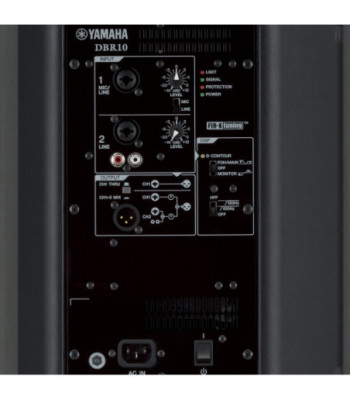

  • Kontrol:
    • Niveau (x 2)
    • Linje/mikrofon
    • HPF
    • D-CONTOUR
    • THRU/MIX
    • Strøm
  • Indgangsstik:
    • Input 1: Combo x 1
    • Input 2: Combo x 1, RCA x 2 (ubalanceret)
  • Output-stik: XLR3-32 x 1 (CH1 Parallel Through eller CH1 + CH2 Mix)
  • Inputimpedans:
    • Indgang 1: 3 k ohm (XLR, TRS)
    • Indgang 2: 10 k ohm (XLR, TRS, RCA)
  • Indgangsfølsomhed: Niveau - Maksimum
    • Indgang 1 - linje: 0dBu
    • Input 1 - mikrofon: -32dBu
    • Indgang 2: 0dBu
  • Indgangsfølsomhed: Niveau - Center
    • Indgang 1 - linje: + 10dBu
    • Input 1 - mikrofon: -22dBu
    • Indgang 2: + 10dBu
  • Maksimal indgangsniveau:
    • Input 1 - linje: + 24dBu
    • Input 1 - mikrofon: -8dBu
    • Input 2: + 24dBu
  • Gulvmonitorvinkel: 50°
  • Indfatning:
    • Materiale: Plast
    • Finish : Sort
    • Hul til stativ: 35 mm (bund x 1)
    • Håndtag: Top x 1
    • Rigging-punkter: Bund x 2 (passer til M8 x 15mm øjebolte)
  • Køling: Ventilator-køling, 4 hastigheder
  • Strømkrav: 220-240V, 50Hz / 60Hz
  • 1/8 Strømforbrug: 60W
  • Dimensioner: 308mm x 493mm x 289mm / 12,1'' x 19,4'' x 11,4'' (B x H x D)
  • Vægt: 10,5 kg / 23,2 kg
