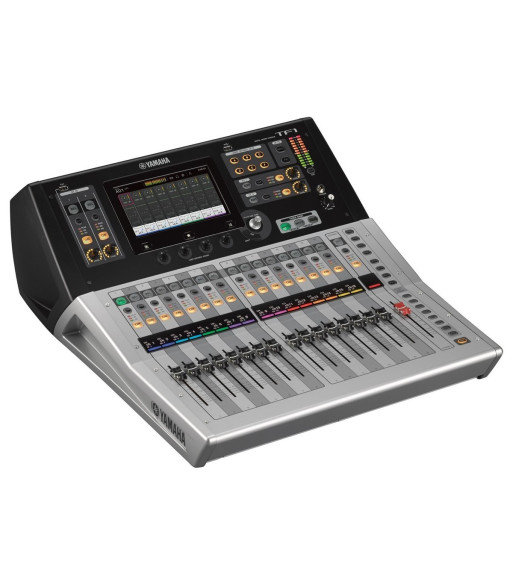

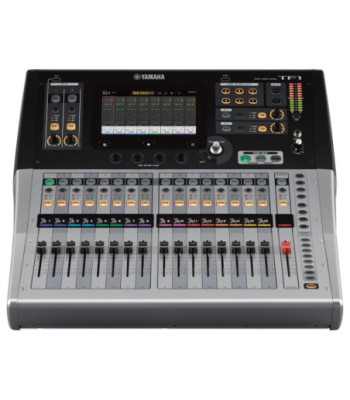

Specs
Outline
Fader Configuration
16 + 1 (Master)
Mixing CapacityInput Channels
40 (32 mono + 2 stereo + 2 return)
Aux Buses
20 (8 mono + 6 stereo)
Stereo Buses
1
Sub Buses
1
Input channel functions
8 DCA Groups

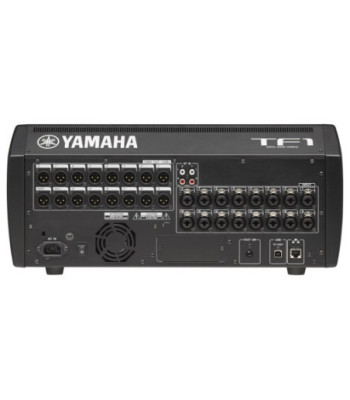

I/OInputs
16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
Outputs
16 (XLR)
Expansion slots
1
On-board processorsDSP
8 Effects + 10 GEQ
General specifications
Sampling frequency rateInternal
48 kHz
Signal delay
Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader
100 mm motorized, Resolution = 10-bit, +10 dB to _138 dB, __ dB all faders
Total harmonic distortion
Less than 0.05% 20 Hz_20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a _18 dB/octave filter@80 kHz)
Frequency response
+0.5, _1.5 dB 20 Hz_20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range
110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise levelEquivalent input noise
_128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise
_85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk
_100 dB (Measured with a _30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements
100_240 V 50/60 Hz
Power consumption
100 W
DimensionsW
510 mm (20.1in)
H
225 mm (8.9in)
D
599 mm (23.6in)
Net weight
13.5 kg (29.8lb)
Accessories
Quick Guide, Power Cord, Nuendo Live
Options
Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
Others
Operating temperature range: 0_40 °C, Storage temperature range: -20_60 °C
Recording/ Playback
| PC/Mac (USB2.0) |
Recording 34 tracks, Playback 34 tracks |
| USB Storage Device |
Recording 2 tracks (USB hard drive/ SSD)*, Playback 2 tracks (USB hard drive/ SSD/ thumb drive) |
Analog input characteristics
| Input Terminals | GAIN | Load
Impedance | For Use With
Nominal | Input Level | Connector | balanced /
Unbalanced |
|---|
| Sensitivity*1 | Nominal | Max. before clip |
|---|
| INPUT1-16 |
+66dB |
7.5K_ |
50-600_ Mics
or 600_ Lines |
-82dBu (61.6V) |
-62dBu (0.616mV) |
-42dBu (6.16mV) |
Combo Jack (XLR-3-31 type *2
or TRS phone *3) |
Balanced |
| -6dB |
-10dBu (245mV) |
+10dBu (2.45V) |
+30dBu (24.5V) |
| ST IN 1,2 |
_ |
10k_ |
600_ Lines |
-30dBV (31.6V) |
-10dBV (316mV) |
+10dBV (3.16V) |
RCA Pin Jack |
Unbalanced |
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
Analog output characteristics
| Output Terminals | Source
Impedance | For Use With
Nominal | GAIN SW | Output Level | Connector | balanced /
Unbalanced |
|---|
| Nominal | Max. before clip |
|---|
| OMNI OUT 1-16 |
75_ |
600_ Lines |
_+24dBu_ position (default)
|
+4dBu (1.23 V) |
+24dBu (12.3 V) |
XLR-3-32 type *1 |
Balanced |
| PHONES *3 |
100_ |
40_ Phones |
_ |
3mW |
75mW |
Stereo Phone Jack (TRS) *2 |
Unbalanced |
*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.
Digital input/output specifications
| Terminals | Format | Data length | Audio | Connector |
|---|
| USB (TO HOST) |
USB |
24bit |
34ch input / 34ch output, PCM |
USB (B type) |
| iPad |
USB |
_ |
Playback: MP3 or WAV file data / Record: WAV file data |
USB (A type) |
Control I/O specifications
| Terminals | Format | Level | Connector |
|---|
| NETWORK |
IEEE802.3 |
10BASE-T/100Base-TX |
RJ-45 |
| FOOT SW |
_ |
_ |
TS Phone |
