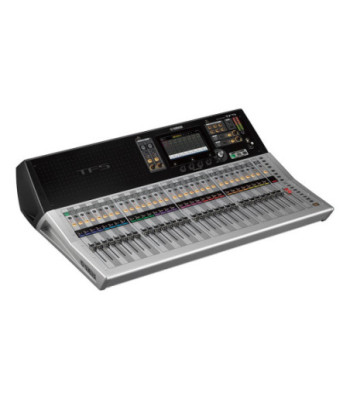

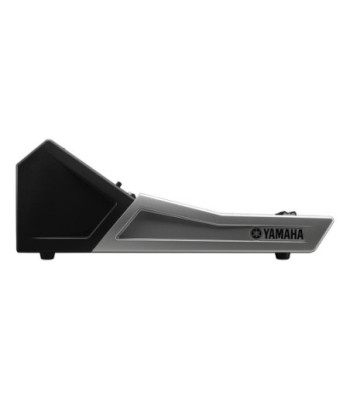

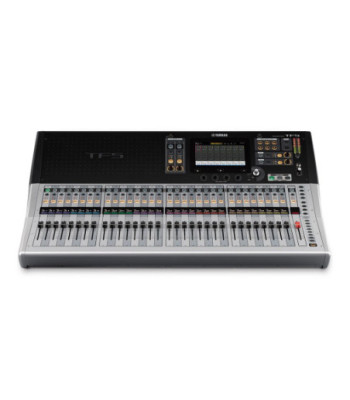

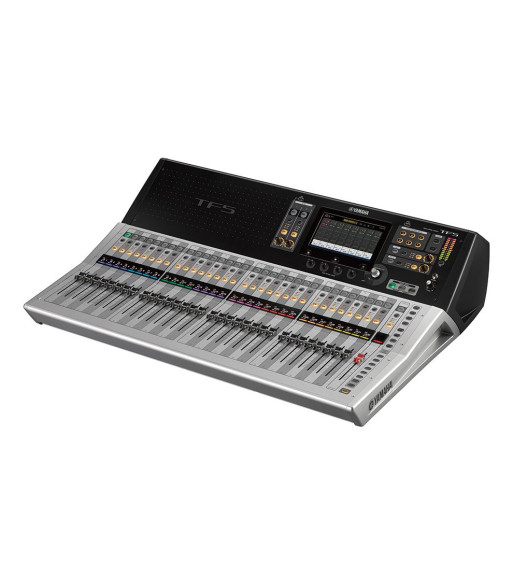

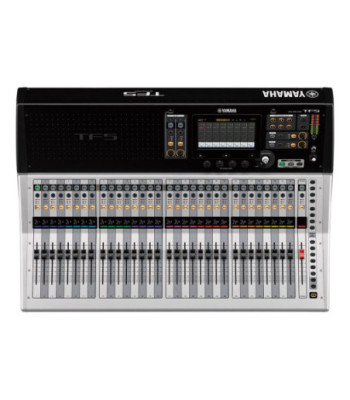

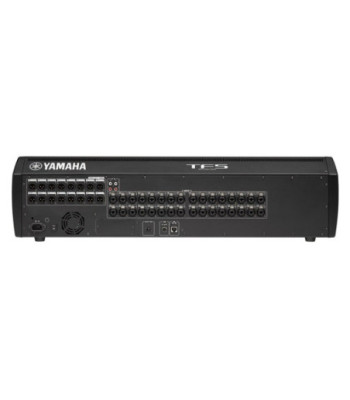

Yamaha TF5 Digital Mixing Console
search
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console
  • Yamaha TF5 Digital Mixing Console

YAMAHA Digital mixer, 40 + 2 St & 2 Return, 20 AUX. - TF5

47.069,00 kr.
Inkl. moms
  • 33 motoriserede fadere (32 kanalfadere + 1 master)
  • 48 inputkanaler til mix (40 mono + 2 stereo + 2 return)
  • 20 Aux (8 mono + 6 stereo) + Stereo + Sub busser
  • 8 DCA-grupper med Roll-out
  • 32 analoge XLR/TRS combo mic/line inputs + 2 analoge stereo phono line inputs
  • 16 analoge XLR outputs
  • 34 x 34 kanalers digital ind- og afspilning via USB 2.0 + 2 x 2 via en USB-stick
  • 1 udvidelses-slot til NY64-D audio interface kort
Antal
På fjernlager

Ref: CTF5

Yamaha TF5 Specs

Mixer
Number of Analog Input Channels 32
Number of Mic Preamps 24
Number of Analog Output Channels 16
Max I/O Capacity 48 x Input / 22 x Output
Mix Routing 1 x Main LRC
1 x Subgroup
6 x Stereo Aux Send
8 x Mono Aux Send
Groups 8 x DCA Group
Presets Yes
Display Touchscreen
Faders & Level Adjustment 33 x 3.9" / 100 mm Motorized Fader
Signal Processing
Gain/Trim Range -6 dB to +66 dB
EQ None
Graphic EQ Yes
Built-In Effects 8 x Effect (Type Unspecified)
Real Time Analyzer Yes
Audio Delay Yes
Digital Audio
Sample Rates 48 kHz
Bit Depth Record:
24-Bit
Converter Dynamic Range D/A:
110 dB
Latency < 2.6 ms (Analog Input to Analog Output)
Performance
Frequency Response 20 Hz to 20 kHz +0.5/-1.5 dB
Max Input Level Mic/Line Input:
+30 dBu
Stereo Input:
+10 dBV
Output Level Output:
+4 dBu (2901653169)
+24 dBu (2901653168)
Analog Dynamic Range 107 dB at Min Gain
Headphone Output Power 3 mW
75 mW (Max)
I/O Impedance Combo XLR-1/4" Input:
7.5 Kilohms
Stereo RCA Input:
10 Kilohms
XLR Output:
75 Ohms
Headphone Output:
100 Ohms
Crosstalk -100 dB
EIN -128 dBu at Max Gain (2901653035)
Noise Floor -85 dBu A-Weighted
THD < 0.05% at Min Gain (+4 dBu)
Signal Generator Yes
Connectivity
Analog Inputs 1 x 1/4" TS Footswitch Input
32 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x Stereo RCA Unbalanced Input
Analog Outputs 16 x XLR Balanced Output
1 x 1/4" TRS Unbalanced Headphone Output
Digital I/O 1 x RJ45 (Network)
MIDI I/O None
USB 1 x USB-B (Host Connection)
2 x USB-A (Control, External Memory)
Expansion Ports 1 x I/O Card
Mobile App Compatible Yes: Android & iOS
App Name: TF Editor, TF StageMix, MonitorMix
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Recording
Max Multitrack Recording 34 Tracks
File Format Support Playback: MP3, WAV
Record: WAV
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 120 W
Rack Mountable No
Dimensions 34.1 x 8.9 x 23.6" / 866 x 225 x 599 mm
Weight 44.1 lb / 20 kg
Packaging Info
Package Weight 57.2 lb
Box Dimensions (LxWxH) 38 x 29 x 13"
Yamaha
CTF5
