HOVEDFUNKTIONER [EN]

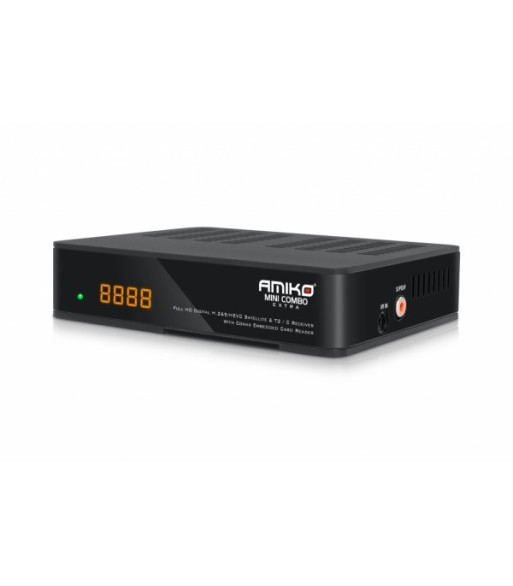

- DVB-S2 Satellite & DVB-T2/C Terrestrial / Combo Receiver
- One Conax Embedded card reader
- H.265 / HEVC Codec support
- 5000 channels (TV and Radio) programmable
- External IR Sensor (Included in the package)
- Two High Speed USB 2.0 Connection
- Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
- YouTube videos
- RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
- DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
- Full HD (1080p) Output via HDMI
- Channel Recording to External Storage Devices (from one frequency only)
- Timeshift support
- Channel Recording & Timeshifting Simulteniously (optional, only from same frequency)
- Channel switching time less than 1 second
- True-color, User Friendly On-Screen Display (OSD)
- Full Picture In Graphic (PIG) function
- Electronic Program Guide (EPG) for on screen channel information
- Subtitle supported
- Teletext supported by VBI insertion and software emulation
- Parental lock facility by channel and program event
- Program and Channel information transfer from receiver to receiver
- Multi-Language support
- RTC (Real-Time-Clock)
- Power Consumption in Stand-By: <0.5W
TEKNISKE SPECIFIKATIONER [EN]
Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 300mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto
Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6
System Resources
Main Processor: up to 2000DMIPS CPU
Flash Memory: 8 MiB
DDR RAM: 256 MiB (DDR3 1866MHz)
MPEG TS A/V Decoding
Transport Stream: MPEG-2, MPEG-4 (H.264)
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: HEVC MP@L4.1, MPEG2 MP@HL, MPEG-4 part 10/H.264
Video Resolution: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080p/i
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital, AAC
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz
A/V & Data Input/Output
AV OUT: Video RGB&CVBS output, Audio L/R output (SCART)
LAN: 10/100M RJ-45 Ethernet Connection
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A, Dolby Digital Bit-Stream Output
S/PDIF: Coaxial
IR: External IR input (jack type)
Physical Specifications
Size[W*H*D]: 144mm x 40mm x 110mm
Net Weight: 0.50 Kg
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
