. Onkyo TX-8270B Network Stereo Receiver with Built-In HDMI, Wi-Fi & Bluetooth .
Onkyo TX-8270 Network Stereo Receiver with Built-In HDMI
search
  • Onkyo TX-8270 Network Stereo Receiver with Built-In HDMI
  •  Wi-Fi & Bluetooth

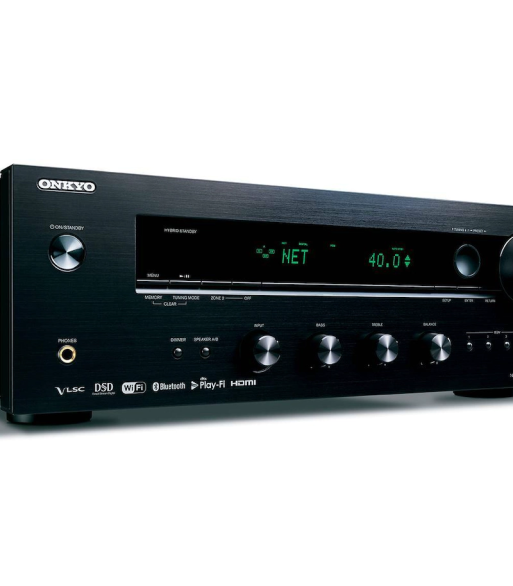

Onkyo TX-8270B Network Stereo Receiver with Built-In HDMI, Wi-Fi & Bluetooth

6.299,00 kr.
Inkl. moms

The TX-8270, is a beautifully engineered 100W/ channel network stereo receiver designed to maximize musical enjoyment and drive your favorite speakers. Built around a massive transformer, audio-grade capacitors, and discrete non-phase-shift circuitry locked into a robust chassis, this amp has high-current power to illuminate cherished vinyl to Hi-Res audio and unmatched connectivity options for audio components.

Antal
På fjernlager

Ref: TX-8270B

Features

AMPLIFIER

Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC) 170, 10% THD
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) 100, 0.08% THD
Dynamic Power 240 W (3 Ohms, Front) 210 W (4 Ohms, Front) 120 W (8 Ohms, Front)
WRAT (Wide Range Amplifier Technology) -
H.C.P.S. (High Current Power Supply) -
Non-Phase-Shift Amp Design _ (for Realistic Sound Imaging)
6 Ohm Capable _
4 Ohm Capable _
Direct/Pure Mode _/-
384K/32 Bit DACs _ (Asahi Kasei AKM4438)
192K/24 Bit DACs -

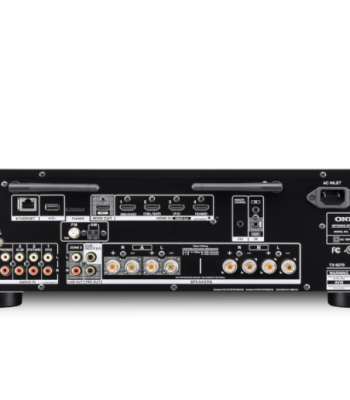

CONNECTIVITY

Audio Input/Output 4/1
Phono Input _
Digital Audio IN (Opt/Coax) 2/1
Auto Power On When Signal is Detected -
Zone 2 Line Out _
Zone 2 Digital to Analog Audio Conversion -
Speaker A/+B _
Subwoofer Pre-out _
Headphone Jack _

NETWORK / USB

Internet Radio Capable _ (TuneIn Radio, Tidal, Pandora, Spotify, and Deezer)
Spotify Connect Support _
Streaming Audio From PC / Network _
Hi-Res Streaming Audio Formats _ (Apple Lossless, DSD 2.8/5.6 MHz, AAC, MP3, FLAC 192/24, LPCM, AIFF, WAV, WMA Lossless)
Supports Onkyo Controller App _
Wireless Network _ (Wi-Fi Certified)
USB Input _ (Front)
Chromecast built-in and Works with Google Assistant _ (Via Firmware Update)
DTS Play-Fi _ (Via Firmware Update)
AirPlay _
Firmware Updates via Network/USB _/_

MISCELLANEOUS

Quick Access BGM Presets _ (x4)
Number of AM/FM Presets 40
Preset Station Naming _
Direct Access Tuning _
Automatic/Manual Tuning _
Sleep Timer _
IR Input _
IR Output _
RI-Compatible Remote Control _
Warranty 2 YEARS

Specs

AMPLIFIER SECTION

Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) 100, 0.08% THD
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC) 170, 0.10% THD
Dynamic Power 240 W (3 Ohms, Front) 210 W (4 Ohms, Front) 120 W (8 Ohms, Front)
THD + Noise 0.08 % (20hz-20kHz, Half power)
Frequency Response 10 Hz-100 kHz (+ 1 dB, -3 dB) (Direct Mode)
S/N Ratio 106 dB (IHF-A, Line In, Speaker Out) 80 dB ( IHF-A, Phono In, Speaker Out)
Phono Overload (1 kHz) 70 mV (MM, 1 kHz, 0.5%)

TUNER SECTION

FM 87.5 MHz_107.9 MHz
AM 530 kHz_1,710 kHz
FM/AM Preset Memory 40 Stations (Plus 4 Faceplate BGM Presets)

GENERAL

Power Supply AC 120 V_, 60 Hz
Power Consumption 4.2 A
Standby Power Consumption 0.1 W
No-Sound Power Consumption 35 W
Network Standby Power Consumption 2.6 W
Dimensions (W x H x D) 17 1/8" x 5 7/8" x 12 15/16" (435 x 149 x 328 mm)
Weight 18.1 lbs. (8.2 kg)
TX-8270B
