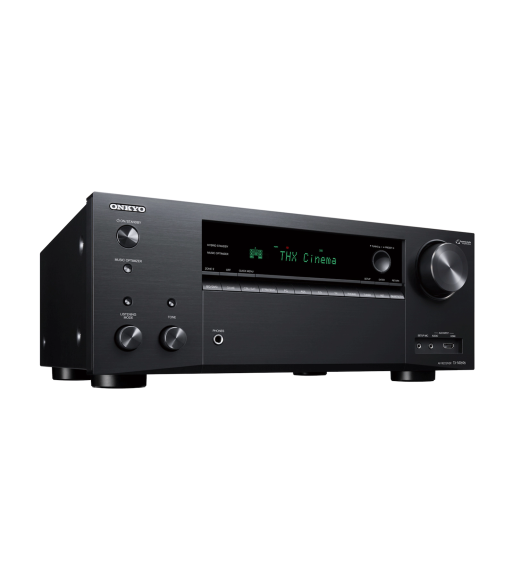

OnkyoTX-NR696 7.2-Channel Network AV Receiver

7.799,00 kr.
Inkl. moms

A harmonious mix of tech and tradition, the TX-NR696 adapts to entertainment life and finds the emotion in every sound source, from 3D film scores to vinyl records.

Antal
På fjernlager

Ref: TX-NR696

Features

AMPLIFIER

# Channels 7.2
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) 100 Watts, 0.08% THD
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven) 210 Watts, 10% THD
Dynamic Audio Amplification _ (for Clear and Realistic Sound)
H.C.P.S. (High Current Power Supply) _
Non-Phase Shift Amplifier _
THX Certified _
Continuous 6 Ohms Rated _
Certified 4 Ohms Performance _
Discrete Output Stage Circuitry _
Amplifier Design Linear Class A/B
Bi-amp CapabIndependent Block Construction (Amp/Preprocessor)ility For Front -
Bi-amp Capability For Front _

NETWORK

SMART AV Receiver Wireless multi-room audio platforms, streaming service integration, and remote app control
Works with Sonos certified for the Sonos Home Sound System _
Chromecast built-in and voice control with the Google Assistant _
AirPlay 2 multi-room audio and voice control with Siri _
DTS Play-Fi® Multi-room audio via Onkyo Music Control App
FlareConnect_ Multi-zone audio with compatible components
Quad-core SoC processing evolves network functions and supports high-speed 802.11ac (2x2 MIMO) Wi-Fi specification _
Hi-Res Audio playback via network DSD 11.2 MHz/5.6 MHz/ 2.8 MHz; FLAC, WAV [RIFF], AIFF, and ALAC to 192 kHz/24-bit

PROCESSING

Dolby Atmos _ (5.2.2)
Dolby Atmos Height Virtualizer _ (Enabled with a future firmware update)
32-Bit Digital Signal Processing Engine _
Dolby Decoder Dolby Atmos, Dolby True HD
DTS:X _ (5.2.2)
DTS Virtual:X _ (Enabled with a future firmware update)
DTS Decoder DTS: X, DTS: Neural: X, DTS-HD Master Audio
ONKYO GAME Surround Modes _ (Rock, Sports, Action, RPG)
VLSC for Noiseless Audio Processing _ (Front L/R Channels)
THX Processing Mode _
CinemaFILTER -
AccuEQ Room Calibration _(w/ AccuReflex)
Phase-Matching Bass Boost -
Direct/Pure Mode _/-
Pure Direct Analog Path Mode -
Advanced Music Optimizer _
192K/24 Bit DACs -

CONNECTIVITY

Analog Audio IN 4
Phono Input _
Digital Audio IN (OPT/COAX) 1 / 1
Composite Video I/O -
Component Video I/O -
Front Panel HDMI _
Front-Panel A/V 1 (Analog)
USB Input _ (Rear)
HDMI I/O 7(1 front)/ 2 (Main, Sub/Zone 2)
HDMI 4K/60 Hz- Capable HDMI Terminals _
HDCP 2.3 Copy-Protection Compatibility _
HDMI Support for High Dynamic Range _(HDR10 and Dolby Vision)
HDMI Support for Deep Color, x.v.Color, LipSync _
HDMI Support for 3D, Audio Return Channel and CEC _
HDMI Support for DVD-Audio, SACD, Multichannel PCM _
Analog To HDMI Upconversion -
BT.2020 Support _
1080p to 4K Upscaling _
4K Passthrough _
Analog Pre-Outs Subwoofer (x2)
Speaker A/+B -
Powered Zone 2 _
Powered Zone 3 -
Zone 2/ Zone B Line Out _
Zone 2 Video Out -
Zone 2 Digital to Analog Audio Conversion _ (Net/SPDIF/Bluetooth, HDMI Inputs 1-3)
Zone 3 Line Out -
Whole House Mode -
FlareConnect Multi-room Audio _
Airplay & Airplay 2 _
Chromecast built-in _
Works with Google Assistant _
Supports Onkyo Remote App _
Internet Radio Capable _
Spotify Connect Support _
Tidal _
Amazon Music _
Streaming Audio From PC / Network _
Hi-Res Streaming Audio Formats _ (DSD 11.2 MHz/5.6 MHz/2.8 MHz*, 192 kHz/24-bit FLAC, WAV, AIFF, and ALAC) *Converted to PCM
Streaming Audio From USB memory _
Wireless Network 5GHz(11ac/a/n), 2.4GHz(11b/g/n)
Bluetooth _ (Version 4.2, Profile: A2DP 1.2, AVRCP 1.3)

INTEGRATION ACCESS

RS-232 -
IR Input -
IR Output -
Ethernet _
ONKYO-RI System Control -
RIHD (Remote Interactive Over HDMI) -
12V Trigger -
TX-NR696
