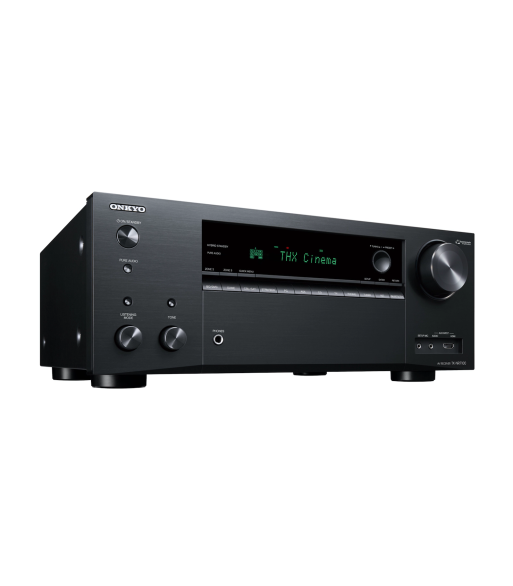

Onkyo TX-NR7100 9.2-Channel THX Certified AV Receiver

10.999,00 kr.
Inkl. moms

With 9 channels and built-in, ready-to-use Dirac Live® Room Correction, the Onkyo TX-NR7100 9.2 Channel THX® Certified AV Receiver brings new meaning to the phrase, _home movie night_

Antal
På fjernlager

Ref: TX-NR7100

Features

PRODUCT HIGHLIGHTS

220 W/Ch THX® Certified Select Dynamic Audio Amplification system _
IMAX® Enhanced certified for immersive signature sound by DTS:X® _
5.2.4-ch/7.2.2-ch Dolby Atmos® and DTS:X playback _
Supports Dirac Live® Room Correction 20Hz to 20kHz
AccuReflex phase-matching solution for Atmos-enabled speakers _
SMART AV Receiver_ Works with Sonos, Chromecast built-in_, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services
Works with Hey Google or Alexa Sold separately
Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard _
HDMI® inputs Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0).
HDMI 2.1 HDMI 2.1 features that are supported on HDMI inputs 1_6, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).
HDMI Sub/Zone 2 Out for media transmission to a second display _
Send or receive audio via Bluetooth® wireless technology RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX_/ aptX HD
Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines _
5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback _
Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks _

Specs

AMPLIFIER

Power output (All channels) 220 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz_20 kHz, 0.08% THD, 2-ch driven, FTC)
Dynamic power 250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz_20 kHz, half power)
Input sensitivity and impedance 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)
Frequency response 10 Hz_100 kHz/+1 dB, -3 dB (Direct/Pure Audio)
Tone control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)
Speaker impedance 4_16 ohms

TUNER

FM 87.5 MHz_107.9 MHz
AM 530 kHz_1,710 kHz
FM/AM preset memory 40 stations

GENERAL

Power supply AC 120 V~, 60 Hz
Power consumption (operating) 750 W
Power consumption (idle) 75 W
Power consumption (standby) 0.1 W
Dimensions (W x H x D) 17 1/8_ x 6 13/16_ x 14 15/16_ (435 x 173.5 x 379.5 mm)
Weight 22.9 lbs. (10.4 kg)
TX-NR7100
