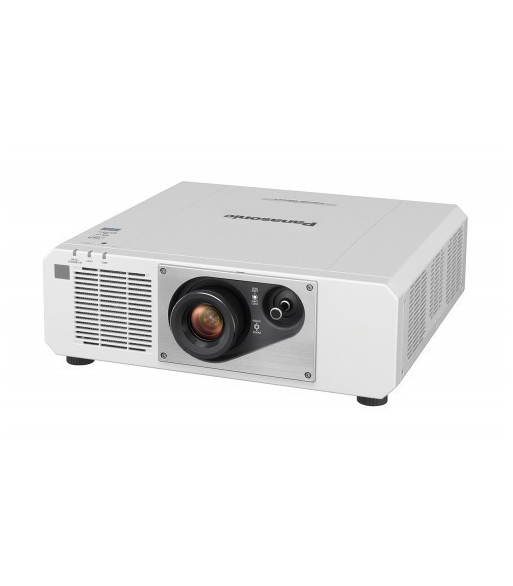

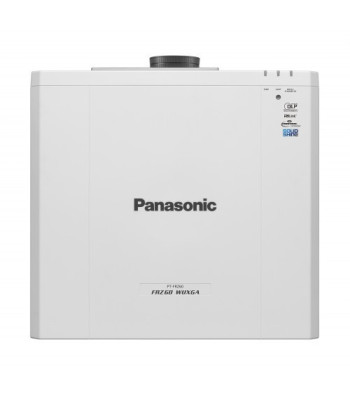

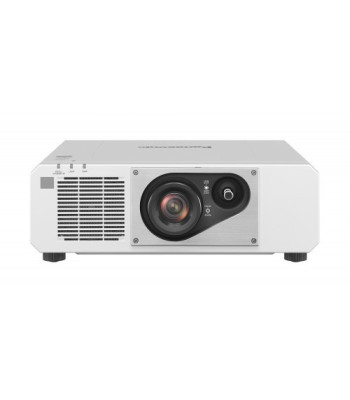

Panasonic PT-FRZ60WEJ

36.625,00 kr.

Inkl. moms

1 DLP LASER projektor
6.000 lumen
WUXGA opløsning 1920x1200
2 x HDMI indgang
1 x Digital Link indgang
2 x VGA indgange
1 x video indgang
styring via RS232 og LAN
Lens shift
4K input via HDMI og Digital Link

Antal

På fjernlager

Ref: PT-FRZ60WEJ

Beskrivelse
Produktoplysninger

Projector type	1-Chip DLP_ projector
DLP_ Chip \| Panel Size	17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
DLP_ Chip \| Display Method	DLP_ chip x 1, DLP_ projection system
DLP_ chip \| Number of Pixels	2,304,000 (1920 x 1200 pixels)
Light Source	Laser diodes
Light output	6,000 lm1/6,200 lm (Center)2
Time until light output declines to 50 %*3	20,000 hours (NORMAL)
Resolution	1920 x 1200 pixels
Contrast Ratio*1	20,000:1 (Full On/Full Off, Dynamic Contrast Mode: ON)
Screen size [diagonal]	1.02_7.62 m (40_300 in), 16:10 aspect ratio
Center-to-corner zone ratio*1	90 %
Lens	2.0x manual zoom (throw ratio: 1.46_2.94:1), manual focus, F 2.0_3.4, f 21.5_43.0 mm
Lens shift \| Vertical(From the origin point of the lens mounter)	+64 %, -44 % (manual)
Lens shift \| Horizontal(From the origin point of the lens mounter)	+34 %, -27 % (manual)
Keystone Correction Range	Vertical: ±40 °, Horizontal: ±20 °. When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously,correction cannot be made exceeding a total of ±60 °.
Installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals \| HDMI In	HDMI 19-pin x 2 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*4 ), CEC supported
Terminals \| Computer 1 In	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC)
Terminals \| Computer 2 In/1 Out	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC)
Terminals \| Video In	Pin jack x 1 (composite video)
Terminals \| Audio In 1	Pin jack x 2 (L, R)
Terminals \| Audio In 2/3	M3 x 1/M3 x 1
Terminals \| Audio Out	M3 x 1 (Variable)
Terminals \| Serial In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals \| DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT_ compliant), PJLink_ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible,4K/60p signal input*4
Terminals \| LAN	RJ-45 x 1 for network connection, PJLink_ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals \| USB	USB connector (Type A) x 1 (Output 5 V/2 A)
Power Supply	AC 100_240 V, 50/60 Hz
Power Consumption	TBD
Cabinet Materials	Molded plastic
Operation noise*1	30 dB (Quiet Mode) (TBD), 35 dB (Normal Mode) (TBD)
Dimensions (W x H x D)	498 x 1685 x 492 mm (19 5/8_ x 6 5/8_5 x 19 3/8_ )
Weight*6	Approx. 16.6 kg (36.6 lbs) (TBD)
Operating Environment	Operating temperature: 0_40 °C (32_104 °F),operating humidity: 10_80 % (no condensation) (TBD)
Applicable Software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software
Note	1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. 2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode. 3 Aroundthis time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [ON], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light outputdeclines to 50 % varies depending on environment. 4 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®. 5 With legs at shortest position. 6 Average value. May differ depending on the actual unit.
