| Power Supply |
AC100 - 240V 5.3 - 2.1A 50Hz/60Hz |
|---|
| Power Consumption |
461W |
|---|
| Power Consumption | Standby Mode (Eco) |
0.5W, 0.3W (Taiwan) |
|---|
| Power Consumption | Standby Mode (Normal) |
12W |
|---|
| Power Consumption | Standby Mode (Normal and Audio Monitor Out) |
30W |
|---|
| BTU Value |
Max 1,573BTU |
|---|
| LCD Panel | Panel Size |
16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
|---|
| LCD Panel | Display Method |
Transparent LCD panel (x 3, R/G/B) |
|---|
| LCD Panel | Drive Method |
Active matrix |
|---|
| LCD Panel | Pixels |
1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels |
|---|
| Lens |
Powered zoom (throw ratio 1.22-2.26:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm |
|---|
| Lamp |
320 W UHM lamp Lamp replacement cycle 4,000 hours (lamp power: Normal), 5,000 hours (lamp power: Eco) This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours. |
|---|
| Screen Size |
1.02- 10.16 m (40-400 inches) (16:10 aspect ratio) |
|---|
| Brightness |
5,800 lumens (Lamp power: Normal, Dynamic mode, Iris off, Daylight View:off, Auto Power Save:off) |
|---|
| Center-to-Corner Uniformity |
90% |
|---|
| Contrast |
10,000:1 (Lamp power: Normal, Dynamic mode, Iris on, Daylight View:off, Auto Power Save:off) |
|---|
| Resolution |
1,280 x 800 pixels (WXGA) |
|---|
| Scanning Frequency | HDMI/DIGITAL LINK |
fH: 15- 90kHz, fV: 24 - 100Hz, dot clock: 25 - 162 MHz |
|---|
| Scanning Frequency | RGB |
fH: 15- 90kHz, fV: 24 - 100Hz, dot clock: 162 MHz or lower |
|---|
| Scanning Frequency | YPBPR (YCBCR) |
525i (480i): fH15.73 kHz; fV59.94 Hz, 625i (576i): fH15.63 kHz; fV50 Hz, 525p (480p): fH31.47 kHz; fV60 Hz, 625p (576p): fH31.25 kHz; fV50 Hz, 750 (720)/60p: fH45.00 kHz; fV60 Hz, 750 (720)/50p: fH37.50 kHz; fV50 Hz, 1125 (1080)/60i: fH33.75 kHz; fV60 Hz, 1125 (1080)/50i: fH28.13 kHz; fV50 Hz, 1125 (1080)/25p: fH28.13 kHz; fV25 Hz, 1125 (1080)/24p: fH27.00 kHz; fV24 Hz, 1125 (1080)/24sF: fH27.00 kHz; fV48 Hz, 1125 (1080)/30p: fH33.75 kHz; fV30 Hz, 1125 (1080)/60p: fH67.50 kHz; fV60 Hz, 1125 (1080)/50p: fH56.25 kHz; fV50 Hz |
|---|
| Scanning Frequency | Video/S-Video |
fH: 15.75 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|---|
| Keystone Correction Range |
Vertical ±35°, horizontal ±35° |
|---|
| Optical Axis Shift |
Vertical: ±60% (powered) Horizontal: ±30% (powered ) |
|---|
| Installation |
Ceiling/ oor, front/rear |
|---|
| Speaker |
4.0 cm (1-9/16 in) (monaural) x 1 |
|---|

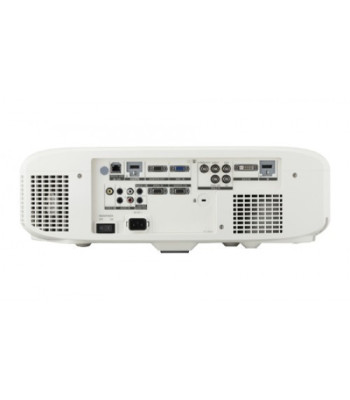

| Terminals | HDMI In 1/HDMI In 2 | HDMI 19-Pin x2 |
Deep Color, compatible with HDCP, Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
|---|
| Terminals | DIGITAL LINK In |
RJ-45 x 1 (HDBaseT_ compatible), Deep Color, compatible with HDCP, Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
|---|
| Terminals | RGB 1 In |
BNC x 5 |
|---|
| Terminals | RGB 1 In | R, G, B |
0.7 Vp-p, 75 ohms, (G: 1.0 Vp-p, 75 ohms for sync on G) H D/VD, SYNC: TTL, high impedance, positive/negative automatic |
|---|
| Terminals | RGB 1 In | Y, PB, PR (Y, CB, CR) |
Y: 1.0 Vp-p (including sync signal), PBPR(CBCR): 0.7 Vp-p, 75 ohms |
|---|
| Terminals | RGB 1 In | Y/C |
Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p, 75 ohms |
|---|
| Terminals | RGB 2 In |
D-sub HD 15-pin (female) x 1 |
|---|
| Terminals | RGB 2 In | R, G, B |
0.7 Vp-p, 75 ohms, (G: 1.0 Vp-p, 75 ohms for sync on G) H D/VD, SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals. |
|---|
| Terminals | RGB 2 In | Y, PB, PR (Y, CB, CR) |
Y: 1.0 Vp-p (including sync signal), PBPR(CBCR): 0.7 Vp-p, 75 ohms |
|---|
| Terminals | Video In |
Pin jack x 1, 1.0 Vp-p, 75 ohms |
|---|
| Terminals | Monitor Out |
D-sub HD 15-pin (female) x 1 |
|---|
| Terminals | Monitor Out | R, G, B |
0.7 Vp-p, 75 ohms, (G: 1.0 Vp-p, 75 ohms for sync on G) H D/VD, SYNC: TTL, high impedance, positive/negative automatic |
|---|
| Terminals | Monitor Out | Y, PB, PR |
Y: 1.0 Vp-p (including sync signal), PBPR: 0.7 Vp-p, 75 ohms |
|---|
| Terminals | Audio In 1/Audio In 2 |
M3 x 2, 0.5 Vrms, input impedance: 22 kilohms or more |
|---|
| Terminals | Audio In 3 |
Pin jack(L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more |
|---|
| Terminals | Variable Audio Out |
M3 x 1 (monitor out, stereo) 0-2.0 Vrms, variable, output impedance: 2.2 kilohms or less |
|---|
| Terminals | Serial In |
D-sub 9 p x 1, for external control (RS-232C compliant) |
|---|
| Terminals | Remoter 1 In |
D-sub 9-pin (female) x1, for external control (parallel) |
|---|
| Terminals | Remoter 2 In |
M3 jack x 1 for wired remote control |
|---|
| Terminals | LAN |
RJ-45 x 1 for network connection 10Base-T/100Base-TX, compatible with Art-Net, PJLink_(Class 1) |
|---|
| Terminals | Wireless |
USB Type A x 1, for wireless projection with optional dongle (ET-WML100) |
|---|
| Terminals | DC Out |
USB Type A x 1, for power supply (DC5 V, max 900 mA) |
|---|
| Power Cord Length |
3.0 m (9 ft10 in) |
|---|
| Cabinet Materials |
Molded plastic |
|---|
| Dimensions (W x H x D) |
498 x 145 x 398.3mm (19-19/32 x 5-11/16*3 x 15-11/16 in ) with supplied lens |
|---|
| Weight |
Approx. 8.4kg (18.5lbs) |
|---|
| Operating Noise |
29 dB (Silent), 35 dB (Normal/Eco) |
|---|
| Operating Environment | Operating Temperature |
0-45 °C (32-113 °F) |
|---|
| Operating Environment | Operating Humidity |
20%-80% (no condensation) |
|---|
| Technology |
LCD |
|---|
