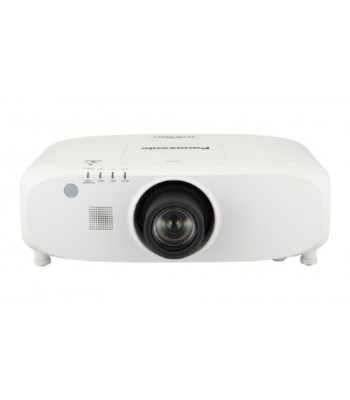

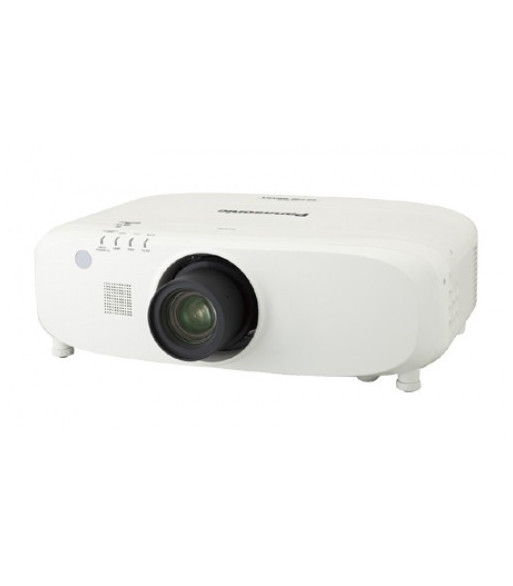

Panasonic PT-EX620EJ

25.400,00 kr.

Inkl. moms

Opløsning 1.024x768 (XGA)
panel 3x0,8" TFTp-si
6200 lumen
Kontrast 10000:1
Lampe 320W UHM
Vægt 8,4 kg
Vertikal og horisontal lens shift
Keystone+/- 35° +/-45
5 optional lenses
29dB (eco-mode)

Antal

På fjernlager

Ref: PT-EX620EJ

Beskrivelse
Produktoplysninger

Power Supply	AC100 - 240V 5.3 - 2.1A 50Hz/60Hz
Power Consumption	461W
Power Consumption \| Standby Mode (Eco)	0.5W, 0.3W (Taiwan)
Power Consumption \| Standby Mode (Normal)	12W
Power Consumption \| Standby Mode (Normal and Audio Monitor Out)	30W
BTU Value	Max 1,573 BTU
LCD Panel \| Panel Size	16.0 mm (0.63 in) diagonal (4:3 aspect ratio)
LCD Panel \| Display Method	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Drive Method	Active matrix
LCD Panel \| Pixels	786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Lens	Powered zoom (throw ratio 1.32-2.44:1), powered focus, F 1.6-2.2, f 17.1-31.7 mm
Lamp	320 W UHM lamp Lamp replacement cycle 4,000 hours (lamp power: Normal), 5,000 hours (lamp power: Eco) This is the maximum value when the lamp is turned on for 2 hours and off for 0.25 hours.
Screen Size	1.02- 10.16 m (40-400 inches) (4:3 aspect ratio)
Brightness	6,200 lumens (Lamp power: Normal, Dynamic mode, Iris off, Daylight View:off, Auto Power Save:off)
Center-to-Corner Uniformity	90%
Contrast	10,000:1 (Lamp power: Normal, Dynamic mode, Iris on, Daylight View:off, Auto Power Save:off)
Resolution	1,024 x 768 pixels
Scanning Frequency \| HDMI/DIGITAL LINK	fH: 15- 90kHz, fV: 24 - 100Hz, dot clock: 25 - 162 MHz
Scanning Frequency \| RGB	fH: 15- 90kHz, fV: 24 - 100Hz, dot clock: 162 MHz or lower
Scanning Frequency \| YPBPR (YCBCR)	525i (480i): fH15.73 kHz; fV59.94 Hz, 625i (576i): fH15.63 kHz; fV50 Hz, 525p (480p): fH31.47 kHz; fV60 Hz, 625p (576p): fH31.25 kHz; fV50 Hz, 750 (720)/60p: fH45.00 kHz; fV60 Hz, 750 (720)/50p: fH37.50 kHz; fV50 Hz, 1125 (1080)/60i: fH33.75 kHz; fV60 Hz, 1125 (1080)/50i: fH28.13 kHz; fV50 Hz, 1125 (1080)/25p: fH28.13 kHz; fV25 Hz, 1125 (1080)/24p: fH27.00 kHz; fV24 Hz, 1125 (1080)/24sF: fH27.00 kHz; fV48 Hz, 1125 (1080)/30p: fH33.75 kHz; fV30 Hz, 1125 (1080)/60p: fH67.50 kHz; fV60 Hz, 1125 (1080)/50p: fH56.25 kHz; fV50 Hz
Scanning Frequency \| Video/S-Video	fH: 15.75 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60] fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Keystone Correction Range	Vertical ±25°, horizontal ±30°
Optical Axis Shift	Vertical: ±50% (powered) Horizontal: ±30% (powered )
Installation	Ceiling/_loor, front/rear
Speaker	4.0 cm (19/16 in) (monaural) x 1

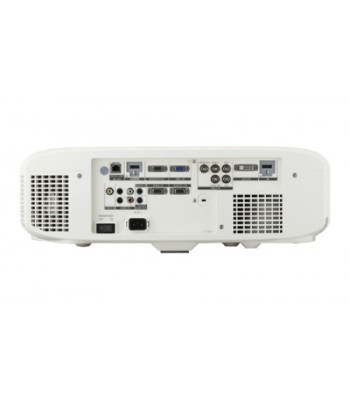

Terminals \| HDMI In 1/HDMI In 2 \| HDMI 19-Pin x2	eep Color, compatible with HDCP, Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Terminals \| DIGITAL LINK In	RJ45 x 1 (HDBaseT_ compatible), Deep Color, compatible with HDCP, Audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Terminals \| RGB 1 In	BNC x 5
Terminals \| RGB 1 In \| R, G, B	0.7 Vp-p, 75 ohms, (G: 1.0 Vp-p, 75 ohms for sync on G) HD/VD, SYNC: TTL, high impedance, positive/negative automatic
Terminals \| RGB 1 In \| Y, PB, PR (Y, CB, CR)	Y : 1.0 Vp-p (including sync signal), P BPR(CBCR): 0.7 Vp-p,75 ohms
Terminals \| RGB 1 In \| Y/C	Y: 1.0 Vp-p (including sync signal), C: 0.286 Vp-p,75 ohms
Terminals \| RGB 2 In	Dsub HD 15pin (female) x 1
Terminals \| RGB 2 In \| R, G, B	0.7 Vp-p,75 ohms, (G: 1.0 Vp-p,75 ohms for sync on G) HD/VD, SYNC: TTL, high impedance, positive/negative automatic NOTE: SYNC/HD and VD terminals do not accept tri-level sync sign als.
Terminals \| RGB 2 In \| Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PBPR(CBCR): 0.7 Vp-p,75 ohms
Terminals \| Video In	Pin jack x 1, 1.0 Vp-p,75 ohms
Terminals \| Monitor Out	D-sub HD 15pin(female) x 1
Terminals \| Monitor Out \| R, G, B	0.7 Vp-p,75 ohms, (G: 1.0 Vp-p,75 ohms for sync on G) HD/VD, SYNC: TTL, high impedance, positive/negative automatic
Terminals \| Monitor Out \| Y, PB, PR	Y: 1.0 Vp-p (including sync signal), PBPR: 0.7 Vp-p,75 ohms
Terminals \| Audio In 1/Audio In 2	M3 x 2, 0.5 Vrms, input impedance: 22 kilohms or more
Terminals \| Audio In 3	Pin jack(L, R) x 1, 0.5 Vrms, input impedance: 22 kilohms or more
Terminals \| Variable Audio Out	M3 x 1 (monitor out, stereo) 0-2.0 Vrms, variable, output impedance: 2.2 kilohms or less
Terminals \| Serial In	D-sub 9 p x 1, for external control (RS232C compliant)
Terminals \| Remoter 1 In	D-sub 9-pin (female) x1, for external control (parallel)
Terminals \| Remoter 2 In	M3 jack x 1 for wired remote control
Terminals \| LAN	RJ45 x 1 for network connection 10BaseT/100Base-TX, compatible with Art-Net,PJLink_(Class 1)
Terminals \| Wireless	USB Type A x 1, for wireless projection with optional dongle (ET-WML100)
Terminals \| DC Out	USB Type A x 1, for power supply (DC5 V, max 900 mA)
Power Cord Length	3.0 m (9 ft10 in)
Cabinet Materials	Molded plastic
Dimensions (W x H x D)	498 x 145 x 398.3mm (19-19/32 x 5-11/16 x 15-11/16 in ) with supplied lens
Weight	Approx. 8.4kg (18.5lbs)
Operating Noise	29 dB (Silent), 35 dB (Normal/Eco)
Operating Environment \| Operating Temperature	0-45 °C (32-113 °F)
Operating Environment \| Operating Humidity	20%-80% (no condensation)
Technology	LCD
