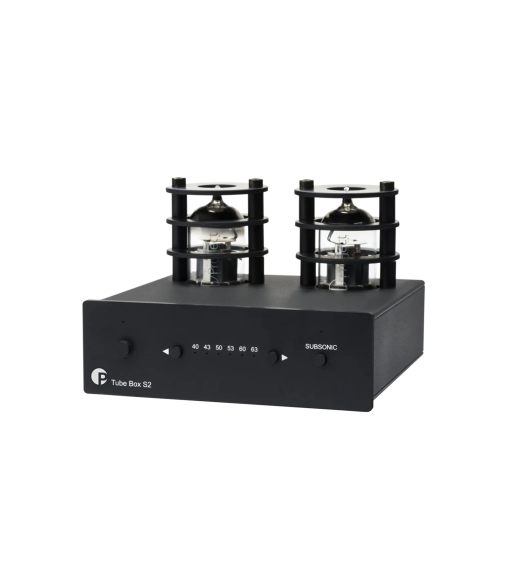

. Pro-Ject TUBE BOX S2 BLACK .
Pro-Ject TUBE BOX S2 SILVER
search
  • Pro-Ject TUBE BOX S2 SILVER

Pro-Ject TUBE BOX S2 BLACK

3.195,00 kr.
Inkl. moms

Features

  • Suitable for MM and MC cartridges
  • Precise RIAA equalisation in two parts, passive/active
  • Fully discreet circuit design without OpAmps
  • 2x ECC83 tubes (replaceable)
  • Front-sided Subsonic filter button
  • Front-sided Gain control
  • Ultra low noise circuitry with FET input stage
  • Dual mono circuitry for optimized channel separation
  • Polystyrene capacitors used where possible
  • Gold-plated RCA in- and outputs
  • External power adaptor and multiple internal power supplies
  • Well-filtrated high-voltage anode power supply
  • Sandwich alu/metal casing protects from vibrations and electromagnetic interference
  • Available in silver or black
Antal
På fjernlager

Ref: TUBE BOX S2 BLACK

Technical Specifications

Tubes 2 x ECC83 (12AX 7A)
Input impedance 10 ohms, 100 ohms, 1 kohm, 2 kohms
Input capacitance/impedance 47pF, 147pF, 267pF, 367 pF, 487 pF and 587 pF* / 47 kohms, Together with other input impedance settings without any influence!
Input gain 40 dB, 43 dB / 50 dB, 60 dB und 63 dB
Noise floor 80 dB (A weighted) at 40 dB input gain, 75dB (A weighted) at 50 dB and 63 dB input gain
THD <0.02% at 40 dB input gain <0.05% at 50 dB and 63 dB input gain
RIAA-equalisation curve accuracy +/- 0.4 dB/20 Hz - 20 kHz
Subsonic filter at 20 Hz with 18 dB/octave
Input 1 pair RCA/phono sockets
Line-level output 1 pair RCA/phono sockets
Outboard power supply 18 V / 1.000 mA DC, suitable for your country's mains supply
Power consumption 470 mA DC, <1W in standby
Dimensions W x H x D with sockets 103 x 73 x 131 mm
Weight 410 g without power supply
Pro-Ject
TUBE BOX S2 BLACK

Specifikke referencer
