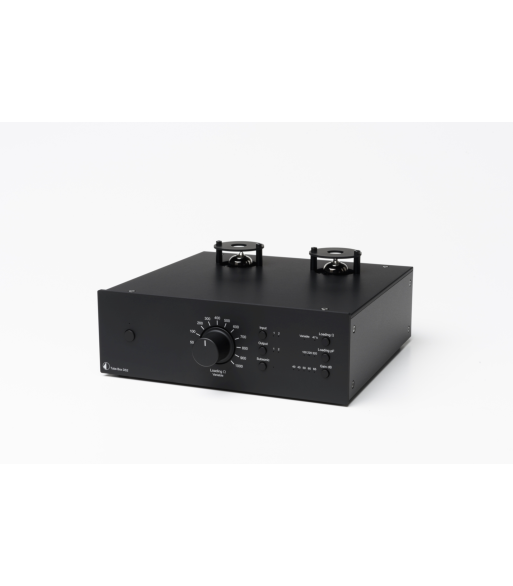

Pro-Ject TUBE BOX DS2 BLACK
search
  • Pro-Ject TUBE BOX DS2 BLACK

Pro-Ject TUBE BOX DS2 BLACK

6.495,00 kr.
Inkl. moms

Features

  • Suitable for MM and MC cartridges
  • Precise RIAA equalisation
  • Ultra low noise circuitry
  • Selection between 2 phono inputs & 2 line outputs
  • Dual mono circuitry for optimized channel separation
  • Selectable input impedance (for MC: fix or variable)
  • Selectable input capacitance (for MM)
  • Selectable subsonic filter
  • Gold-plated RCA in & outputs
  • Sandwich alu/metal casing protects from vibrations and electromagnetic interference
  • Magnetic side panels in eucalyptus, rosenut and walnut available separately
Antal
På fjernlager

Ref: TUBE BOX DS2 BLACK

Technical Specifications

Tubes 2 x ECC83 (12AX7)
Input impedance Variable 10-1000 Ohm, fix 47 kOhm
Capacitance 100 / 220 / 320 pF
Gain MM / MC 40 / 45 / 50 / 60 / 65 dB
Output voltage typically 500 mV/1kHz at 5mV/1kHz (at 40dB)
SNR 88 dBA
THD < 0.04%
RIAA curve accuracy +/- 0.2dB/20Hz - 20kHz
Subsonic filter 20Hz @ 12dB/octave
Inputs 2 x Phono (RCA)
Outputs 2 x Line (RCA)
Power supply 18V/1000mA DC
Power consumption max 490mA DC / < 0.5 Watt Standby
Dimensions B x H x T 206 x 91 x 227 mm (Alu)
240 x 93 x 227 mm (Wood)
Weight (without power supply) 1500 g (Alu)
1960 g (Wood)
