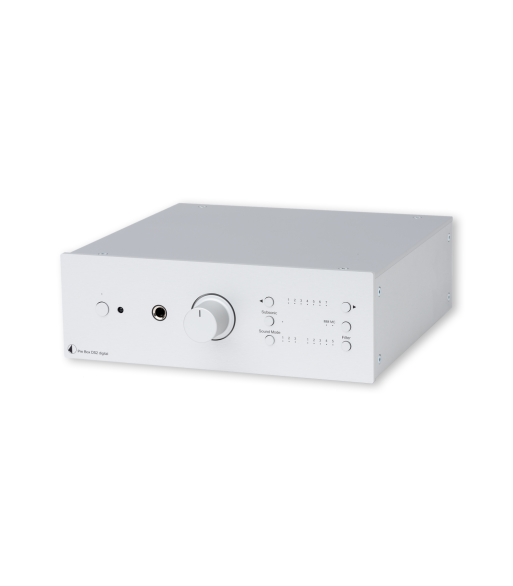

. Pro-Ject PRE BOX DS2 DIGITAL SILVER .
Pro-Ject PRE BOX DS2 DIGITAL BLACK
search
  • Pro-Ject PRE BOX DS2 DIGITAL BLACK

Pro-Ject PRE BOX DS2 DIGITAL SILVER

6.495,00 kr.
Inkl. moms

Features

  • Phono stage (MM/MC), Line In on board
  • 5 digital Inputs: 1x USB, 2x optical, 1x coax, 1x BT (aptX)
  • Top grade AK4490 D/A chip (32-bit PCM 768kHz / DSD256)
  • Up to 32bit/768kHz asynchronous USB (XMOS technology)
  • DSD64, DSD128 & DSD256 (DSD over PCM)
  • Up to 24bit/192kHz for optical & coax inputs
  • 5 selectable digital filter characteristics
  • 3 selectable sound modes
  • Headphone output on the front (6.3mm)
  • High-end ultra low phase oscillator with superior noise rejection
  • RCA line level solid-state analogue output stage
  • Ultra linear & ultra low noise circuitry
  • Magnetic side panels in eucalyptus, rosenut and walnut available separately
Antal
På fjernlager

Ref: PRE BOX DS2 DIGITAL SILVER

Technical Specifications

2 analogue inputs 1x Line In (RCA), 1x Phono Line In (RCA)
5 digital inputs 1x coax (S/PDIF), 2x optical (TOSlink®), USB B, BT (aptX)
D/A-converter AK4490 32-bit PCM 768kHz / DSD256
Sampling rate converter AK4137EQ upsampling to 768kHz
Sampling rates 32/44,1/48/88,2/96/176,2/192/352,8/384/768 kHz
DSD support DSD64, DSD128 and DSD256
Filter settings 5 different selectable on front
Frequency response 20Hz - 20kHz (+0/-1dB)
Analogue outputs 1 x 6.3mm Headphone Out (front)
1 x Sub Out
1 x Fix Out (RCA)
1 x Variable Out (RCA)
Output voltage 2.2 Veff (switchable +6dB gain gives 4.4 Veff )
THD 0.00085%
Crosstalk -117dB (10kHz@0dB)
Signal to noise ratio 113dB (20 - 20.000 kHz)
Power consumption <1 Watt standby, 600mA max
Outboard Power supply 18V/1000mA DC (included)
Dimensions W x H x D 206 x 71 x 220 mm (Alu)
240 x 72 x 220 mm (Wood)
Weight 1570 g (Alu) without power supply
2000 g (Wood) without powersupply
