Rio1608-D2 I/O Rack

61.283,75 kr.
Inkl. moms

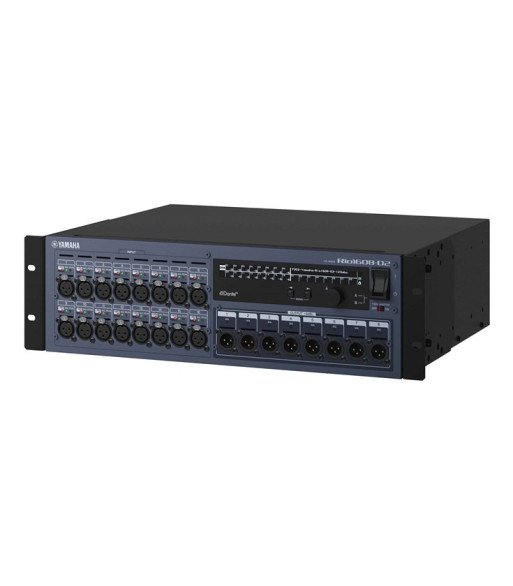

This high-performance I/O rack features 16 analog inputs and 8 analog outputs, and is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. The Rio1608-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

  • 16 analog inputs and 8 outputs.
  • Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
  • Comprehensive display and local control of gain and other parameters.

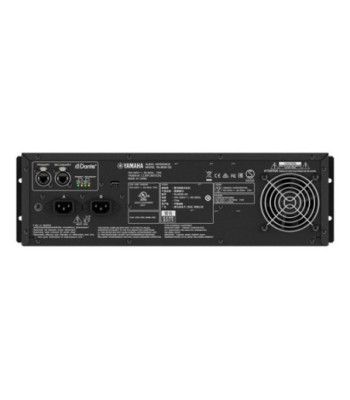

  • Dual power supply units are built in for high reliability.
  • Power consumption: 72W
  • Dimensions (WxHxD): 480 x 132 x 368mm (18.9" x 5.2" x 14.5")
  • Net Weight: 9.6 kg (21.2 lbs)
Antal
På fjernlager

Ref: Rio1608-D2

Rio3224-D2Rio1608-D2
General specifications
Sampling frequency rateExternal 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, _0.1%, _4.0% (±200 ppm) 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, _0.1%, _4.0% (±200 ppm)
Signal delay Less than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz, Dante Receive Latency set to 0.25 msec Less than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz, Dante Receive Latency set to 0.25 msec
Total harmonic distortion Less than 0.05% 20 Hz-20 kHz@+4 dBu into 600_, Fs= 48 kHz, Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600_, Fs= 96 kHz, INPUT to OUTPUT, Input Gain= Min. Less than 0.05% 20 Hz-20 kHz@+4 dBu into 600_, Fs= 48 kHz, Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600_, Fs= 96 kHz, INPUT to OUTPUT, Input Gain= Min.
Frequency response +0.5, _1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz / +0.5, _1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz +0.5, _1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz / +0.5, _1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz
Dynamic range 112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min. 112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min.
Hum & noise levelEquivalent input noise _128 dBu typ., Input Gain= Max. _128 dBu typ., Input Gain= Max.
Residual output noise _88 dBu, ST master off _88 dBu, ST master off
Crosstalk -100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB, @1 kHz *Measured with a 30dB/octave filter @22kHz -100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB, @1 kHz *Measured with a 30dB/octave filter @22kHz
Power requirements 100-240V, 50/60Hz 100-240V, 50/60Hz
Power consumption 120W 72W
DimensionsW 480 mm (18.9") 480 mm (18.9")
H 220 mm (8.7") 132 mm (5.2")
D 368 mm (14.5") 368 mm (14.5")
Net weight 13.5 kg (29.8 lbs) 9.6 kg (21.2 lbs)
Accessories Owner_s Manual, AC power cord (250cm), Dante Virtual Soundcard Token leaflet Owner_s Manual, AC power cord (250cm), Dante Virtual Soundcard Token leaflet
Others NC Value: FAN MODE LOW: NC=20 / HIGH: NC=30 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: _20 - 60°C NC Value: FAN MODE LOW: NC=15 / HIGH: NC=25 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: _20 - 60°C
  • Total Harmonic Distortion is measured with 18 dB/octave filter @80 kHz
    Hum & Noise are measured with A-Weight filter.
    Crosstalk is measured with a 30 dB/octave filter @22 kHz

Analog Input Characteristics

Input TerminalsGAINActual Load ImpedanceFor Use With NominalInput LevelConnector
NominalMax. before clip
INPUT 1-16 +66dB 7.5k_ 50-600_ Mics & 600_ Lines -62dBu (0.616mV) -42dBu (6.16mV) XLR-3-31 type (Balanced)*1
-6dB +10dBu (2.45V) +30dBu (24.5V)
INPUT 17-32*2 +66dB 7.5k_ 50-600_ Mics & 600_ Lines -62dBu (0.616mV) -42dBu (6.16mV) XLR-3-31 type (Balanced)*1
-6dB +10dBu (2.45V) +30dBu (24.5V)

*1. XLR-3-31 type connectors are balanced. (1= GND, 2= HOT, 3= COLD)
*2. Rio3224-D2 only
* In these specifications, 0dBu= 0.775Vrms.
* +48V DC ( phantom power ) is supplied to INPUT XLR type connectors via each individual software controlled switch.

Analog Output Characteristics

Output TerminalsActual Source ImpedanceFor Use With NominalMax.Output Level Select SW*1Output LevelConnector
NominalMax. before clip
OUTPUT 1-8 75_ 600_ Lines +24dB (default) +4dBu (1.23V) +24dBu (12.3V) XLR-3-32 type (Balanced)*2
+18dB -2dBu (616mV) +18dBu (6.16V)
OUTPUT 9-16*3 75_ 600_ Lines +24dB (default) +4dBu (1.23V) +24dBu (12.3V) XLR-3-32 type (Balanced)*2
+18dB -2dBu (616mV) +18dBu (6.16V)

*1. There are switches inside the body to preset the maximum output level.
*2. XLR-3-32 type connectors are balanced. (1= GND, 2= HOT, 3= COLD )
*3. Rio3224-D2 only
* In these specifications, 0dBu= 0.775Vrms.

Digital Input & Output Characteristics

TerminalsFormatData LengthLevelAudioConnector
Primary/Secondary Dante 24-bit or 32-bit 1000Base-T 32ch (Rio3224-D2 to other devices)
24ch (Other devices to Rio3224-D2)
16ch (Rio1608-D2 to other devices)
8ch (Other devices to Rio1608-D2)		 etherCON Cat5e

Digital Output Characteristics

TerminalsFormatData LengthLevelConnector
AES/EBU OUT 1-8*1 AES/EBU AES/EBU Professional use*1 24-bit RS422 XLR-3-32 type (Balanced)*2
Rio1608-D2
