. Alpine Style X903D-V447 Mercedes Vito 2014- .

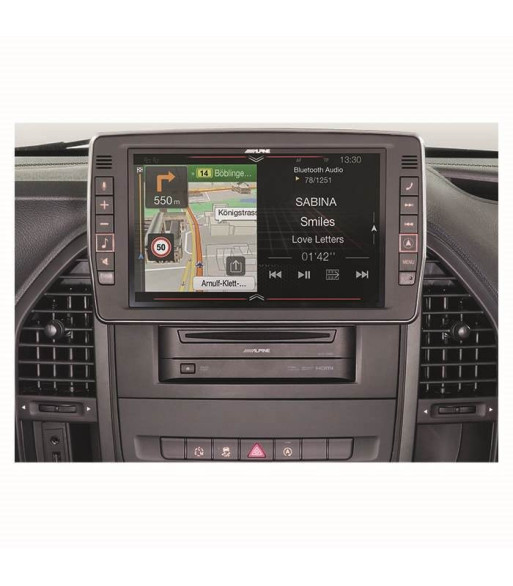

Alpine Style X903D-V447 Mercedes Vito 2014-
search
  • Alpine Style X903D-V447 Mercedes Vito 2014-

Alpine Style X903D-V447 Mercedes Vito 2014-

15.286,00 kr.
Inkl. moms
ægt (Emb.) 5490g
Bredde (Emb.) 500mm
Længde (Emb.) 700mm
Højde (Emb.) 500mm

Compatible Cars

Maker Mercedes
Model Vito (447)
Model year 2014 _
Antal
På fjernlager

Ref: X903D-V447

SPECIFICATIONS

Screen

  • Screen Size: 9 inch Capacitive WVGA
  • LCD Type: Transparent Type TN LCD
  • Operation System: TFT Active Matrix
  • Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
  • Illumination System: White LED Backlighting
  • Effective Number of Picture Elements: 99.99%
  • Colour System: NTSC, PAL

Max Power Output Ratings

  • Max Power Output: 4 x 50 W

FM Tuner

  • Tuning Range: 87.5 - 108.0 MHz
  • Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
  • 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2 dB

MW Tuner

  • Tuning Range: 531 - 1,602 kHz
  • Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

  • Tuning Range: 153 - 281 kHz
  • Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

  • USB Requirements: USB 2.0
  • Max. Power Consumption: 1,500 mA (CDP Support)
  • USB Class: Mass Storage Class, Play From Device
  • File System: FAT 16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media_ Audio
  • AAC Decoding: ACC-LC format __.m4a__ file
  • Flac Decoding
  • USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • DynamicRange(at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 100 dB
  • Channel Separation (at 1kHz): 85 dB

GPS

  • GPS Antenna Type: Micro-strip Planar Aerial
  • Reception Frequency: 1575.42 ±1 MHz
  • Reception Sensitivity: -130 dB Maximum
  • Reception Method: Parallel 12 Channels

BLUETOOTH®

  • BLUETOOTH® Version: Bluetooth V3.0+EDR
  • Output Power: +4 dBm Max. (Power class 2)
  • HFP: HFP (Hands Free Profile)
  • OPP (Object Push Profile)
  • PBAP (Phone Book Access Profile)
  • HSP (Head Set Profile)
  • A2DP: A2DP (Advanced Audio Distribution Profile)
  • AVRCP: AVRCP (Audio/Video Remote Control Profile)
  • SPP (Serial Port Profile)

Sound Tuning

  • Subwoofer Level Adjustment: 0 to +15
  • Subwoofer Phase Setting: 0° or 180°
  • BASS ENGINE SQ: 5Mode, Level 0 to +6
  • HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
  • HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • HighPassFilter (Gain): -12 to 0 dB
  • LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
  • LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • LowPassFilter (Gain): -12 to 0 dB
  • Time Correction: 0.0 - 9.9ms (0.1ms step)
  • Dual HD EQ Front + Rear
  • Parametric Equalizer (Band 1): 20 - 100 Hz
  • Parametric Equalizer (Band 2): 63 - 315 Hz
  • Parametric Equalizer (Band 3): 125 - 500 Hz
  • Parametric Equalizer (Band 4): 250 - 1k Hz
  • Parametric Equalizer (Band 5): 500 - 2k Hz
  • Parametric Equalizer (Band 6): 1k - 4k Hz
  • Parametric Equalizer (Band 7): 2k - 7.2k Hz
  • Parametric Equalizer (Band 8): 5.8k - 12k Hz
  • Parametric Equalizer (Band 9): 9k - 20k Hz
  • Parametric Equalizer (Gain): -14 to +14
  • Application Volume Level Setting: -14 to +14

HDMI Section

  • Input Format 480p/VGA
  • Output Format 480p

General

  • Power Requirement: 14.4 V. DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 4 V / 10k ohms
  • Maximum Mounting Angle: 30°

Dimensions

  • X903D-V447: Fits for Mercedes Vito (447)
  • Chassis Size (W x H x D) mm: 178 x 50 x 164 mm
Alpine
X903D-V447

Specifikke referencer
