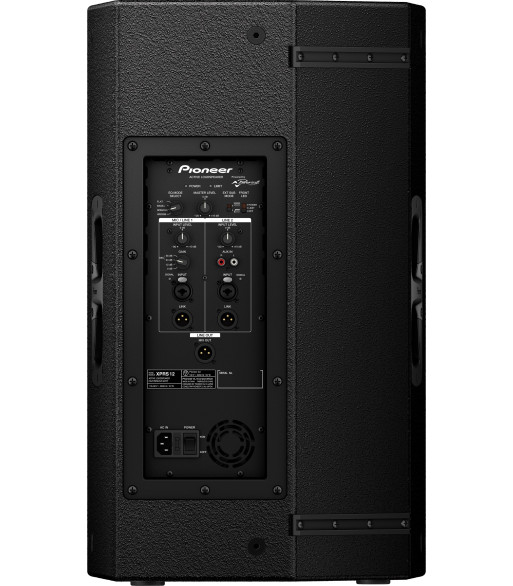

12_ full-range active loudspeaker XPRS 12

10.000,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: XPRS-12

Main Features

What's in the Box

  • XPRS 12 x 1
  • Powerd cord
  • Installation and Operation Manual
  • Important Safety Precautions

Specifications

Supported voltages

  • 100 V (50 Hz/60 Hz)
  • 110 V to 240 V (50 Hz/60 Hz)

Width

380 mm

Height

647 mm

Depth

398 mm

Weight

23.1 kg

Frequency Range

50 - 20000 Hz

System characteristic

Dispersion

90° x 60° (rotatable)

Maximum Sound Pressure

135 dB

Cross Over Frequency

2 kHz

Terminals

Inputs

  • 2 XLR/TRS Combo (balanced)
  • 2 RCA (unbalanced)

Outputs

  • 2 Through output XLR (balanced)
  • 1x Mixed output XLR (balanced)

Amplifier

Amplifier Output

  • Class D
  • 2400W peak / 1200W cont. (LF800W / HF400W)

Impedance

10 k_

Speaker

Driver

  • 12-inch ferrite LF cone driver
  • 1.75 inch titanium diaphragm neodymium compression driver

Finish

  • Black semi-matt textured
  • Impact-resistant

Handle

2 (on both sides)

Pole socket

35 mm socket (0°/7° multi-angle)

Rigging point

12x M10

Enclosure

15 mm birch plywood

Protection

Amplifier Protection

  • Thermal limiting
  • Over-temperature muting
  • Output overcurrent

Driver Protection

  • DC offset removal
  • High frequency stationary loud signals
  • Input voltage limiter (Peak/RMS)

Power unit Protection

  • Primary AC mains overcurrent protection
  • Primary AC mains overvoltage protection
XPRS-12
