. Alpine MRV-F300 ***Udstillingsmodel*** .

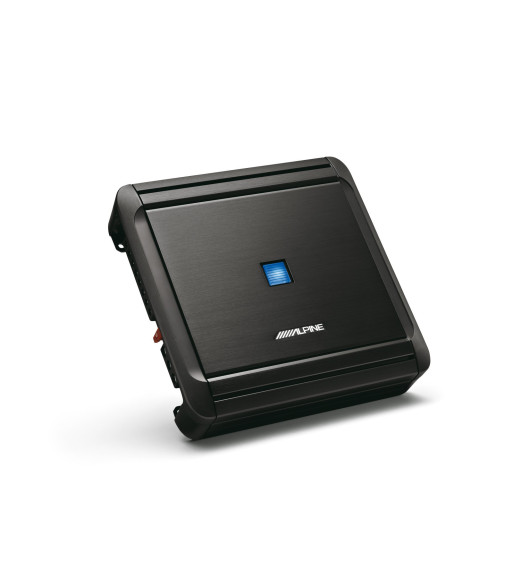

Alpine MRV-F300
search
  • Alpine MRV-F300

Alpine MRV-F300 ***Udstillingsmodel***

1.400,00 kr.
Inkl. moms

4-Kanals forstærker

MRV-F300

Tens of thousands have relied on V-Power amplifiers for dependable, quality power. Now in their fourth generation, V-Power amplifiers carry on this heritage and prove that playing strong never looked our sounded better. Yes, it is possible to improve upon a good thing.

Overview

  • Total Max Power: 640 W
  • 75W RMS x 4 (2_, 14.4V, _1% THD+N)
  • 50W RMS x 4 (4_, 14.4V, _1% THD+N)
  • Same power in a 40% smaller chassis
  • Evolution to Class D digital platform
  • New snap-on terminal covers for easy installation
Antal
Sidste elementer på lager

Ref: Alpine MRV-F300

FEATURES

Install

  • Terminal Layout: Two-Sided
  • Integrated Wire and Mounting Screw Terminals

General

  • Amplifier Type: Class-D (Digital)
  • Channel Design: 4/3/2-Channel
  • Power Supply Design: DC-DC PWM Power Supply
  • Power Supply: MOSFET
  • Pre-Amp Stage: Discrete
  • Final Outputs: Power MOSFET
  • Crossover: Variable Lowpass & Highpass Filter
  • Gain Control: Continuously Adjustable Gain Control
  • Bass EQ
  • Remote Turn On: Remote Sensing Function (for Speaker Level Input)
  • Low-impedance Possibility
  • Current Protection: Over-Current, Over-Voltage, Under-Voltage and Thermal Protection
  • Board Circuitry: S.T.A.R. Circuit
  • RCA Output: Non-Fading Pre-Amp Output (4 Volts)
  • Speaker-Level Inputs: 4-channel Speaker Level Inputs
  • Power Indicator: Top Mounted Blue LED Power Indicator
  • Thermal Control: Multi-stage Power Limits

SPECIFICATIONS

Max Power Output Ratings

  • Total Max Power: 640 W

RMS Power Ratings

  • Per channel into 4 Ohms: 50W RMS x 4 (14.4V at <1% THD+N)
  • Per channel into 2 Ohms: 75W RMS x 4 (14.4V at <1% THD+N)

Sound Tuning

  • Crossover Frequency (LPF/HPF): 50Hz-400Hz , -12dB/oct.
  • EQ (Equalizer): Bass EQ (fc=50Hz) 0 to +12dB for CH-3/4

Dimensions

  • Foot Print (WxHxD) mm: 200 x 55 x 200 mm
  • Heat Sink (WxHxD) mm: 165 x 55 x 200 mm

General

  • Power Requirements: 14.4 V.DC (11-16V allowable)
  • Input Sensitivity (RCA Input): 0.2 - 4.0 V
  • Input Sensitivity (Speaker Level Input): 0.5 - 10 V
  • Input Impedance: >10k ohms
  • Frequency Response (+0, -1dB: 1W into 4 Ohms) for Subwoofer: 20Hz-20kHz
  • THD+N (10W into 4 Ohms): 0.03 %
  • THD+N (10W into 2 Ohms): 0.05 %
  • THD+N (Rated Power into 4 Ohms): 0.08 %
  • THD+N (Rated Power into 2 Ohms): 0.1 %
  • Damping Factor (10W into 4 Ohms at 100Hz): >90
  • Signal to Noise (1W into 4 Ohms): >81 dB
  • Signal to Noise (Rated Power into 4 Ohms): >98 dB
  • Weight: 1.7 kg
Alpine
Alpine MRV-F300
1 Enhed

Specifikke referencer
