. Yamaha XM4080 *** udstillingmodel *** .
  • På tilbud!
  • -1.500,00 kr.

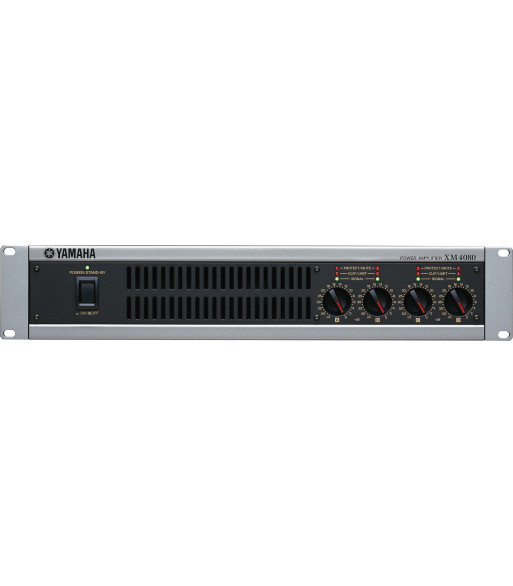

Yamaha XM4080 *** udstillingmodel ***
search
  • Yamaha XM4080 *** udstillingmodel ***

Yamaha XM4080 *** udstillingmodel ***

5.000,00 kr.
3.500,00 kr. Spar 1.500,00 kr.
Inkl. moms

(OBS original kasse medfølger ikke)

4-channel power amplifiers that are an excellent choice for installations.

Antal
På fjernlager

Ref: XM4080

XM4080
Output power; 1kHz4ohms 120W x4
8ohms 90W x4
8ohms; Bridge 240W x2
Output power; 20Hz-20kHz4ohms 115W x4
8ohms 80W x4
8ohms; Bridge 230W x2
70V line -
General specifications
Total harmonic distortion Less than 0.1% (20Hz-20kHz; Halfpower), RL=4ohms
Intermodulation distortion Less than 0.1% (60Hz:7kHz=4:1; Halfpower)
Frequency response +0dB, -0.5dB (RL=8ohms, 20Hz - 20kHz)
S/N ratio 103dB
Crosstalk Less than -60dB
Damping factor More than 100
Voltage gain 26dB
Input sensitivity +4dBu
Maximum input voltage +22dBu
I/O ConnectorsLine input / output ports 4x XLR-3-31, 4x Euroblock
Speaker output ports 4x 5-way binding post
Control ports D-sub 15pin
Processors HPF (20Hz/55Hz/OFF, 12dB/Oct)
Protection circuitLoad protection Power switch on/off mute, DC-fault (Output relay off; Restored automatically), Clip limiting (THD _ 0.5%)
Amplifier protection Thermal (Mute the output; heatsink temp _ 90°C; return automatically), VI limiter (Limit the output, RL _ 2ohms)
Power supply protection Thermal (Amplifier shuts down automatically; Operation not restored automatically; heatsink temp _ 90°C)
Amplifier class EEEngine
Cooling Variable-speed fan
Power requirements Depend on area of purchase; 100V, 120V, 230V or 240V; 50/60Hz
Power consumptionMusic source equivalent 400W
Idling 40W
Stand-by 5W
DimensionsW 480mm; 18-7/8in
H 88mm; 3-7/16in (2U)
D 412mm; 16-1/4in
Net weight 9.8kg; 21.6lbs
Accessories Owner_s manual, AC power cable, Security cover, 4x 3-pin Euroblock connector
Yamaha
XM4080
