Cameo USB to DMX Interface with up to 2048 DMX Channels and Illuminated Control Panel

3.349,00 kr.

Inkl. moms

DVC CUE

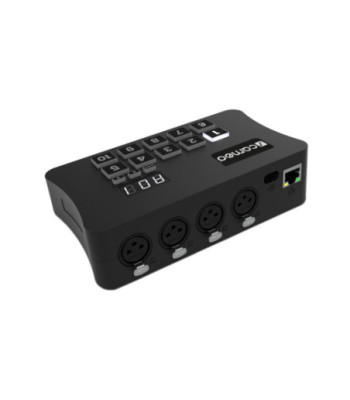

You can conveniently control DMX-compatible lighting devices from your PC and Mac with the Cameo DVC CUE Interface and the associated Cameo software powered by Daslight, In both live and standalone mode, the plug- and-play interface offers you two DMX512 universes, which can be extended to four universes and thus 2048 DMX channels. The interface has a USB-C port for power supply and computer connection, four 3-pin DMX outputs, and an Ethernet port for external control. To use as a stand-alone unit without a computer, you can save pre-programmed scenes on a microSD card and call them up directly on the interface via ten illuminated buttons. The ABC button navigates through five zones, while the arrow keys navigate through 99 scenes. Stand-alone operation requires a commercially available 5 V USB power supply.

Antal

På fjernlager

Ref: CLDVCCUE

Beskrivelse
Produktoplysninger

1024 DMX channels in live mode, 512 DMX channels in stand-alone mode
Expandable from 2 to 4 DMX512 universes (2048 DMX channels)

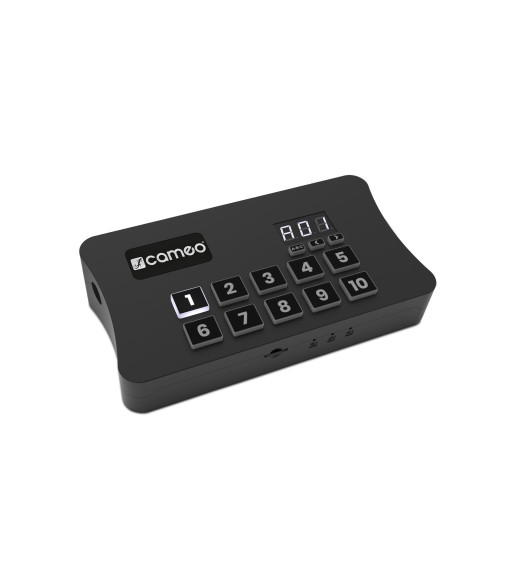

Intuitive backlit keyboard with 10 buttons for direct access
99 scenes across 5 zones and calendar triggering (only possible with optional ESApro 2 software)
USB and Ethernet for programming/control

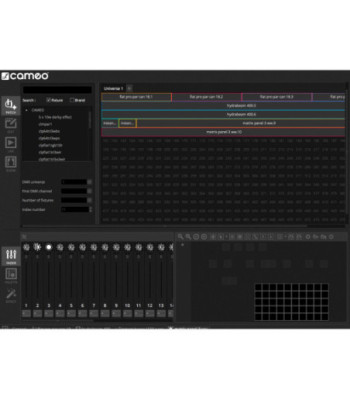

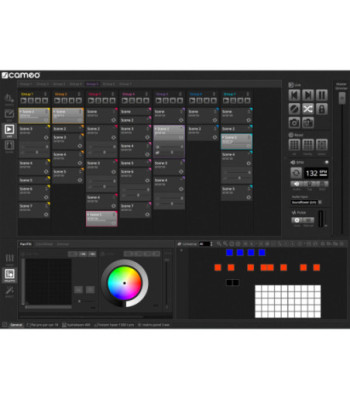

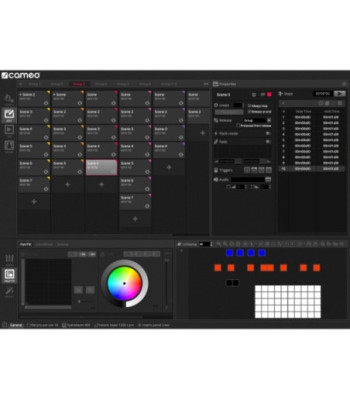

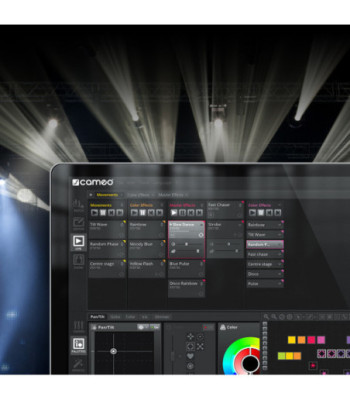

User-friendly, intuitive Cameo DMX software "by Daslight" for Windows and Mac OS X as a free download
Smart Upgrade Technology (SUT)

Product type	USB to DMX Interface
Live channels	1024 channels
Stand Alone channels	512 (upgradeable to 2048)
Software Mode	full Cameo D4 / full Daslight D4
Operating systems	Android
Operating systems	iOS
Operating systems	Mac OS
Operating systems	Windows
Inputs	Ethernet
Inputs	USB-C
Outputs	Ethernet
Memory	microSD
Memory	SDHC (32 GB Max)
Color	grey
Operating voltage	5 - 5.5 V DC 0.6 A
Protection class IP	IP20
Width	160 mm
Height	90 mm
Depth	45 mm
Weight	0,3 kg

Mærker Cameo

Reference CLDVCCUE
