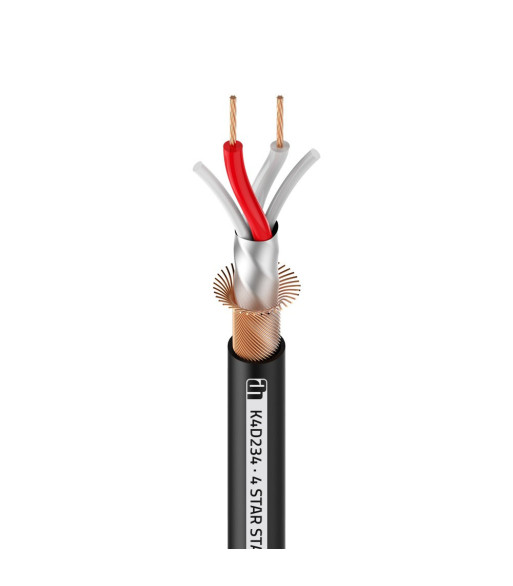

DMX, AES/EBU Cable - 0.34 mm² AWG22 - 100 m - 100 meter

1.169,00 kr.
Inkl. moms
4 STAR DMX 234

The 4 STAR D 234 is perfectly suited for transmission of DMX signals. Our classic with 2 x 0.34 mm² center conductor is also perfect for longer distances, thanks to its bigger cross-section. This highly flexible cable is easy to wind, and thanks to its larger diameter also very robust and therefore also well suited for hard road applications.

Antal
På fjernlager

Ref: K4D234

  • Professional DMX, AES / EBU Cable from our 4 STAR "Standard" SERIES
  • Packaging unit: 100 m in one piece
  • Dense copper spiral shielding for optimum bending behavior
  • Very good capacitance values of 65 pF / m
  • Very narrow diameter of 6.5 mm

Product typeBulk Cable
TypeDMX & AES/EBU Cable
ColorBlack
Overall diameter6.5 mm
AWG22
Center conductor cross section0.34 mm²
Center conductor materialOFC
Center conductor construction7 x 0.25 mm
Number of internal conductors2
ShieldTin-plated copper braided shield
Line surge impedance120 Ohm(s)
Line resistance53 Ohm(s)
Capacitance<65 pF/m
Temperature range- 20 - 70 °C
Weight0.05 kg
Adam Hall Cables
K4D234
