LD Systems 4-Channel Wireless Conference System

13.969,00 kr.
Inkl. moms
U506 CS 4

We have developed the U500® in Germany to meet all of your requirements of a wireless conference system. It offers a professionally equipped solution for effective communication and interaction with advanced technology, excellent speech intelligibility and an elegant appearance. The user-friendly True Diversity UHF system with 60 channels in 6 groups facilitates easier installations and turns conferences, meetings and round tables into successful events.

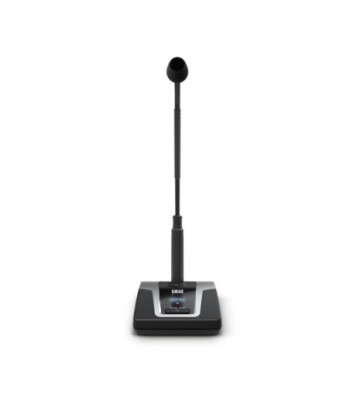

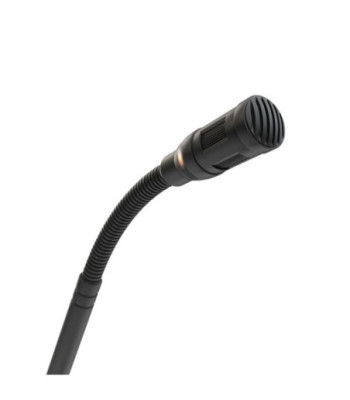

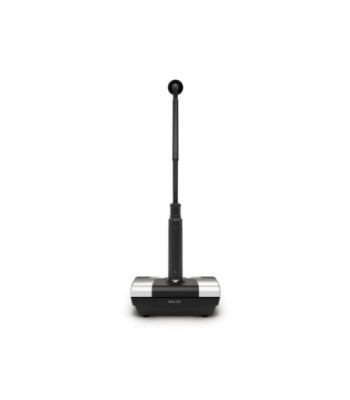

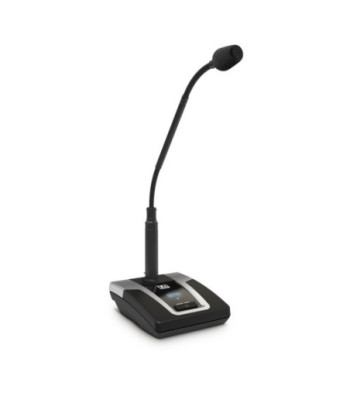

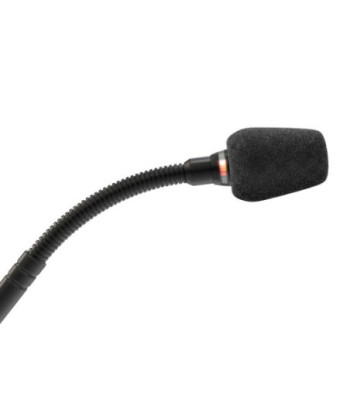

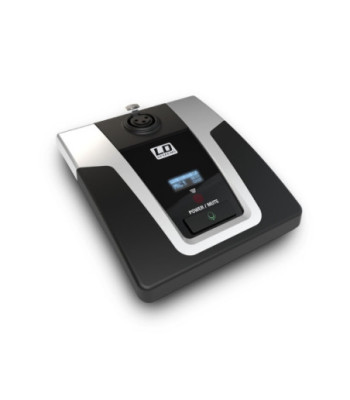

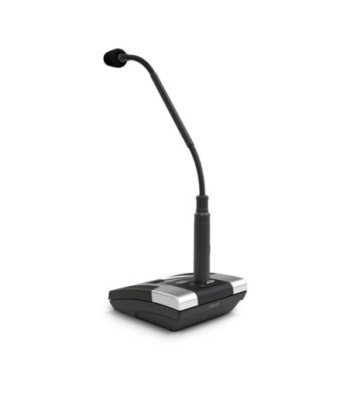

The U500® terminals feature a gooseneck condenser microphone with cardioid characteristic and a light ring to display status. The heavy table stand features an XLR microphone input, 28 V phantom power, an on-off-mute switch, as well as a gain control and a selectable 130 Hz high-pass filter to effectively reduce proximity effect and structure-borne sound. A high-contrast OLED display shows radio frequency, battery status, terminal number, group and channel. The audio transmission range is 60 Hz - 16 kHz.

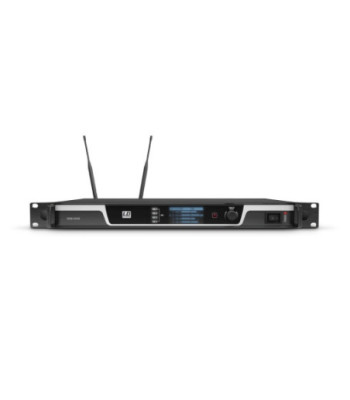

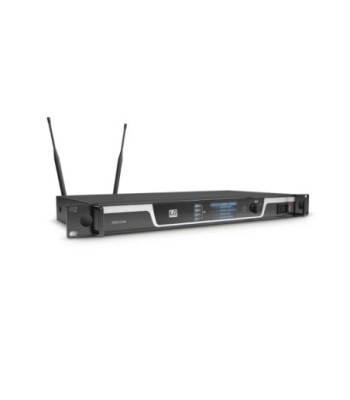

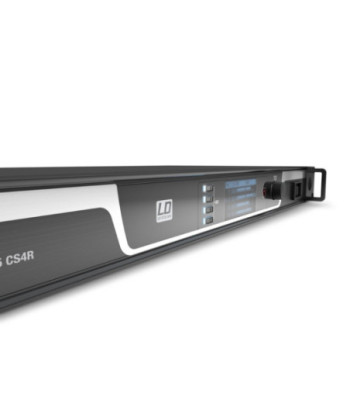

For simple, fast configuration, the 4-channel U500® conference system receiver features automatic frequency and channel scanning, infrared synchronisation, a digital encoder and 4 buttons to directly access the individual channels. The high-contrast OLED display provides a comprehensive overview of all functions and settings such as audio and radio signal strength, and priority and battery status of the terminals. The number of simultaneously-live microphones can be configured in order to eliminate crosstalk, feedback and comb filter effects. Selectable automatic or manual gate settings and a pilot tone ensure that the U500® conference system delivers superb sound quality with excellent noise immunity. In addition to its individual channel outputs, the receiver also has a master output, an access lock to prevent unauthorised adjustment of settings, and the RS-232 interface to facilitate integration into external control systems.

For system expansion, up to five U500® receivers can be cascaded and used in master-slave mode, making a maximum of 20 terminals possible. The U500® conference system is available in three versions which work in the following frequency areas: 554 - 586 MHz, 662 - 694 MHz or 823 - 832 MHz + 863 - 865 MHz

Antal
På fjernlager

Ref: LDU506CS4

  • True diversity UHF wireless conference system
  • Automatic channel scan
  • Automatic frequency search
  • Infrared frequency synchronizing of receiver and microphone unit
  • Pilot tone
  • Priority switching
  • Automatic and manual gate modes
  • Security lock
  • RS-232 interface for external control

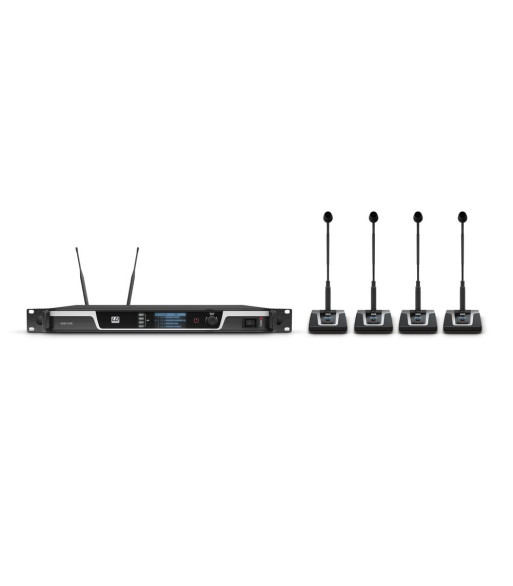

  • Set consisting of: 1 receiver, 4 microphone bases and 4 gooseneck microphones

Product typeConference Systems
Product typeMicrophone Accessories
Transmission frequency range662 - 694 MHz
TypeInstallations
Modulation TypeFM
Transmission frequency range662 - 694 MHz
Channels180 (10 x 18)
Groups10
Channels180 (10 x 18)
Groups10
InputsXLR
Antenna inputs2
Antenna connectorBNC
Frequency response60 - 16000
Signal-to-noise ratio> 100 dB
Frequency response60 - 16000
Noise reductionSquelch
Rated HF output power10 mW
Total Harmonic Distortion (THD)< 0.2 %
Signal-to-noise ratio > 100 dB
ControlsGain
ControlsLow Cut
ControlsPower / Mute
IndicatorsLED
IndicatorsOLED Display

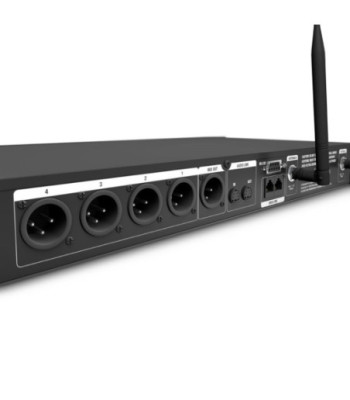

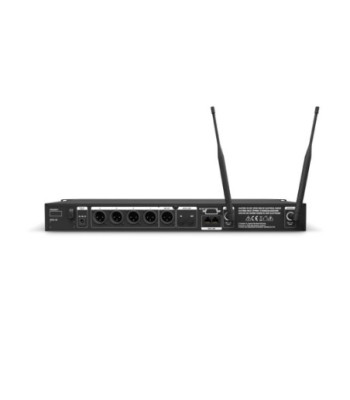

Audio output, balanced4 x XLR
Power supply2 x AA battery
Operating timeup to 8 hrs., battery-dependent
Audio mix output, balancedXLR
Width115 mm
Height54 mm
Depth135 mm
Max. output level+12 dBu
Weight0,73 kg
Controlsdigital encoder
ControlsPower On/Off
ControlsRX 1 - 4 quick access buttons
IndicatorsOLED Display
Operating voltage1,000 mA
Operating voltage12 V DC
Width484 mm
Height44 mm
Depth243 mm
Scope of delivery4 x Conference System Microphone Base
Scope of delivery4 x gooseneck conference microphones
Scope of deliveryReceivers
Weight6 kg
LD Systems
LDU506CS4

Specifikke referencer
